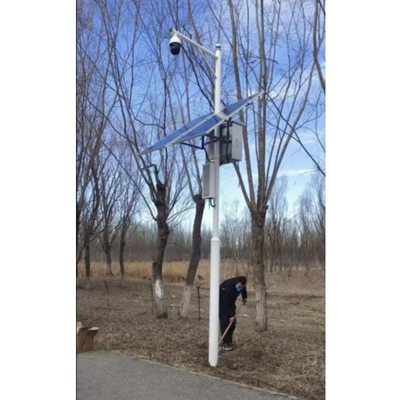

3m 4m 5m Galvanized Steel Pole With Traffic Signal Solar Monitoring CCTV Camera

  • 3m 4m 5m Galvanized Steel Pole With Traffic Signal Solar Monitoring CCTV Camera
Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number CSP-015
Minimum Order Quantity 2
Price USD99-180 per piece
Packaging Details Packing: Carton, foam film, cling film,transparent adhesive
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 2000 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 6m Galvanized Steel Pole With Traffic Signal Solar Panel Material Weldable Structural Carbon Steel Plates Or Pipes
Surface Finish Hot Dip Galvanization Plus Powder Coating(optional) Arms 1 Or 2 Or Customized To Request
Height 8m Or Customized To Requests Applications Traffic Monitor, Public Security CCTV, Parking Lotsurveillance Etc.
Payment Term T/T Or L/C Pole Shape Conical, Tapered, Octangular, Polygonal, Round Etc.
High Light

4m Galvanized Steel Pole

,

Traffic Signal Solar Galvanized Steel Pole
Leave a Message
Product Description

3m 4m 5m 6m Galvanized Steel Pole With Traffic Signal Solar Monitoring CCTV Camera



Feature:



Material: Usually Q235/A36, minimum yield strength ≥ 235n/mm²



Mounting Height: 3m -15m



Shape Of Pole: Round conical; Octagonal conical; Straight square; Tubular stepped; Polygonal



Thickness: 3mm ~ 10mm



Base Plate Mounted: Square or round in shape with slotted holes for anchor bolt and dimension



Ground Mounted: The length buried underground



Surface Treatment: Hot-Dip galvanized following ASTM A123

Color polyester power or any other standard by client required.



Usage: Highway / Roadway / Residential subdivisions / Commercial development





Specifications:



Descriptions Steel poles and cantilever for mounting street lights, CCTV camera, traffic signs and signal lights, LED screen etc.
HS Code 7308900000
Material Low carbon weldable structural steel
Grade GB Q235, Q345, BS4360, ASTM A36 etc.
Yield Strength 235-355MPa
Height 5m to 35m or other specified height
Thickness 4mm to 15mm, depending on height of pole.
Pole Shape Conical/tapered, straight round/cylindrical, square or rectangular, polygonal etc.
Diameter or Dimensions Subject to height of pole and required mechanical properties.
Design Single, dual or multiple straight or curved arms and brackets
Surface Finish Hot dip galvanization plus powder or PVDF coating (optional)
Galvanization 65-100 Microns
Coating 35-80 Microns
Color Silver, grey, black, white, blue, yellow etc.
Applications Roadways, streets, highways, stadiums, public sqaures, airports, railway stations, communities, parking lots, gardens etc.
