8M Galvanized Steel Pole With Double Arm Solar Street LED Light

  • 8M Galvanized Steel Pole With Double Arm Solar Street LED Light
Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number GX-1328
Minimum Order Quantity 100pcs
Price USD40-80 per piece
Packaging Details air bubble sheet package
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 2000 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 8m Solar Street Light Steel Pole Shape Octagonal
Galvanization Standard ISO 1461 2009, ASTM A123 Surface Finish Hot Dip Galvanization Plus Powder Coating(optional)
Color White Blue Color Spraying Welding Method CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
Applications Traffic Monitor, Public Security CCTV, Parking Lotsurveillance Etc. Payment 30% Deposit And 70% Before Shipment
High Light

8M Galvanized Steel Pole

,

Double Arm Galvanized Steel Pole
Leave a Message
Product Description

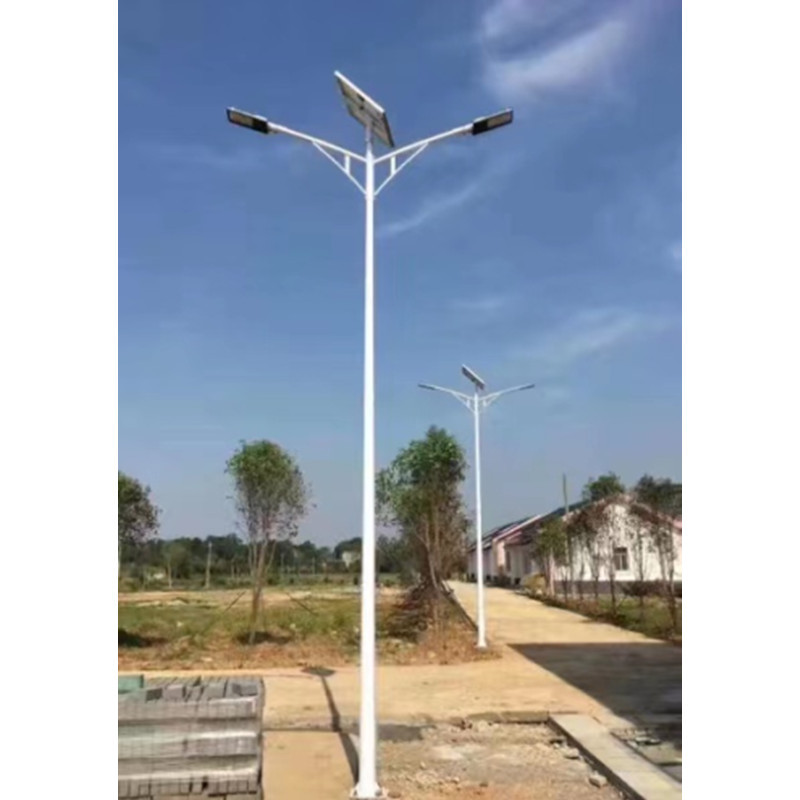

8M Galvanized Steel Pole with Double Arm Solar Street LED Light

Data details of Steel Street Light Poles:

Material: Steel Q235

Height: 8m

Thickness: 3.5mm

Diameter: 80mm/200mm

Plastic Spraying Layer: 100um

Flange Plate: 280mm*280*16mm

Lumbar Type Hole: 24mm*50mm

Lamp Arm: 60mm*3mm*1.5m

Hot-dip galvanizing: 65um average

Solar Panel Support: 20mm*30mm*1.5mm



Specification of Steel Street Light Poles:

Descriptions Steel poles for mounting lights, CCTV camera, guideboards, billboards etc. Double Arm Solar Street Light Pole
Material Low carbon weldable structural steel
Grade GB Q235, Q345, BS4360, ASTM A36 etc.
Yield Strength 235-355MPa
Height 5m to 12m or other specified height
Thickness 4mm to 15mm, depending on height of pole.
Pole Shape Conical/tapered, straight round/cylindrical, square or rectangular, polygonal etc.
Diameter or Dimensions Subject to height of pole and required mechanical properties.
Design Single, dual or multiple straight or curved arms and brackets
Surface Finish Hot dip galvanization plus powder or PVDF coating (optional)
Galvanization 65-100 Microns
Coating 35-80 Microns
Color Silver, grey, black, white, blue, yellow etc.
Applications Roadways, streets, highways, stadiums, public sqaures, airports, railway stations, communities, parking lots, gardens etc.

Feature of Steel Street Light Poles:

1. Octagonal poles are generally some continuously taper octagonal cross-section (can be customized for other sided also) that have one or more segment. On top, it has a bracket to mount the luminary or lines.



2. Octagonal Poles are used to illuminate private residential areas, commercial and industrial locations securely.



3. Steel pole range is designed with an outreach arm, in either single or double arrangement, as per customer specifications.



4. The octagonal light poles are immensely used for street, stadium, residential lighting structures. The design of an octagonal pole is planned and structured, considering the wind resistance and the workability of the arrangements.



5. The tapered round pole range is standard base plate mounted



6. All poles are hot-dip galvanized and can be powder coated or painted



7. All pole accessories such as luminaries cross arms, adaptors, head-frames, platforms, Lad SAF system, climbing rungs and lightning protection rods are available.



8. Extra access doors for the larger tapered round poles



9. Security or tamper-proof screws for access door covers.



10. The product data sheet represents the standard range, but other heights and section sizes can be custom designed to meet specific requirements.



11. Slip joint assembly required for poles over 11 meters in height.
