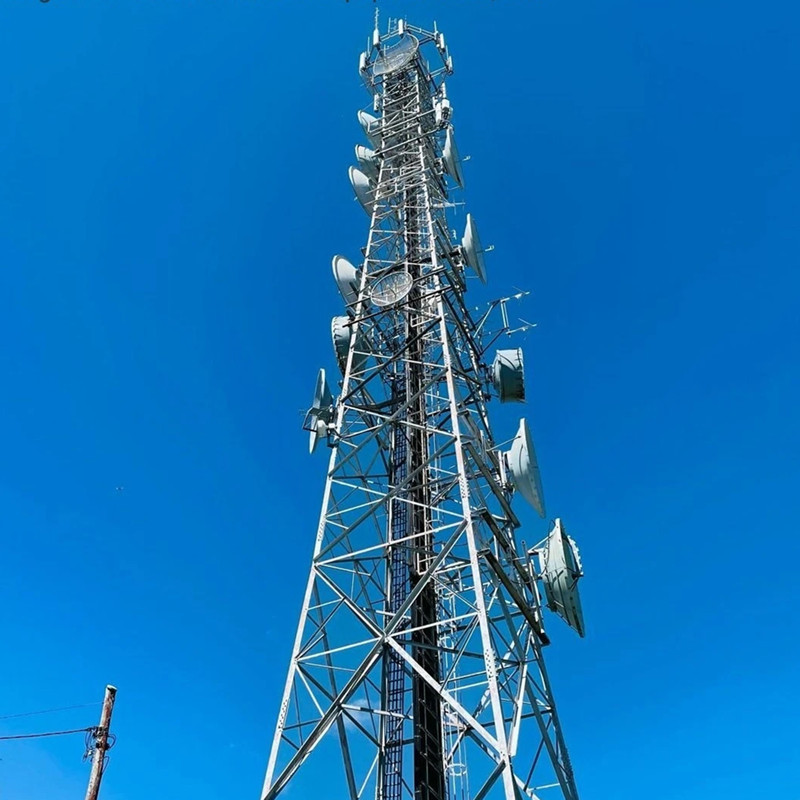

50m HDG Steel Lattice Telecom Tower Against Earthquake
| Place of Origin | Guangzhou |
|---|---|
| Brand Name | Guangxin |
| Certification | ISO9001 |
| Model Number | GX-563G |
| Minimum Order Quantity | 1set |
| Price | USD1880-2100 |
| Packaging Details | Cotton sheets or cloth package by bundle |
| Delivery Time | 20-30days |
| Payment Terms | Western Union, L/C, T/T |
| Supply Ability | 300ton/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 50m HDG Steel Lattice Telecom Tower Guangzhou | Material | Steel Q355B(GB/T 1591) |
|---|---|---|---|
| Hot-dip Galvanization | ISO 1461 2009, ASTM A123 | Steel Structure | HDG Lattice Tower |
| Design Of Pole | Against Earthquake Of 8 Grade | Tension Strength (Mpa) | 360~510 |
| Design Wind Speed | 80/220kph | Connection Type | Nuts & Bolts |
| Tower Type | 3 Legs 4 Legs Angular / Tubular | Shipping Port | Huangpu Or Yantian/Shekou |
| High Light | Steel Lattice Telecom Tower,50m HDG Steel Lattice Telecom Tower,Lattice Telecom Tower Against Earthquake |
||
Product Description
50m HDG Steel Lattice Telecom Tower Guangzhou
Telecommunication 4 Legs tubular tower is designed to self supporting mobile networking, wireless communication, television antennas, and radio broadcasting. The most common heights manufactured are between 10m to 100m but may extend beyond that depending on the requirement. Tower design wind speed can be between 120 to 220 km/h and antenna deflection limit: 0.5 to 2 degree.
Tower structural steel design is calculated according most recent International Standard (EIA, Eurocode, NV65, BS). Tower materials specification will be as following:
• High Tensile Steel is according to EN10025. S355J0 or equivalent steel is according to EN10025. S235JR (equivalent to 43B), ASTM A36 grade 36 or equivalent.
• Bolts are according to DIN931 and 931.
• All structure Components are hot dip galvanized according to EN ISO 1461.
• Anchor bolts are according to DIN 976.
Specification of 50m telecom Tower:
| Material | Tubular Steel, Angle steel plates, Flat steel plate |
| Steel Type | Weldable low carbon structural steel |
| Steel Grade | GB Q235, Q345, BS 4360, ASTM A36 etc. |
| Yield Strength | Fy≥235MPa |
| Tensile Strength | Fu≥400MPa |
| Elongation | σ≥20% |
| Surface Finish | Hot dip galvanization |
| Galvanized layer | T≥65μm |
| Height | 20m to 100m, customized to requests |
| Design | 4 legs self-supporting or free standing lattice tower |
| Structure | 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices. |
| Supply mode | CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down) |
| Fixing/Fastening | Bolts and nuts, connecting plates |
| Configuration | Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc. |
| Wind Load | 0.35-1.0kN/sqm |
| Lifespan | 20-50 years |
| Warranty | 5 years |
| Applications | GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations. |
