Galvanized Steel Telecom RDS Tower ASTM A123 355MPa Yield Strength

Place of Origin Guangzhou
Certification ISO9001
Model Number RDS-005
Minimum Order Quantity 1set
Price USD1880-2100
Packaging Details Steel bands or wires by bundle
Delivery Time 20-30days
Payment Terms Western Union, L/C, T/T
Supply Ability 300ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand Name Guangxin Product Name Hot-dip Galvanized Steel Mobile Phone Tower
Hot-dip Galvanization ISO 1461 2009, ASTM A123, BS729 Yield Strength (Fy) 235-355MPa
Design Wind Speed 30-50m/s, Can Customized As Buyer's Requirements Tower Type Tubular Tower, Mono Pole Tower, Angle Towers
Design Wind Load 0.35-1.2KN/M² Work Platform Height And Quantity Up To Clients
Connection Type Nuts & Bolts Service Life 50 Years
High Light

Galvanized Steel Telecom RDS Tower

,

ASTM A123 RDS Tower

,

Mobile RDS Tower

Leave a Message
Product Description

Rapid Deployment Site (RDS) Galvanized Steel Mobile Telecommunications Tower

Galvanized Steel Self-support Mast Rapid Deployment Site (RDS) Telecom Tower



RDS tower is designed for quick foundation construction and tower erection, with a heavy duty steel foundation which is composed of high quality steel blocks and profiles by welding or bolting, it's very easy to erect the tower on site, saving a lot of time for erection and very easy to remove and rebuild the tower.



Self supporting tower usually is 3-leg of 4-leg tower, and its material is steel pipe or angle steel. As for the connection, tubular tower is connected by flange, and angle steel tower is connected by nuts and bolts.



Features of Mobile Communication Tower:



1. Small coefficient of wind load, strong wind resistance.
2. Save land resource, convenient location.
3. Convenient transportation and installation.

4. According to the customers’ choice, the ladder can be placed inside or outside.

5. With advanced international design concept and calculation method, tower slope can be adjusted in accordance with geology and climate.

6. Convenient and safe to install, small area covering, and easy to select site.

Galvanized Steel Telecom RDS Tower ASTM A123 355MPa Yield Strength 0

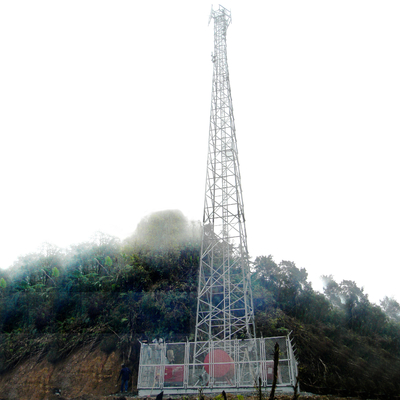

                                45m Galvanized Steel telecom tower erected in Philippines





Specification of Mobile Communication Tower:



Material Tubular Steel, Angle steel plates, flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.




Galvanized Steel Telecom RDS Tower ASTM A123 355MPa Yield Strength 1

                                                 RDS tower foundation



Guangzhou Guangxin Telecommunication Equipment Co.,Ltd. is a large scale manufacturer of telecommunications and traffic facilities, including telecommunicationi monopoles and towers, street light poles and towers, power gride&electricity wire towers, lighting protection poles, artificial bionic tree for camouflaged telecommunication, CCTV camera poles and high masts, guideboards poles, billboards and led display gantry frames, ETC toll gate frames and other steelworks. Many projects we supplies have won parter reputation, awards and approvals from the users and customers. We are supplying the steelworks for 5G infrastructures, smart city and safe traffic facilities, civil contruction and developing many other fields.





FAQ

1. Is the tower's structure unitary?
No, we can design and produce it as customer's request.
2. Manufacturer or trade company?
We are manufacturer and have own factory, and welcome to visit our factory.
3. Delivery time?
Usually, within 20 days. And we produce and ship product according to buyer’s request.
