10m Q235 Solar Street Light Poles For Countryside Rural Sites

  • 10m Q235 Solar Street Light Poles For Countryside Rural Sites
Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number GX-1326
Minimum Order Quantity 100pcs
Price USD40-80 per piece
Packaging Details air bubble sheet package
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 2000 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Electric Power Pole Shape Octagonal
Galvanization Standard ISO 1461 2009, ASTM A123 Surface Finish Hot Dip Galvanization Plus Powder Coating(optional)
Color Grey Color Painting Welding Method CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
Applications Traffic Monitor, Public Security CCTV, Parking Lotsurveillance Etc. Transportation By Sea To Clients Destination Port
Payment 30% Deposit And 70% Before Shipment
High Light

Steel Q235 Street Light Poles

,

10m Solar Street Light Post

,

ASTM A36 Solar Powered Light Poles
Leave a Message
Product Description

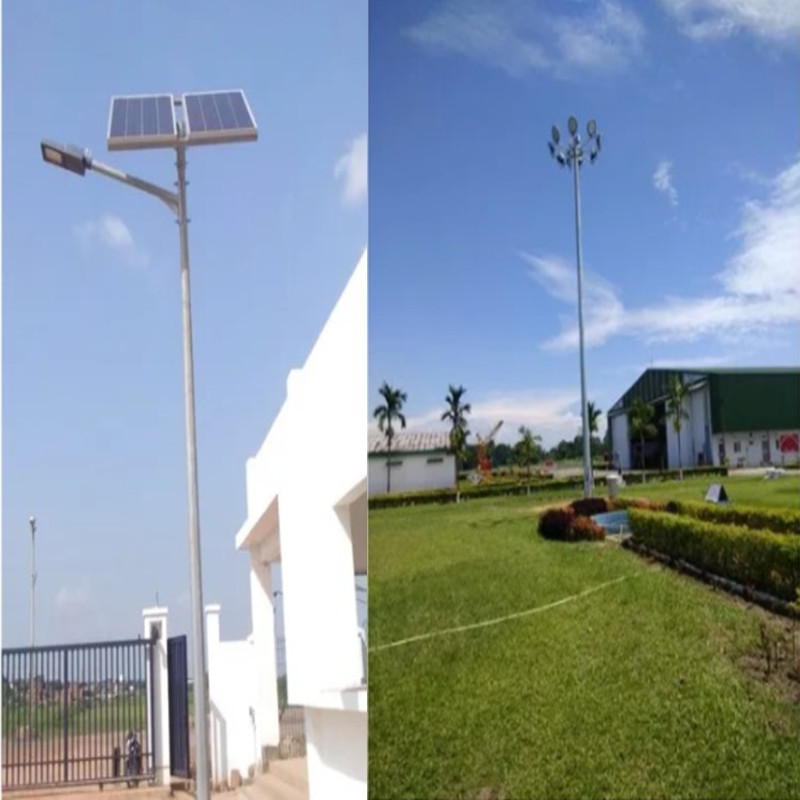

Solar Steel Street Light Poles for Countryside Rural Sites

Data details of Steel Street Light Poles:

Material: Steel Q235

Height: 10m

Thickness: 4mm

Diameter: 80mm/200mm

Plastic Spraying Layer: 100um

Flange Plate: 300mm*300*18mm

Lumbar Type Hole: 24mm*50mm

Lamp Arm: 60mm*3mm*1.5m

Hot-dip galvanizing: 65um average



Material: Steel Q235

Height: 8m

Thickness: 3.5mm

Diameter: 80mm/200mm

Plastic Spraying Layer: 100um

Flange Plate: 280mm*280*16mm

Lumbar Type Hole: 24mm*50mm

Lamp Arm: 60mm*3mm*1.5m

Hot-dip galvanizing: 65um average

Solar Panel Support: 20mm*30mm*1.5mm



Specification of Steel Street Light Poles:

Descriptions Steel poles for mounting lights, CCTV camera, guideboards, billboards etc. Double Arm Street Light Pole
Material Low carbon weldable structural steel
Grade GB Q235, Q345, BS4360, ASTM A36 etc.
Yield Strength 235-355MPa
Height 5m to 12m or other specified height
Thickness 4mm to 15mm, depending on height of pole.
Pole Shape Conical/tapered, straight round/cylindrical, square or rectangular, polygonal etc.
Diameter or Dimensions Subject to height of pole and required mechanical properties.
Design Single, dual or multiple straight or curved arms and brackets
Surface Finish Hot dip galvanization plus powder or PVDF coating (optional)
Galvanization 65-100 Microns
Coating 35-80 Microns
Color Silver, grey, black, white, blue, yellow etc.
Applications Roadways, streets, highways, stadiums, public sqaures, airports, railway stations, communities, parking lots, gardens etc.

Feature of Steel Street Light Poles:


1. Mast material:ASTM A572 GR65/Q345/Q235/GR50

2. Mast structure: 8/12/16/20 sided/Round conical
3. Anti-corrosion protection: hot dip galvanization/hot dip galvanization and powder coating

4. Brackets:Single or double brackets are in the shape and dimension as per customers requirement

5. Welding:Welding confirms with international welding standard of CWB

6. Mast assembly: no welding on site/slip joint

7. Base plate mounted:Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement

8. Galvanizing Or Powder Coating:Hot dip galvanization with thickness of 80-100µm average

9. Ground mounted:The length buried underground as per customers requirement



FAQ



1. Is the Pole's structure unitary?
No, we can design and produce it as customer's request.


2. Manufacturer or trade company?
We are manufacturer and have own factory, and welcome to visit our factory.


3. Delivery time?
Usually, within 20 days. And we produce and ship product according to buyer’s request.


4. How long does the service life for steel pole?
We can assured more than 20 years’ service life.


5. For assembly, is it very complex and is there a assembly book or guidance?
We will provide assembly drawing with shipping the cargo.
