45m Galvanized Steel Q345 Lattice Tower for Signal Antenna

  • 45m Galvanized Steel Q345 Lattice Tower for Signal Antenna
Place of Origin Guangzhou
Certification ISO9001
Model Number GX-5628G
Minimum Order Quantity 1set
Price USD1880-2100
Packaging Details Cotton sheets or cloth package by bundle
Delivery Time 20-30days
Payment Terms Western Union, L/C, T/T
Supply Ability 300ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand Name Guangxin Product Name Self Standing 4g 5g Tower Galvanized Steel
Hot-dip Galvanization ISO 1461 2009, ASTM A123 Design Wind Speed 30-50m/s, Can Customized As Buyer's Requirements
Tower Type Tube Towers, Mono Pole Tower, Angle Towers Design Wind Pressure 0.3-1.2KN/M²
Work Platform Height And Quantity Up To Clients Connection Type Nuts & Bolts
Place Of Original Guangzhou Design Of Pole Against Earthquake Of 8 Grade
High Light

3 Legged Telecom Steel Tube Tower

,

45m Q345 Lattice Steel Tower

,

Customized Galvanized Steel 5g Tower
Leave a Message
Product Description

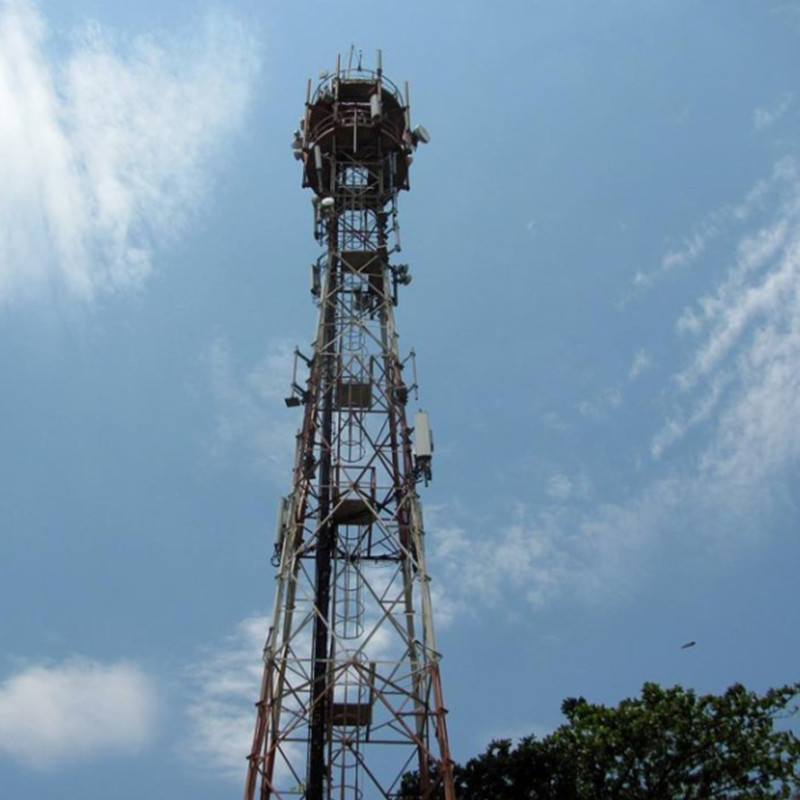

45m Galvanized Steel Q345 Lattice Tower Signal Antenna





Feature of Lattice Tower



Manufactory supplied self supporting 3 legged telecom steel tube tower are made of steel tube, designed on a tubular base pattern. The communication tower is optimized for medium to heavy loads which is used for standard cellular sites. 3 Legs Tubular High Quality 60m Telecommunication Steel Tower can be equipped with a variety of accessories, such as work or rest platforms, antenna mounts, safety devices,obstruction lights, lightning protection kit and more. All of the accessories can be installed at any desired height and orientation according to customer requirement.



The bottom cabinet sections are arranged in the tower bottom. The cabinet sections are connected to the generator and the top cabinet in the nacelle via power and control cables.



At the tower top the cables are routed through a cable loop. It allows the nacelle to turn several times in each direction without damaging the cables. The power cables between WTG and grid are routed through conduits.



The tower is protected against corrosion with a special sandblasting procedure and by applying an epoxy resin coating to the tower surface.

The foundation is project-specific, depending on the ground conditions and the local rules and regulations.





Specification of Lattice Tower:



Material Tubular Steel, Angle steel plates, Flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.








Why Choose Us



1.You can save plenty of money. (Our products are high-quality, their survice life usually more than 50 years.)


2. You can save lots of time. (We try our best to serve customers and reply within 12 working hours.)


3. You don't have any worry. (We have our own producing and designing team, impeccable after-sales service.)


4. You are wise. (We can give you the most reasonable price without agent or intermediary.)





Customer Support Services

  • We re specialized in the production, design, installation and maintenance of beautification tower, bionic tree communications tower, camouflaged antenna tower, communication tower, telecommunication tower, single tube tower, etc.



  • We undertake the design, manufacturing and construction of all kinds of steel structure.



  • Our company has rich experience more than 20 years and has 10 senior engineers and five professional production lines.



  • Fast delivery time 20 days,high efficient supply ability 1000 tons monthly, so we are sure to deliver your goods strictly as you required and meet your order quantity to the fullest.
