Galvanization Signal Antenna Transmission Lattice Tower With Bolts / Nuts

Place of Origin Guangzhou
Certification ISO9001
Model Number GX-5627G
Minimum Order Quantity 1set
Price USD1880-2100
Packaging Details Cotton sheets or cloth package by bundle
Delivery Time 20-30days
Payment Terms Western Union, L/C, T/T
Supply Ability 300ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Brand Name Guangxin Product Name Self Standing Steel Lattice Tower 3 Legged Tubular
Hot-dip Galvanization ISO 1461 2009, ASTM A123 Design Wind Speed 30-50m/s, Can Customized As Buyer's Requirements
Tower Type Tube Towers, Mono Pole Tower, Angle Towers Design Wind Pressure 0.3-1.2KN/M²
Work Platform Height And Quantity Up To Clients Connection Type Nuts & Bolts
Place Of Original Guangzhou Design Of Pole Against Earthquake Of 8 Grade
High Light

Q345 Steel Transmission Lattice Tower


ISO9001 Approved Tubular Steel Tower


Tubular Steel Tower Customized

Leave a Message
Product Description

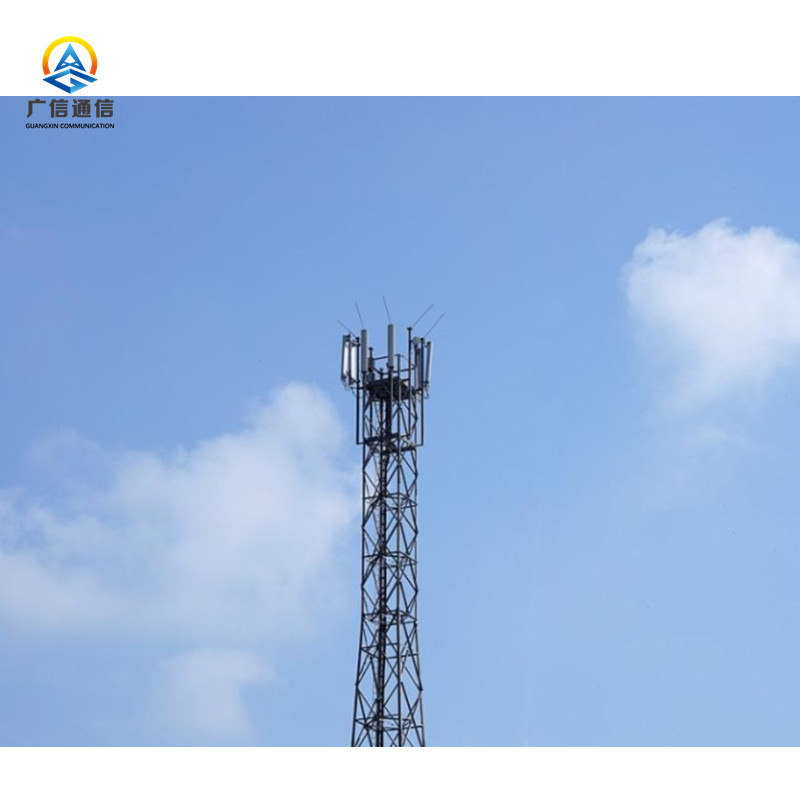

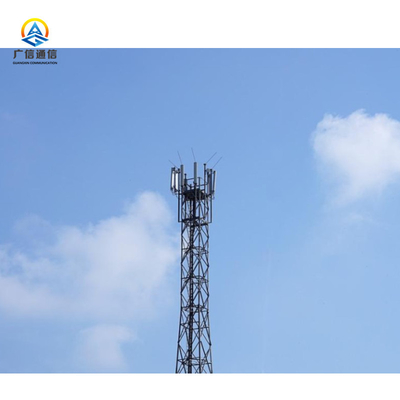

Signal Antenna Transmission Lattice Tower With Bolts / Nuts



Feature of Transmission Lattice Tower


The tubular steel tower consists of up to four sections, joint by means of bolted flanges. The tower is built on the foundation using anchor bolts, which set into concrete at the foundation.


The tower can be climbed from the inside and is equipped with working platforms and a ladder with fall protection system. Optionally, a service lift or climbing assistance can be installed.


The bottom cabinet sections are arranged in the tower bottom. The cabinet sections are connected to the generator and the top cabinet in the nacelle via power and control cables.


At the tower top the cables are routed through a cable loop. It allows the nacelle to turn several times in each direction without damaging the cables. The power cables between WTG and grid are routed through conduits.


The tower is protected against corrosion with a special sandblasting procedure and by applying an epoxy resin coating to the tower surface.

The foundation is project-specific, depending on the ground conditions and the local rules and regulations.


Specification of Transmission Lattice Tower:


Material Tubular Steel, Angle steel plates, Flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.
