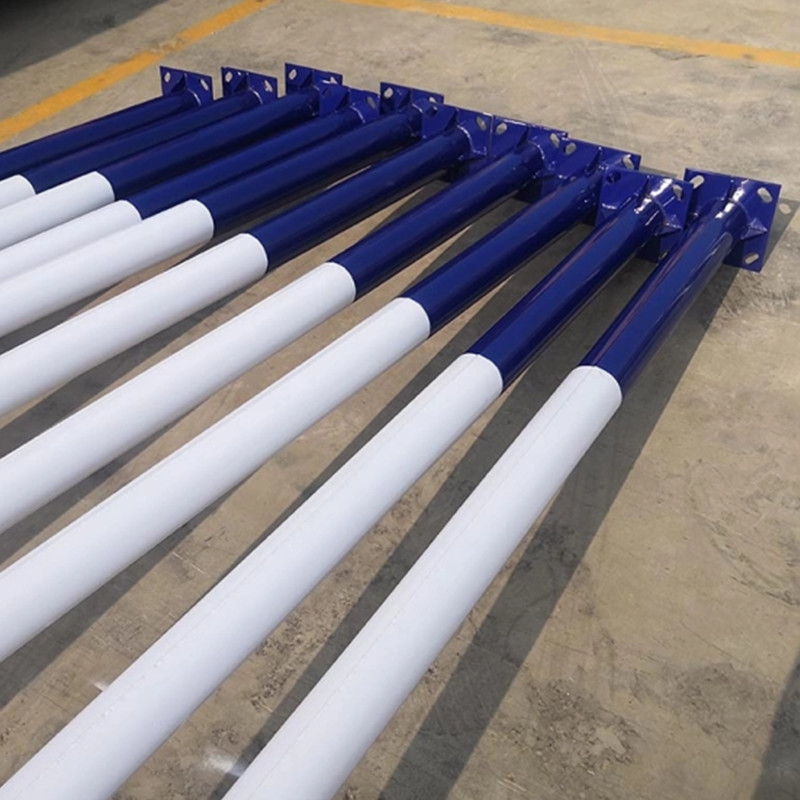

10m Solar Street Road Metal Light Pole CO2 Shielded Arc Welding

  • 10m Solar Street Road Metal Light Pole CO2 Shielded Arc Welding
Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number GX-1321
Minimum Order Quantity 100pcs
Price USD40-80 per piece
Packaging Details air bubble sheet package
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 2000 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 10m Solar Street Road Metal Light Pole Specification Surface Finish Hot Dip Galvanization Plus Powder Coating(optional)
Galvanization Standard ISO 1461 2009, ASTM A123 Welding Method CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
Pole Shape Conical, Tapered, Octangular, Polygonal, Round Etc. Arms 1 Arms Or 2 Arms Or ODM
Color White Color Powder Coating Transportation By Sea To Clients Destination Port
High Light

Solar Street Road Metal Light Pole

,

10m Metal Light Pole

,

Arc Welding Galvanised Street Light Pole
Leave a Message
Product Description

10m Solar Street Road Metal Light Pole Specification



Data details:

Height: 10m

Thickness: 4mm

Diameter: 80mm/200mm

Material: Steel Q235

Hot-dip galvanizing: 80um

Plastic Spraying Layer: 100um

Flange Plate: 300mm*300*18mm

Lumbar Type Hole: 24mm*50mm

Lamp Arm: 60mm*3mm*1.5m

Solar Panel Support: 20mm*30mm*1.5mm



Specification:

Descriptions Steel poles for mounting lights, CCTV camera, guideboards, billboards etc. Double Arm Street Light Pole
Material Low carbon weldable structural steel
Grade GB Q235, Q345, BS4360, ASTM A36 etc.
Yield Strength 235-355MPa
Height 5m to 12m or other specified height
Thickness 4mm to 15mm, depending on height of pole.
Pole Shape Conical/tapered, straight round/cylindrical, square or rectangular, polygonal etc.
Diameter or Dimensions Subject to height of pole and required mechanical properties.
Design Single, dual or multiple straight or curved arms and brackets
Surface Finish Hot dip galvanization plus powder or PVDF coating (optional)
Galvanization 65-100 Microns
Coating 35-80 Microns
Color Silver, grey, black, white, blue, yellow etc.
Applications Roadways, streets, highways, stadiums, public sqaures, airports, railway stations, communities, parking lots, gardens etc.
