Parking Road Driveway Commercial Light Poles 5m Height Q345 Grade

Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number GX-1310
Minimum Order Quantity 100pcs
Price USD40-80 per piece
Packaging Details air bubble sheet package
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 2000 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Parking Road Driveway Commercial Light Poles Surface Finish Hot Dip Galvanization Plus Powder Coating(optional)
Galvanization Standard ISO 1461 2009, ASTM A123 Color Grey Color Painting
Welding Method CO2 Shielded Arc Welding & Submerged Arc Welding(SAW) Pole Shape Conical, Tapered, Octangular, Polygonal, Round Etc.
Arms 1 Arms Or Customized ODM Welding Standard AWS D1.1
Grade Of Bolts And Nuts Grade 4.8, 6.8, 8.8 Applications Traffic Monitor, Public Security CCTV, Parking Lotsurveillance Etc.
Transportation By Sea To Clients Destination Port
High Light

Parking Road Commercial Light Poles

,

5m Height Commercial Light Poles

,

Q345 Galvanised Street Light Pole

Leave a Message
Product Description

Parking Road Driveway Commercial Light Poles



Features:

1.The steel light poles are designed with single, dual or multiple arms.

2. Brackets for mounting lamps, solar panels, CCTV cameras or other facilities as per requests.

3. The designs of arms and brackets are also customized to requirements for different connectors of luminairs or other facilities.

4. With custom special designs, the light poles are not only used for lighting, monitoring or traffic signal control but also for city landscape decorations.

5. The popular steel light poles include tubular steel pole, solar street light pole, conical or tapered light pole, hexagonal or polygonal lighting pole, straight round street light pole and octagonal lighting pole.

6. There are 2 ways of installation of the steel poles, one is directly buried and the other way is fixed by base plate with bolts and nuts.

7. Application:
Roadways, streets, highways, stadiums, public sqaures, airports, railway stations, communities, parking lots, gardens etc.





Specification:

Descriptions Steel poles for mounting lights, CCTV camera, guideboards, billboards etc. Double Arm Street Light Pole
Material Low carbon weldable structural steel
Grade GB Q235, Q345, BS4360, ASTM A36 etc.
Yield Strength 235-355MPa
Height 5m to 12m or other specified height
Thickness 4mm to 15mm, depending on height of pole.
Pole Shape Conical/tapered, straight round/cylindrical, square or rectangular, polygonal etc.
Diameter or Dimensions Subject to height of pole and required mechanical properties.
Design Single, dual or multiple straight or curved arms and brackets
Surface Finish Hot dip galvanization plus powder or PVDF coating (optional)
Galvanization 65-100 Microns
Coating 35-80 Microns
Color Silver, grey, black, white, blue, yellow etc.
Applications Roadways, streets, highways, stadiums, public sqaures, airports, railway stations, communities, parking lots, gardens etc.



Parking Road Driveway Commercial Light Poles 5m Height Q345 Grade 0

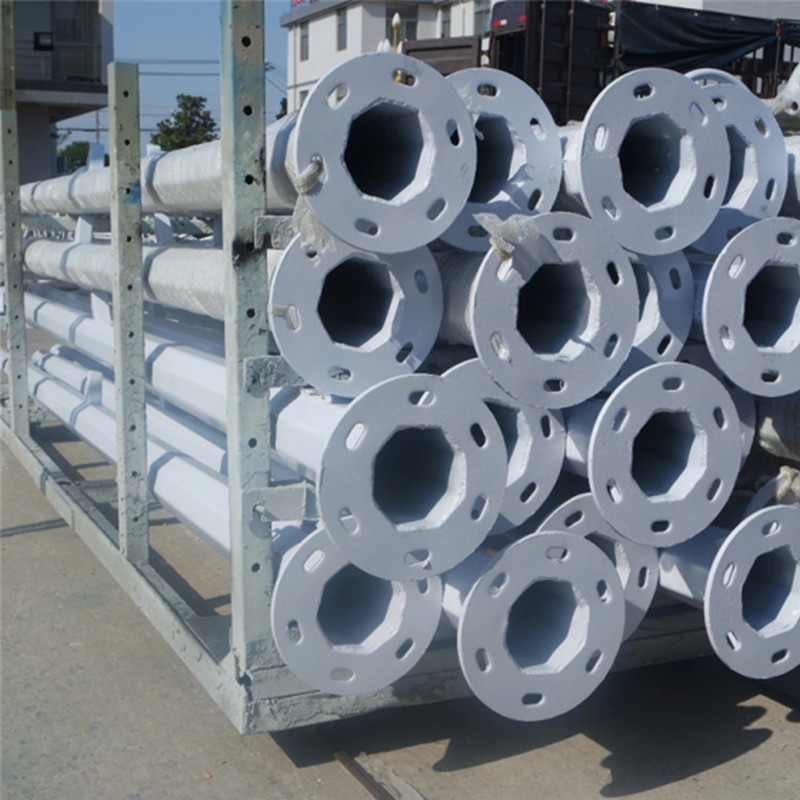

 Galvanized Steel Lighting Pole with Cotton Band package
