High Mast Light Fixtures Steel Lighting Pole For Roadways Streets Highways

Place of Origin Guangzhou, China
Model Number GX-15Y79
Minimum Order Quantity 100pcs
Price USD60-80 per piece
Packaging Details Plastic Bubble sheets and pearl wool sheets
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 5000pcs monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Certification ISO9001:2008 SGS COC Name High Mast Light Fixtures Steel Lighting Pole
Surface Finish Hot Dip Galvanization And Powder Or PVDF Coating Material Certificate Q345B
Wind Speed 50-260m/s Tension strength (Mpa) 360~510 Or 470~630
Grade Q235B, Q345B Or Specified Steel Color White, Silver, Grey Or Specified Colors
Shape Tapered, Conical, Octagonal, Square, Cylinder Joint Of Poles Insert Mode,inner Flange Mode,face To Face Joint Mode
Allowable Deflection 0.5 ~1.0 Degree @ Operational Speed
High Light

Q345B Highways Steel Lighting Pole


ISO9001 High Mast Light Pole


Q345B High Mast Steel Lighting Pole

Leave a Message
Product Description

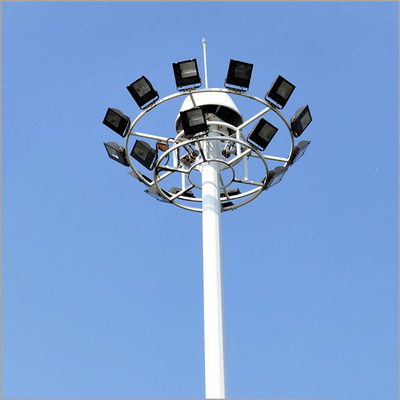

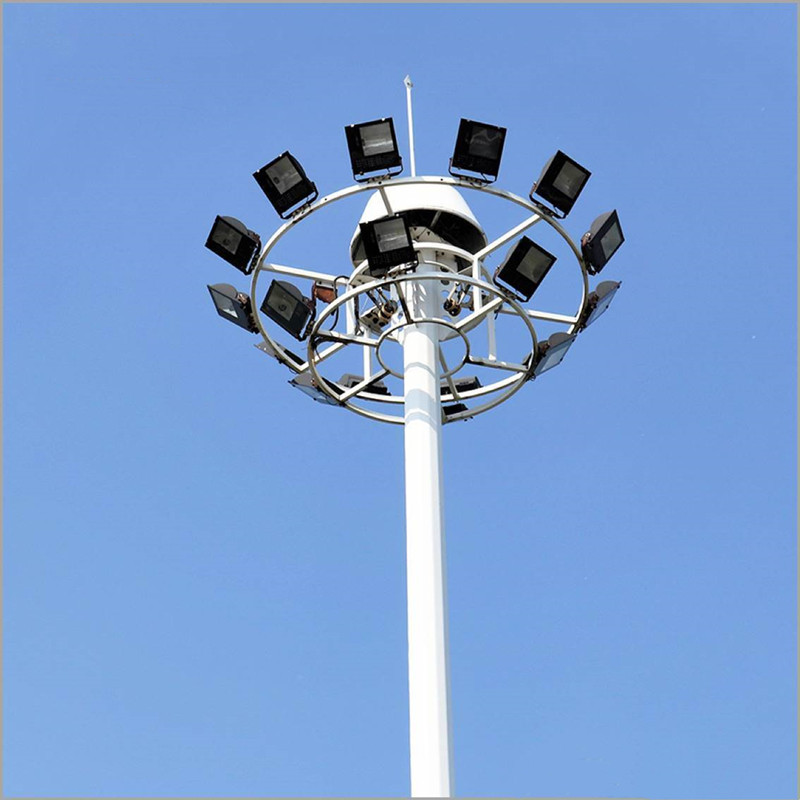

High Mast Light Fixtures Steel Lighting Pole



High Mast Light Fixtures Steel Lighting Pole For Roadways Streets Highways 0



Descriptions Galvanized Steel street / roadway / highway / stadium / Utility / area Light Pole
HS Code 7308900000
Material Low carbon weldable structural steel
Grade GB Q235, Q345, BS4360, ASTM A36 etc.
Yield Strength 235-355MPa
Height 5m to 35m or other specified height
Thickness 4mm to 15mm, depending on height of pole.
Pole Shape Conical/tapered, straight round/cylindrical, square or rectangular, polygonal etc.
Diameter or Dimensions Subject to height of pole and required mechanical properties.
Design Single, dual or multiple straight or curved arms and brackets
Surface Finish Hot dip galvanization plus powder or PVDF coating (optional)
Galvanization 65-100 Microns
Powder Coating 35-80 Microns
Color Silver, grey, black, white, blue, yellow etc.
Applications Roadways, streets, highways, stadiums, public sqaures, airports, railway stations, communities, parking lots, gardens etc.



Structural & Steel Products is known throughout the industry as a leading source of superior quality high mast lighting poles. Our poles are manufactured to strict standards for federal, DOT highway and municipal roadway lighting projects. You will find our high mast poles used for schools, sports lighting & stadiums, parking lots, construction sites, airports and port authorities throughout our sales territory of mainland of China and Oversea Countries.

  • Designed according to Customer's requirement
  • Accommodate most lowering device manufacturer’s equipment
  • Sizes up to 40m height
  • Customized to customers specifications
  • Galvanized or painted for superior corrosion resistance
  • Proven quality and reliability
  • Outstanding customer service
