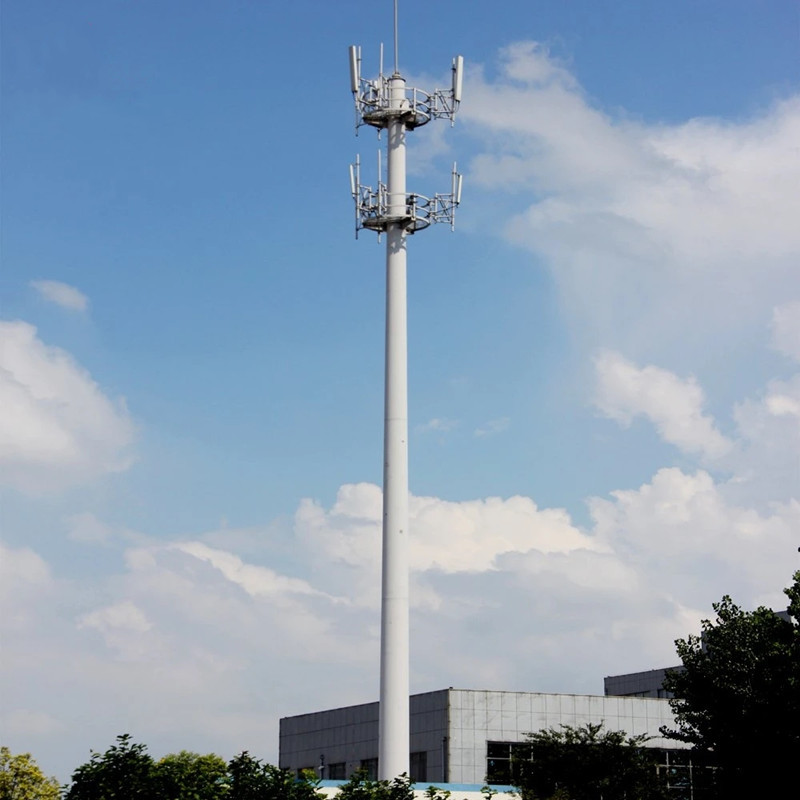

Galvanized Steel Tubular Pole Monopole Antenna Tower
Specificationi of Mono pole tower:
| Material |
Angle steel plates, flat steel plate, bolts and nuts |
| Steel Type |
Weldable low carbon structural steel |
| Steel Grade |
GB Q235, Q345, BS 4360, ASTM A36 etc. |
| Yield Strength |
Fy≥235MPa |
| Tensile Strength |
Fu≥400MPa |
| Elongation |
σ≥20% |
| Surface Finish |
Hot dip galvanization |
| Galvanized layer |
T≥65μm |
| Height |
20m to 100m, customized to requests |
| Design |
4 legs self-supporting or free standing lattice tower |
| Structure |
1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices. |
| Supply mode |
CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down) |
| Fixing/Fastening |
Bolts and nuts, connecting plates |
| Configuration |
Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc. |
| Wind Load |
0.35-1.0kN/sqm |
| Lifespan |
20-50 years |
| Warranty |
3 years |
| Applications |
GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations. |
Monopole tower
Single tube tower also called monopole tower, is a commonly used type, with beautiful appearance, covering an small area of 9 to 18 square meter, cost - effective , and is adopted by majority of the construction. Tower body adopt more reasonable section, which is connected through high strength bolt. It has the characteristics of easy installation and can adapt to a variety of complicated field site.
Self Supporting Tower
Self supporting tower usually is 3leg of 4leg tower, and its material is steel pipe or angle steel. As for the connection, tubular tower is connected by flange, and angle steel tower is connected by nuts and bolts.
Features:
1.Small coefficient of wind load, strong wind resistance.
2.Save land resource, convenient location.
3.Convenient transportation and installation.
50m Monopole Steel Tower With Antenna Wifi Signal Microwave
The structure of 4 legged steel lattice communication tower is generally composed of foundation anchoring bolts (cage frames), sections of tower body, 1 to 5 platforms, mountning brackets, lightning arrest/protection rod, ladder, earthing plates, anti-fall safety system (cage structure) and fasteners (such as clamps, clips, bolts and nuts etc.). The design, structure and height of telecommunication towers can be customized according to requirements and drawings.
Can I customize the towers, poles or frameworks?
Yes, we can fabricate the towers, poles, frameworks or other related products according to your drawings, specifications and requirements.
What’s your payment terms?
T/T or irrevocable documentary L/C is accepted for us. The general payment arrangement is 30% down payment before production and full payment before shipping by T/T, or L/C issued before production.
Can you guarantee the quality?
Yes.
Do you have catalog and price list?
Yes, we can send catalog unpon request. product price quoted according to supplied drawing.
