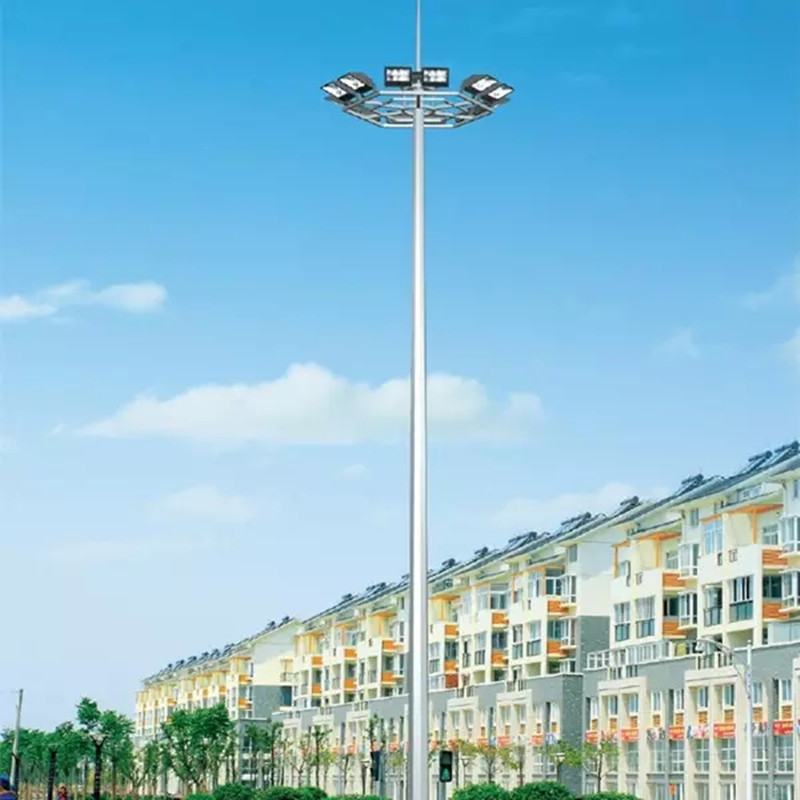

New Design China Manufacture 20m LED Lighting High Mast Steel Pole

  • New Design China Manufacture 20m LED Lighting High Mast Steel Pole
Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number GX-018
Minimum Order Quantity 100pcs
Price USD60-80 per piece
Packaging Details Plastic Bubble sheets and pearl wool sheets
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 5000pcs monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name New Design China Manufacture 20m LED Lighting High Mast Steel Pole Available Height 35m To 50m
Material Weldable Structural Carbon Steel Surface Finish Hot Dip Galvanization And Powder Or PVDF Coating
Grade Q235B, Q345B Or Specified Steel Shape Straight Round, Conical, Polygonal, Rectangular Etc.
Color White, Silver, Grey Or Specified Colors Lifespan 20-50 Years
Warranty 3 Years Wind Speed 50-260m/s
Tension strength (Mpa) 360~510 Or 470~630 Feature Weldable Structural Carbon Steel Plates Or Pipes
Leave a Message
Product Description

New Design China Manufacture 20m LED Lighting High Mast Steel Pole





Specifications



Descriptions Galvanized Steel street / roadway / highway / stadium / Utility / area Light Pole
HS Code 7308900000
Material Low carbon weldable structural steel
Grade GB Q235, Q345, BS4360, ASTM A36 etc.
Yield Strength 235-355MPa
Height 5m to 35m or other specified height
Thickness 4mm to 15mm, depending on height of pole.
Pole Shape Conical/tapered, straight round/cylindrical, square or rectangular, polygonal etc.
Diameter or Dimensions Subject to height of pole and required mechanical properties.
Design Single, dual or multiple straight or curved arms and brackets
Surface Finish Hot dip galvanization plus powder or PVDF coating (optional)
Galvanization 65-100 Microns
Powder Coating 35-80 Microns
Color Silver, grey, black, white, blue, yellow etc.
Applications Roadways, streets, highways, stadiums, public sqaures, airports, railway stations, communities, parking lots, gardens etc.



Poles Feature

1. 20M-50M Tall Conical Lighting Pole
2. Economical and Tough
3. Steel wall thickness 3mm-5mm
4. Powder Coated and Hot Dipped Galvanized Steel for long lasting Durability
5. Lead time Vary-Please Call for details
6. Easy to drill to mount fixtures
7. Easy to install
8. Large Handle Hole(door plate) for easy wiring



The popular steel light poles include tubular steel pole, solar street light pole, conical or tapered light pole, hexagonal or polygonal lighting pole, straight round street light pole and octagonal lighting pole. There are 2 ways of installation of the steel poles, one is directly buried and the other way is fixed to steel frame foundation with anchor bolts by base plate with bolts and nuts.



New Design China Manufacture 20m LED Lighting High Mast Steel Pole 0

Conical roadway light pole Directly buried installation



 Fixed by bolts and nuts with foundation



The steel light poles are designed with single, dual or multiple arms and brackets for mounting lamps, solar panels, CCTV cameras or other facilities as per requests. The designs of arms and brackets are also customized to requirements for different connectors of luminairs or other facilities. With custom special designs, the light poles are not only used for lighting, monitoring or traffic signal control but also for city landscape decorations.



Applicable Examples of Steel Poles

New Design China Manufacture 20m LED Lighting High Mast Steel Pole 1

               20m Street Lighting Pole with automatic lifting system



New Design China Manufacture 20m LED Lighting High Mast Steel Pole 2

Smart City and Intelligent Traffic Signal and Lighting Pole Management System (all in 1 digital information solution)

High power LED lamp with light sensor control

Built-in loudspeaker and network system for APP online remote control

Weather and environment management system

Traffic signal control system

CCTV camera monitor system

LED screen for information and advertising display

Intercom alarm and alert communication system

High quality customized design steel light pole for support and mount.





New Design China Manufacture 20m LED Lighting High Mast Steel Pole 3

Traffic signal light pole and CCTV monitor camera pole









New Design China Manufacture 20m LED Lighting High Mast Steel Pole 4

Utility, roadway, highway, street light pole and landscaped Antenna Tower





Established in 2009, Guangzhou Guangxin Communication Equipment Co., Ltd. is a professional manufacturer of steel poles and towers, specializing in producing all kinds of light poles for a vast range of applications such as street lighting poles, roadway and highway light poles, traffic signal, CCTV monitor and guideboard poles and gantries, signage poles and gantry frames, high mast lighting poles for public sqaures and stadiums etc. In addition, we can also create new designs of poles to meet your aesthetic and functional demands.
