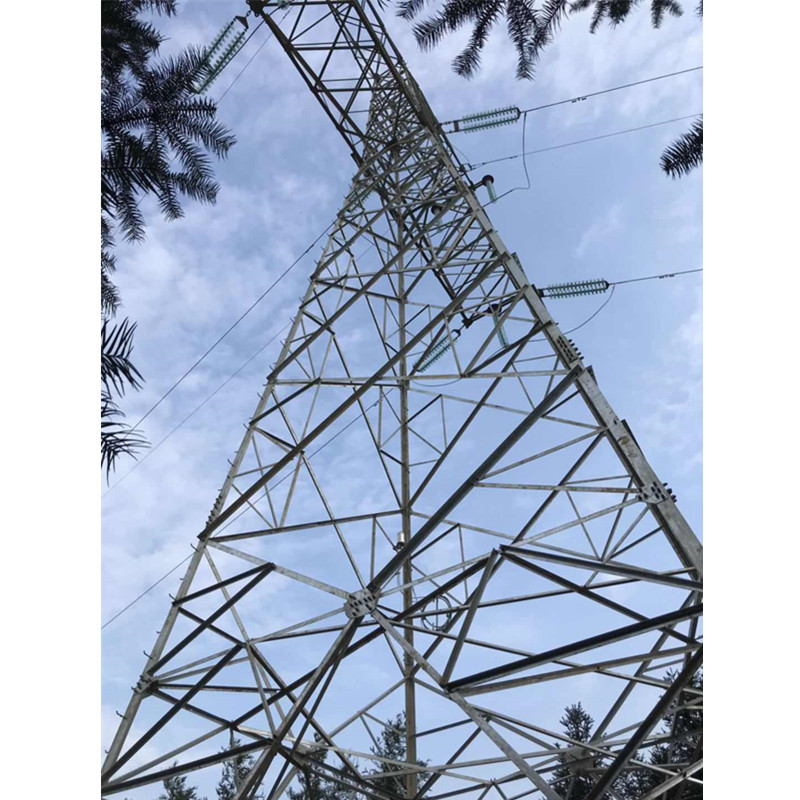

50M HDG Lattice Steel Electrical Power Transmission Tower
| Place of Origin | Guangzhou, China |
|---|---|
| Brand Name | Guangxin |
| Model Number | GX-2500 |
| Minimum Order Quantity | 1UNIT |
| Price | USD1200-USD1350 per ton |
| Packaging Details | wooden pallet and plastic bubble sheets |
| Delivery Time | 30-35days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 500Ton/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Certification | ISO9001:2008 SGS COC | Tower Type | Angular Towers, Tubular Towers, Guyed Mast, Monopole Tower |
|---|---|---|---|
| Material | Q235B Or Q345B | Surface Treatment | Hot-dip Galvanization |
| Galvanization Standard | ASTM A123/ ISO 1461 | Height | 20-100M |
| Design Wind Speed | Up To 250 Km/h | Load Test/destructive Test | We Can Arrange It By Government Authority If It Is Necessary And The Cost Of Such Kind Of Test Is Separately From The Tower Pricing. |
| High Light | ISO9001 Power Transmission Tower,50M Lattice Steel Transmission Tower |
||
Product Description
50M HDG Lattice Steel Electrical Power Transmission Tower
Steel Tower Model: steel tubular tower, communication tower, lighting rod tower, electrical monopole steel tower, electrified railway structure, substation architecture telecommunication tower.
4kv, 4.8kv, 12kv, 13.2kv, 22KV, 23kv, 24KV, 24.9kv, 27.6kv, 33kv, 34.5kv, 35kv, 46kv, 66kv, 69kv, 110kv, 115kv, 132kv, 138kv, 150kv, 154kv, 161kv, 220kv, 230kv, 275kv, 287kv, 330KV, 345kv, 380kv, 400kv, 500kv, 735kv, 750kv, 765kv, 800kv, 1000kv, 1100kv, towers including angular tower, tubular tower; SST tower and guyed tower; Single circuit tower, double circuit tower and multi - circuit tower; Lattice tower or monopole tower; H- frame, M-type tower, T-type tower, Y-type tower; And every type of utility poles, transmission &distribution poles, switch poles; Substation frameworks etc.
Welding:
1.Welding complies with AWS D1.1 standard.
2. CO2 welding or submerged arc auto methods.
3. No fissure, scar, overlap, layer or other defects
4. Internal and external welding makes the pole more beautiful in shape
If customers need any other requirements of welding, we also can make adjustment as your request
| Material | Steel pipes, Angle steel plates, flat steel plates, bolts and nuts distribution tower |
| Steel Type | Weldable low carbon structural steel |
| Steel Grade | GB Q235, Q345, BS 4360, ASTM A36 etc. |
| Yield Strength | Fy≥235MPa |
| Tensile Strength | Fu≥400MPa |
| Elongation | σ≥20% |
| Surface Finish | Hot dip galvanization |
| Galvanized layer | T≥65μm |
| Height | 20m to 100m, customized to requests |
| Design | 4 legs self-supporting or free standing lattice tower |
| Structure | Multiple platforms and brackets for mounting power cables or wires, customized to requests. |
| Supply mode | CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down) |
| Fixing/Fastening | Bolts and nuts, connecting plates |
| Configuration | Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc. |
| Wind Load | 0.35-1.0kN/sqm |
| Lifespan | 20-50 years |
| Warranty | 3 years |
| Applications | GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations. |
