4 Leg 4g Cell Mobile Phone Steel Tower 60m Wireless Round Tube Galvanized Steel

Place of Origin Guangzhou, China
Certification ISO9001
Model Number GX-3497
Minimum Order Quantity 1 set
Price USD1998-20000 per set
Packaging Details plastic bubble sheets or cloth package by bundle
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 500 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name 4 Leg 4g Cell Mobile Phone Steel Tower 60m Wireless Round Tube Galvanized Steel Material Weldable Structural Angle Steel Plates Or Pipes
Surface Finish Hot-dip Galvanized Or Painting Height 20m To 80m Height
Material Grade GB Q235, Q345, Q355 Or Specified Grade Yield Strength 235~355MPa
Galvanized Thickness 65~85 Microns Design Lattice Frame Constructure
Wind Load 0.36-1.0kN/sqm Color Grey Color Coating
Leave a Message
Product Description

4 Leg 4g Cell Mobile Phone Steel Tower 60m Wireless Round Tube Galvanized Steel



1. Material: Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm²

Q235B/A36, Minimum Yield Strength ≥ 235 N/mm²

As well as Hot rolled coil from ASTM A572 GR65, GR50, SS400, or any other standard by client required.

2. Tower Type: Steel Tube, Angle Steel, Lattice Mast, Self-supporting

3. Tower Style: Mono Pole Tower, Three Legs Tower, Four Legs Tower

4. Height: Below 100 meter, customized.

5. Wind Pressure: 0.35-1 KN/m2

6. Connection: Flanges, Inserting, Connecting Plate & Bolt

7. Surface Treatment: Hot Dipped Galvanized

8. Zinc Coating: 65μ-85μ

9. Supply Capacity: 1500 MT/Month

10. Color: Galvanized, or customized

11. Usage: GSM, RRU, CDMA, Micro Wave, Radio etc.

12. Certification: ISO9001:2008, ISO14001:2004, OHSAS18001: 2007, SGS, MA




1, Design layout and drawing, set up specifications and sizes.

2, Buy row seamless steel pipes or flat steel plates and folding and welding them to be tubular pipes as well as galvanized steel bolts, nuts, washers and springs.

3, Measure and cut out sizes and holes.

4, Weld necessary parts (such as footing plates, connecting flanges and gussets, antenna mounts, lightning rod, ladder etc.)

5, Polish burrs and welding scars to make all members good surface.

6, Assemble tower sections according to drawings, make sure sizes and connecting parts are correct.

7, Hot dip galvanization: clean surface corrosion and oil with acid or other chemicals-->clean with water-->dip in cosolvents-->dry-->dip in hot zinc pool for galvanization-->cooling and curing-->clean-->dry

8, Check quality and start packing.


Guangxin manufactory supplied self supporting 4 legged telecom steel tube tower are made of steel tube, designed on a tubular base pattern.The communication tower is optimized for medium to heavy loads which is used for standard cellular sites. 4 Legs Tubular High Quality 60m Telecommunication Steel Tower can be equipped with a variety of accessories, such as work or rest platforms, antenna mounts, safety devices,obstruction lights, lightning protection kit and more. All of the accessories can be installed at any desired height and orientation according to customer Specification.


Specifications of Tubular Steel Tower


Material Angle steel plates, flat steel plate, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.

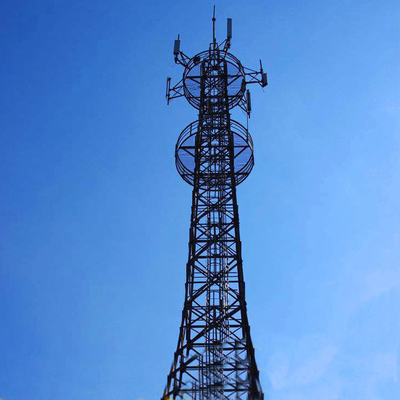

4 Leg 4g Cell Mobile Phone Steel Tower 60m Wireless Round Tube Galvanized Steel 0
