50m Free Standing Galvanized Iron Steel Mobile Tower 5G Antenna Station Mast

  • 50m Free Standing Galvanized Iron Steel Mobile Tower 5G Antenna Station Mast
  • 50m Free Standing Galvanized Iron Steel Mobile Tower 5G Antenna Station Mast
  • 50m Free Standing Galvanized Iron Steel Mobile Tower 5G Antenna Station Mast
Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number SST-048
Minimum Order Quantity 1 set
Price USD1998-19998 per set
Packaging Details plastic bubble sheets
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 500 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Delivery Time 20-30 Days Name Galvanized Angle Steel Mobile Tower
Material Weldable Structural Angle Steel Plates Or Pipes Surface Finish Hot Dip Galvanization
Height 30m To 120m Or Customized Height Material Grade GB Q235, Q345, Q355 Or Specified Grade
Yield Strength 235~355MPa Galvanized Thickness 65~85 Microns
Design 1-5 Platforms With Mounting Brackets Wind Load 0.36-1.0kN/sqm
Lifespan 20-50 Years Warranty 3 Years
High Light

Galvanized Iron Steel Mobile Tower

,

5G Antenna Steel Mobile Tower
Leave a Message
Product Description

50m Free Standing Galvanized Iron Steel Mobile Tower 5G Antenna Station Mast

4 Legs Self-Supporting Galvanized Steel Lattice Tower

4-legged Free Standing Angular Mobile Antenna Mast



Professional supplier and factory of 4 legs Self-supporting Galvanized steel Lattice Communication Tower, Antenna Tower, Radio Tower and TV tower, Power Transmission and Distribution Tower



Self-supporting steel tower is the most popular tower for communication or power transmission and distribution applications. It’s generally designed as 3 legs or 4 legs and fixed on steel framed concrete pedestal foundations, composed of galvanized tubular steel tubes or angular steel plates by welding and fastening with bolts and nuts. With height of 20m to 120m, the galvanized iron steel lattice towers are widely used for mounting mobile communication macrocell or microcell stations and power transmission or distribution wires or cables.



There are 3 popular types of lattice communication towers--ground fixed self-spoorting steel towers, rooftop self-supporting steel towers and steel wire guyed towers. The steel lattice towers are usually as high as 35m to 120m. Besides using for telecommunications, the steel towers are also widely used for power transmission and distribution as well as TV and radio signal transmission stations.



50m Free Standing Galvanized Iron Steel Mobile Tower 5G Antenna Station Mast 0

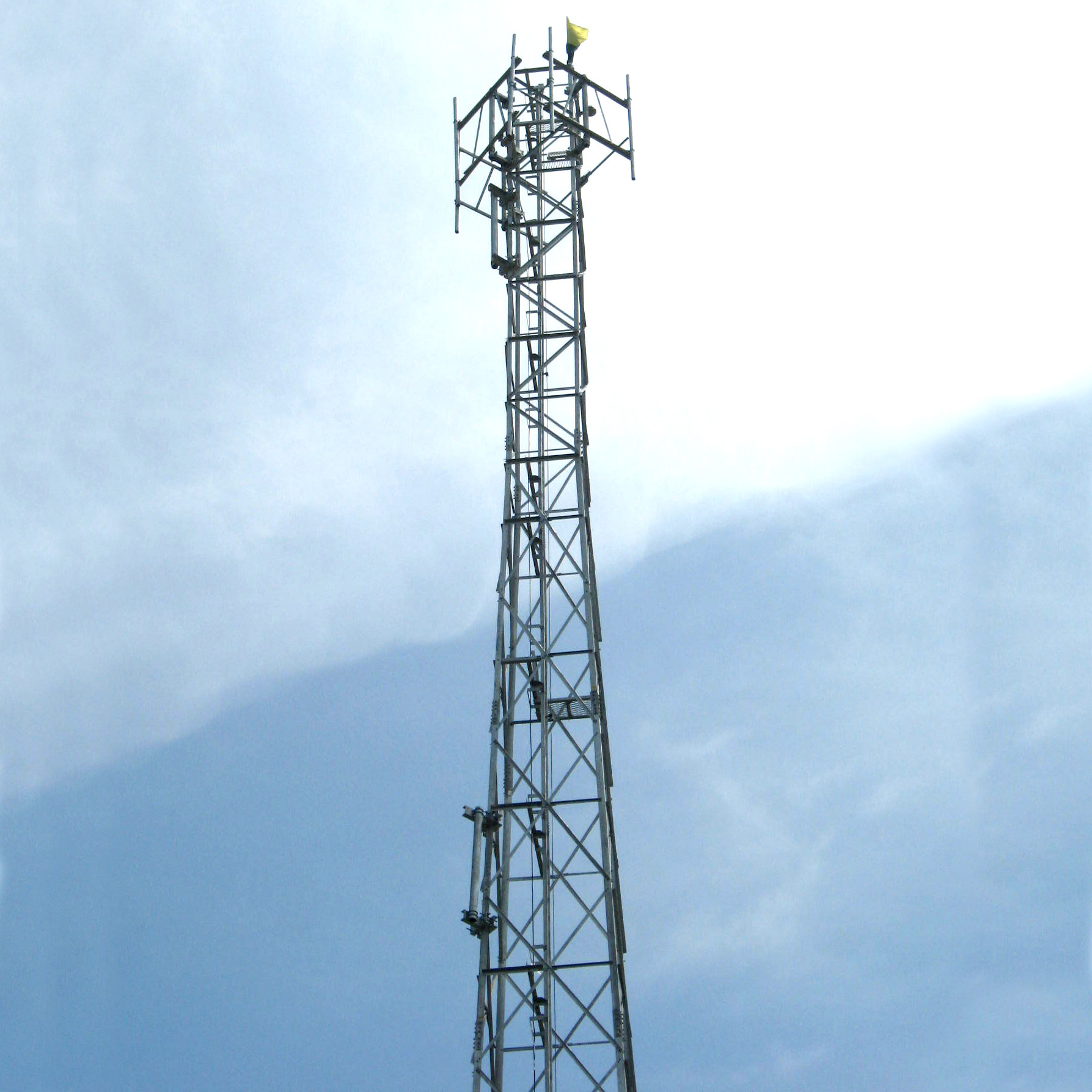

SST: Self-supporting Galvanized Steel Telecom Tower erected in Philippines



Self-supporting steel tower is the most popular tower for communication or power transmission and distribution applications. It’s generally designed for 3 legs or 4 legs, composed of galvanized tubular steel tubes and angular steel plates by welding and fastening with bolts and nuts. With height of 20m to 120m, the galvanized iron or steel lattice towers are widely used for mounting mobile communication macrocell stations and power transmission or distribution wires or cables.



Specifications of 4 Legged Angular Steel Lattice Tower



Material Angle steel plates, flat steel plate, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization plus optionally painting
Galvanized layer T≥65μm
Height 20m to 120m, customized to requests and specifications or drawings
Design 4 legs self-supporting free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Concrete steel frame Foundations/pedestals, anchoring hold down bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G cellphone antennas, VHF/FM radio antennas, microwaves, telecom microcell or macrovell stations, TV stattions etc.



50m Free Standing Galvanized Iron Steel Mobile Tower 5G Antenna Station Mast 1

60m High Mast 4-legged Galvanized Angle Steel VHF Antenna Towe Foundation Construction



The structure of 4-legged galvanized angle steel lattice communication tower is generally composed of steel framed concrete foundations, anchoring bolts, sections of tower body, 1 to 5 platforms, antenna mounting brackets, lightning protection rod, ladder, earthing plates, anti-fall safety system (cage structure) and fasteners (such as clamps, clips, bolts and nuts etc.). The design structure and height of telecommunication towers can be customized according to requirements and drawings.





All the parts of tower are prefabricated in CKD (completel knocked down) steel members according shop drawings, ready for installation. When you install the tower, just fix the steel footings to concrete foundation pedestals by bolts and nuts and then connect the angular steel plate braces to the legs via welded connecting plates with bolts and nuts. In CKD way of fabrication, tower parts are easy for transportation and shipping cost is also much lower because you can ship more materials in a container or truck.







50m Free Standing Galvanized Iron Steel Mobile Tower 5G Antenna Station Mast 2

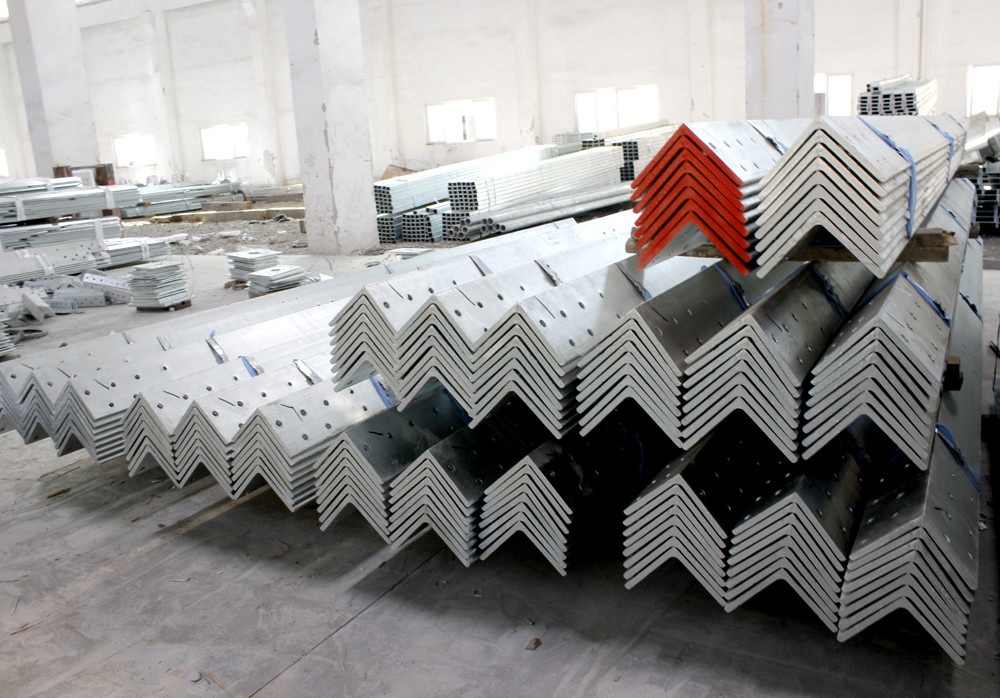

Galvanized angle steel plates for building tower braces
