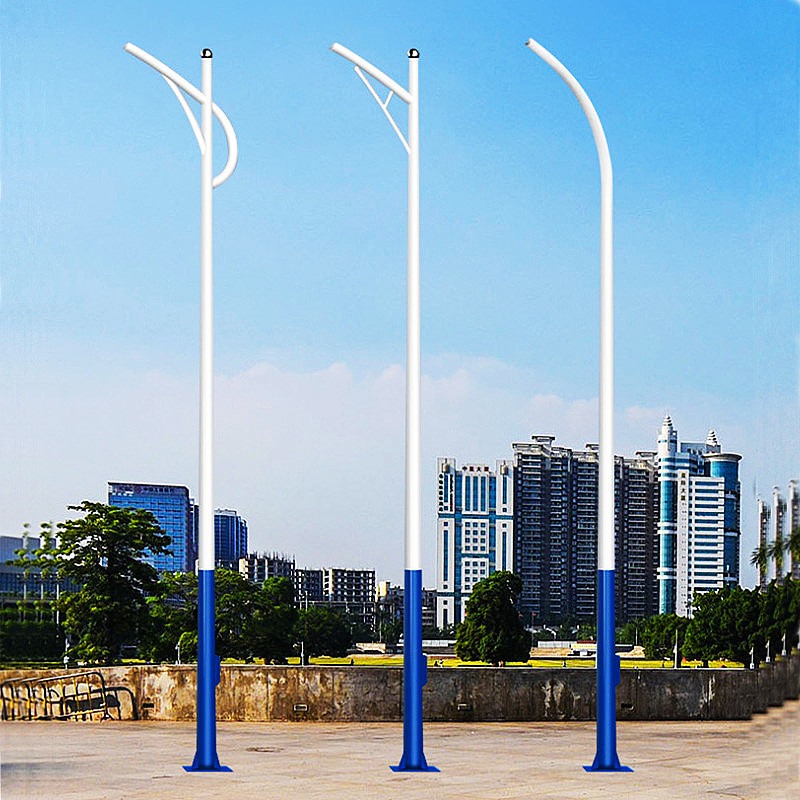

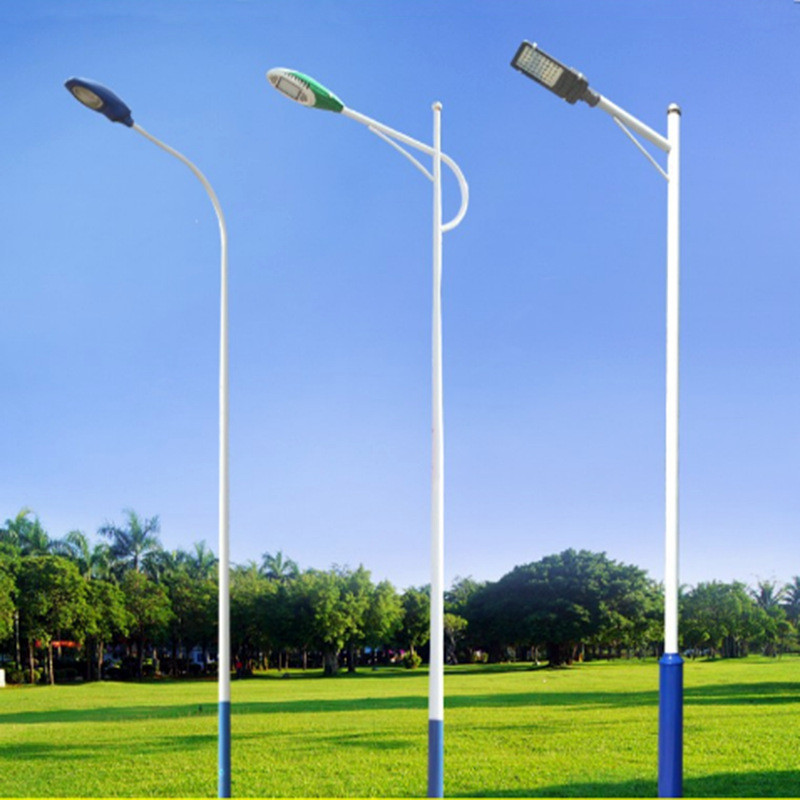

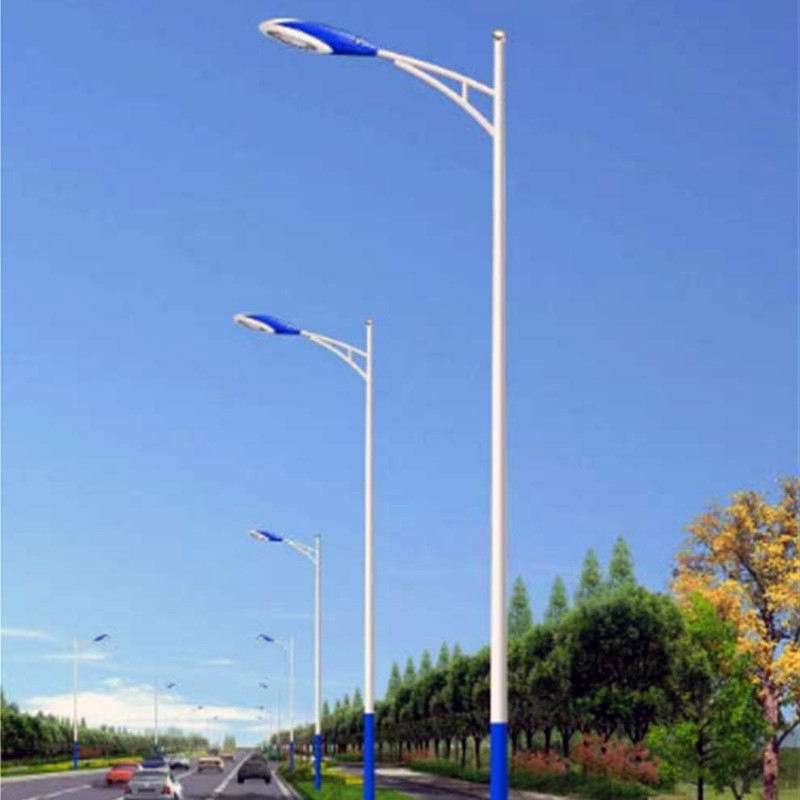

Solar LED Street Lighting Pole Single Double Arm Steel Post

  • Solar LED Street Lighting Pole Single Double Arm Steel Post
  • Solar LED Street Lighting Pole Single Double Arm Steel Post
  • Solar LED Street Lighting Pole Single Double Arm Steel Post
  • Solar LED Street Lighting Pole Single Double Arm Steel Post
Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number CSP-011
Minimum Order Quantity 5
Price USD60-80 per piece
Packaging Details air bubble sheet package
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 2000 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Single Double Arm Steel Post Solar LED Street Lighting Pole Material Weldable Structural Carbon Steel Plates Or Pipes
Surface Finish Hot Dip Galvanization Plus Powder Coating(optional) Height 8m Or Customized To Requests
Pole Shape Conical, Tapered, Octangular, Polygonal, Round Etc. Arms 1 Or 2 Or Customized To Request
Applications Traffic Monitor, Public Security CCTV, Parking Lotsurveillance Etc.
High Light

Solar LED Street Lighting Pole

,

Double Arm LED Street Lighting Pole
Leave a Message
Product Description

Single Double Arm Steel Post Solar LED Street Lighting Pole



Galvanized Street Light Pole Coating process spraying plastic is the key process to ensure the anti-corrosion of the lamp pole. The plastic powder adopts outdoor professional powder to ensure the lamp pole's long-term luster as new.



DescriptionsSteel poles for mounting lights, CCTV camera, guideboards, billboards etc. Double Arm Street Light Pole
MaterialLow carbon weldable structural steel
GradeGB Q235, Q345, BS4360, ASTM A36 etc.
Yield Strength235-355MPa
Height5m to 35m or other specified height
Thickness4mm to 15mm, depending on height of pole.
Pole ShapeConical/tapered, straight round/cylindrical, square or rectangular, polygonal etc.
Diameter or DimensionsSubject to height of pole and required mechanical properties.
DesignSingle, dual or multiple straight or curved arms and brackets
Surface FinishHot dip galvanization plus powder or PVDF coating (optional)
Galvanization65-100 Microns
Coating35-80 Microns
ColorSilver, grey, black, white, blue, yellow etc.
ApplicationsRoadways, streets, highways, stadiums, public sqaures, airports, railway stations, communities, parking lots, gardens etc.

All-in-1 Smart Lighting Pole includes:



LED Light

CCTV camera

LED display

Intercom Alarm

WIFI Hotspot or antenna

Weather radio

USB sockets

etc.



High Mast ligting pole is generally 20m-35m high made of several sections by sleeve joint, the lamps are generally 200-400W LED luminairs. Very popular for outdoor large sqaures, highways or convention centers.



The popular steel light poles include tubular steel pole, solar street light pole, conical or tapered light pole, hexagonal or polygonal lighting pole, straight round street light pole and octagonal lighting pole. There are 2 ways of installation of the steel poles, one is directly buried and the other way is fixed by base plate with bolts and nuts.





Typical installation way of steel poles, especially for the high mast lighting or communication poles



The steel light poles are designed with single, dual or multiple arms and brackets for mounting lamps, solar panels, CCTV cameras or other facilities as per requests. The designs of arms and brackets are also customized to requirements for different connectors of luminairs or other facilities. With custom special designs, the light poles are not only used for lighting, monitoring or traffic signal control but also for city landscape decorations.


Directly buried light post

Solar LED Street Lighting Pole Single Double Arm Steel Post 0


Applicable Examples of Steel Poles
Solar LED Street Lighting Pole Single Double Arm Steel Post 1




6m x 10m (6m high pole 10m long arm) Galvanized Steel Traffic Sign, Camera and Signal Light Cantilever

Solar LED Street Lighting Pole Single Double Arm Steel Post 2
Billboard and Sign Galvanised Steel Support Column and Gantry Frame
