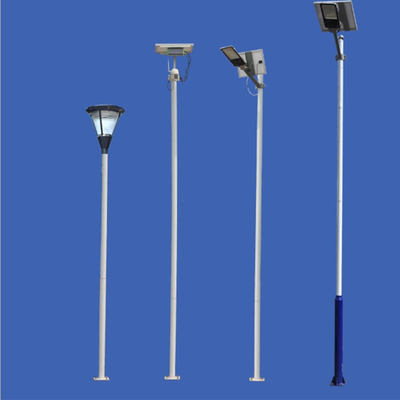

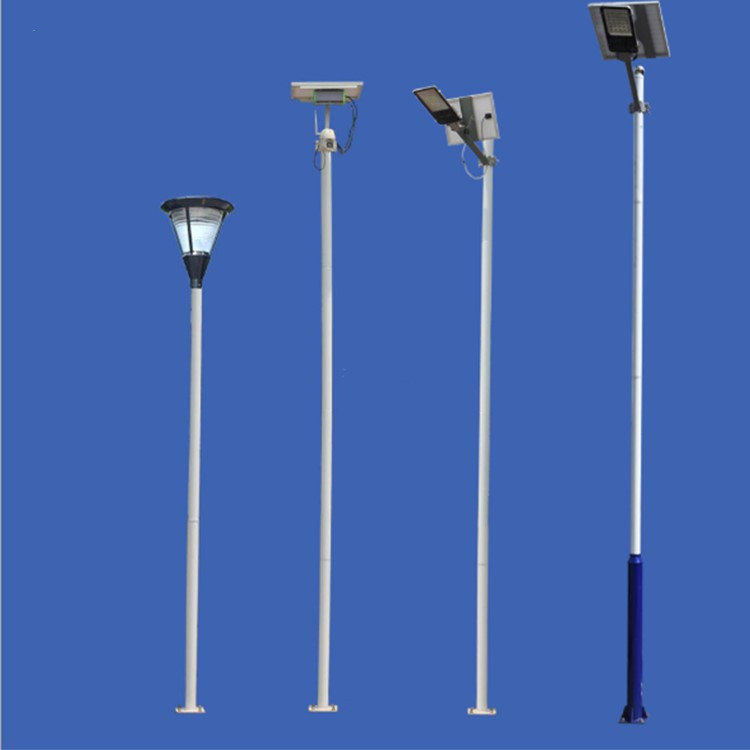

5m Height Round Power Solar Street Light Pole Galvanized Lamp Post

  • 5m Height Round Power Solar Street Light Pole Galvanized Lamp Post
Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number GX-1305
Minimum Order Quantity 5
Price USD60-80 per piece
Packaging Details air bubble sheet package or cloth packing by bundle
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 2000 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Outdoor Round Power Solar Street Light Pole Galvanized Lamp Post Material Weldable Structural Carbon Steel Plates Or Pipes
Surface Finish Hot Dip Galvanization Plus Powder Coating(optional) Height 8m Or Customized To Requests
Pole Shape Conical, Tapered, Octangular, Polygonal, Round Etc. Arms 1 Or 2 Or Customized To Request
Applications Traffic Monitor, Public Security CCTV, Parking Lotsurveillance Etc.
High Light

Round Power Solar Street Light Pole

,

5m Height Solar Street Light Pole
Leave a Message
Product Description

Outdoor Round Power Solar Street Light Pole Galvanized Lamp Post



Galvanized Street Light Pole Coating process spraying plastic is the key process to ensure the anti-corrosion of the lamp pole. The plastic powder adopts outdoor professional powder to ensure the lamp pole's long-term luster as new.



Descriptions Steel poles for mounting lights, CCTV camera, guideboards, billboards etc. Double Arm Street Light Pole
Material Low carbon weldable structural steel
Grade GB Q235, Q345, BS4360, ASTM A36 etc.
Yield Strength 235-355MPa
Height 5m to 35m or other specified height
Thickness 4mm to 15mm, depending on height of pole.
Pole Shape Conical/tapered, straight round/cylindrical, square or rectangular, polygonal etc.
Diameter or Dimensions Subject to height of pole and required mechanical properties.
Design Single, dual or multiple straight or curved arms and brackets
Surface Finish Hot dip galvanization plus powder or PVDF coating (optional)
Galvanization 65-100 Microns
Coating 35-80 Microns
Color Silver, grey, black, white, blue, yellow etc.
Applications Roadways, streets, highways, stadiums, public sqaures, airports, railway stations, communities, parking lots, gardens etc.





High Mast ligting pole is generally 20m-35m high made of several sections by sleeve joint, the lamps are generally 200-400W LED luminairs. Very popular for outdoor large sqaures, highways or convention centers.



Shape: conical or tapered light pole, hexagonal or polygonal lighting pole, straight round street light pole and octagonal lighting pole.



Installation Way: one is directly buried and the other way is fixed by base plate with bolts and nuts.





Typical installation way of steel poles, especially for the high mast lighting or communication poles



The steel light poles are designed with single, dual or multiple arms and brackets for mounting lamps, solar panels, CCTV cameras or other facilities as per requests. The designs of arms and brackets are also customized to requirements for different connectors of luminairs or other facilities. With custom special designs, the light poles are not only used for lighting, monitoring or traffic signal control but also for city landscape decorations.


Directly buried light post

5m Height Round Power Solar Street Light Pole Galvanized Lamp Post 0


Applicable Examples of Steel Poles
5m Height Round Power Solar Street Light Pole Galvanized Lamp Post 1




6m x 10m (6m high pole 10m long arm) Galvanized Steel Traffic Sign, Camera and Signal Light Cantilever

5m Height Round Power Solar Street Light Pole Galvanized Lamp Post 2
Billboard and Sign Galvanised Steel Support Column and Gantry Frame
