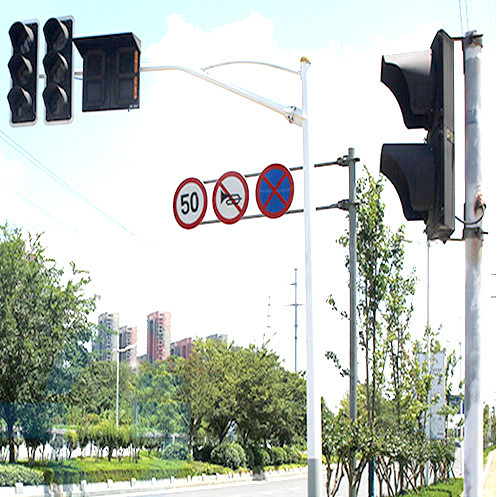

Multi Purpose Traffic Signal Light Pole 235MPa CCTV Camera Pole
Place of Origin | Guangzhou, China |
---|---|
Brand Name | GUANGXIN |
Certification | ISO9001 |
Model Number | TSP-002 |
Minimum Order Quantity | 10 sets |
Price | USD198-2038 per piece |
Packaging Details | Plastic bubble sheets and belts |
Delivery Time | 20-30 days |
Payment Terms | T/T, L/C, Western Union, MoneyGram |
Supply Ability | 5000 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | CCTV Camera Pole | Material | Non-alloy Structural Carbon Steel |
---|---|---|---|
Surface Finish | Hot Dip Galvanization Plus Powder Coating (optional) | Design | Self-supporting Pole With Single Or Multiple Arms |
Height | 4m To 20m | Steel Grade | Q235, Q345 Or Specified Steels |
Yield Strength | Not Less Than 235MPa | Dimensions | Customized To Requests |
Application | Street Roadways, Highways And Toll Gates | ||
High Light | 235MPa Traffic Signal Light Pole,5m Traffic Signal Light Pole,235MPa CCTV Camera Pole |
Multi Purpose Traffic Signal Light Pole 235MPa CCTV Camera Pole
Multi Purpose Traffic Signboard And Signal Light Steel Pole
Galvanized Steel Traffic Signboard, Billboards, Signal Lights, Street Lights and CCTV Camera Pole
Custom Design Steel Poles for Mounting Traffic Signboards, Billboards, Street Lights, CCTV Cameras etc.
Steel Structural Gantry and Poles for Mounting Traffic Facilities
Traffic Signal Light and Street Light Pole
CCTV Camera Steel Pole
Steel Light Tower
Founded in 2009, Guangzhou Guangxin Communication Equipment Co., Ltd. is a professional manufacturer of steel towers, poles and structures or gantries for traffic, telecom and utility applications from China, we've been specializing in this field for more than 10 years and have become one of leading suppliers of infrastructures for civil industries. Our business range includes:
Specifications
Descriptions | Steel poles for mounting lights, CCTV camera, signboards, billboards, LED screen etc. |
HS Code | 7308900000 |
Material | Low carbon weldable structural steel |
Grade | GB Q235, Q345, BS4360, ASTM A36 etc. |
Yield Strength | 235-355MPa |
Height | 5m to 35m or other specified height |
Thickness | 4mm to 15mm, depending on height of pole. |
Pole Shape | Conical/tapered, straight round/cylindrical, square or rectangular, polygonal etc. |
Diameter or Dimensions | Subject to height of pole and required mechanical properties. |
Design | Single, dual or multiple straight or curved arms and brackets |
Surface Finish | Hot dip galvanization plus powder or PVDF coating (optional) |
Galvanization | 65-100 Microns |
Coating | 35-80 Microns |
Color | Silver, grey, black, white, blue, yellow etc. |
Applications | Roadways, streets, highways, stadiums, public sqaures, airports, railway stations, communities, parking lots, gardens etc. |
The popular steel light poles include tubular steel pole, solar street light pole, conical or tapered light pole, hexagonal or polygonal lighting pole, straight round street light pole and octagonal lighting pole. There are 2 ways of installation of the steel poles, one is directly buried and the other way is fixed to steel frame foundation with anchor bolts by base plate with bolts and nuts.
Features
1, Custom designs
2, Easy installation and mounting
3, Multi-functional applications
4, Steady and high wind load.
5, Flexible heights and dimensions
6, Popular for traffic signal and safety management as well as utility lighting and smart city systems.
What’s your payment terms?
T/T or irrevocable documentary L/C is accepted for us. The general payment arrangement is 30% down payment before production and full payment before shipping by T/T, or L/C issued before production.
Can you guarantee the quality?
Yes.
Where are you shipping?
We usually ship from any port of Guangzhou or Shenzhen, other ports in other cities are also available if required.
