Traffic Facilities Hot Dip Galvanized Steel Structures Q235B Free Standing

Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number GIS-027
Minimum Order Quantity 1 set
Price USD2.18 per kilogram
Packaging Details plastic sheets
Delivery Time 20-25 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 1000 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Galvanized Steel Structures Material Steel Channel Beams And Plates Or Pipes
Grade Q235B Structure Customized To Customer's Designs And Drawings
Dimensions Customized To Customer's Specifications And Drawings Surface Finish Hot Dip Galvanized Or Painting
Fabrication Prefabricated
High Light

ODM Galvanized Steel Structures

,

Q235B Galvanized Steel Structures

,

Q235B gantry steel structure

Leave a Message
Product Description

Traffic Facilities Hot Dip Galvanized Steel Structures Q235B Free Standing



Large Scale Galvanized Steel Traffic Structure And Gantry Frame For Traffic Facilities





Customized Design Steel Structure and Gantry Frame for mounting highway traffic signs and management facilities

Galvanized Steel traffic sign Structure and signal control Gantry Frame

Galvanized Steel Sign Pole and Outdoor Advertising Signage Gantry Structure

Structural steel billboards, signs, advertising, signage and LED Display gantry frames

Billboard, sign, signage and advertising LED Display Steel frame, pole and structures

Galvanized steel Sign pole and gantry

Steel structures and gantry frames customized to designs, drawings, specifications and requirements or applications



 galvanized steel gantry frame for mounting traffic signs, signa lights, CCTV cameras and LED screen



Specifications



Material Tubular steel pipes, angular steel plates, flat steel plate or solid steel bars and rods, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 2m to 120m, customized to requests
Design structural steel gantry frame
Structure free standing structure
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting flanges
Configuration Foundations, anchoring bolts, gantry sections, bolts and nuts
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications traffic signal control and monitor facilities, highway/roadway billboards,signs, LED display, traffic lights, CCTV cameras etc.

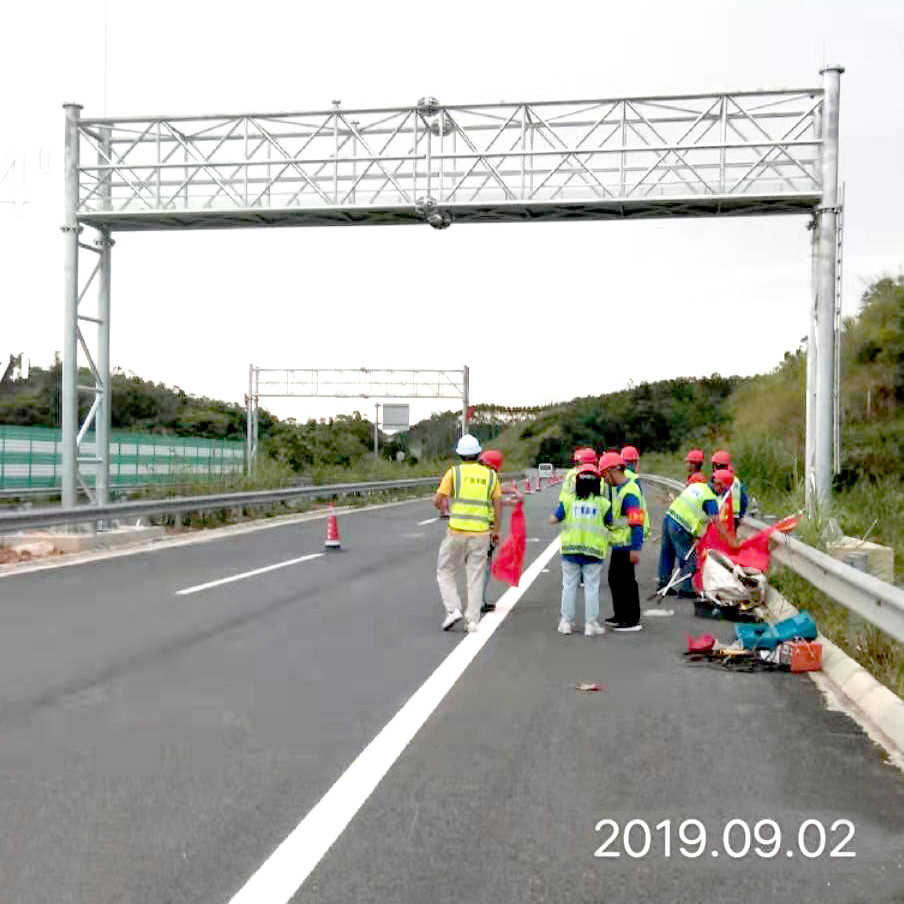

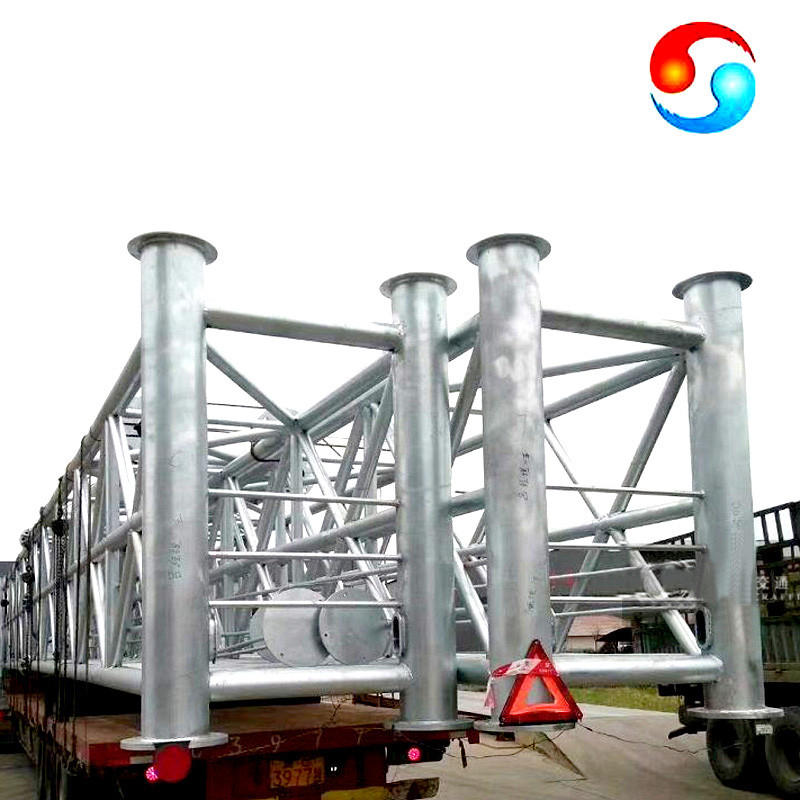

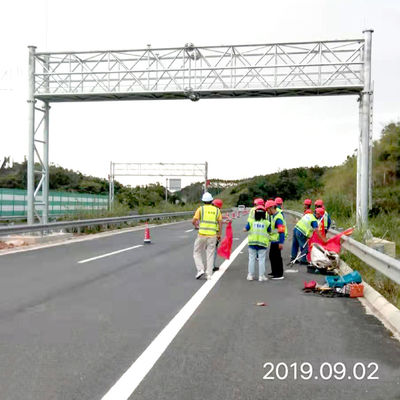

Galvanized Steel Highway Lattice Gantry Frames for traffic management facilities

Traffic Facilities Hot Dip Galvanized Steel Structures Q235B Free Standing 0

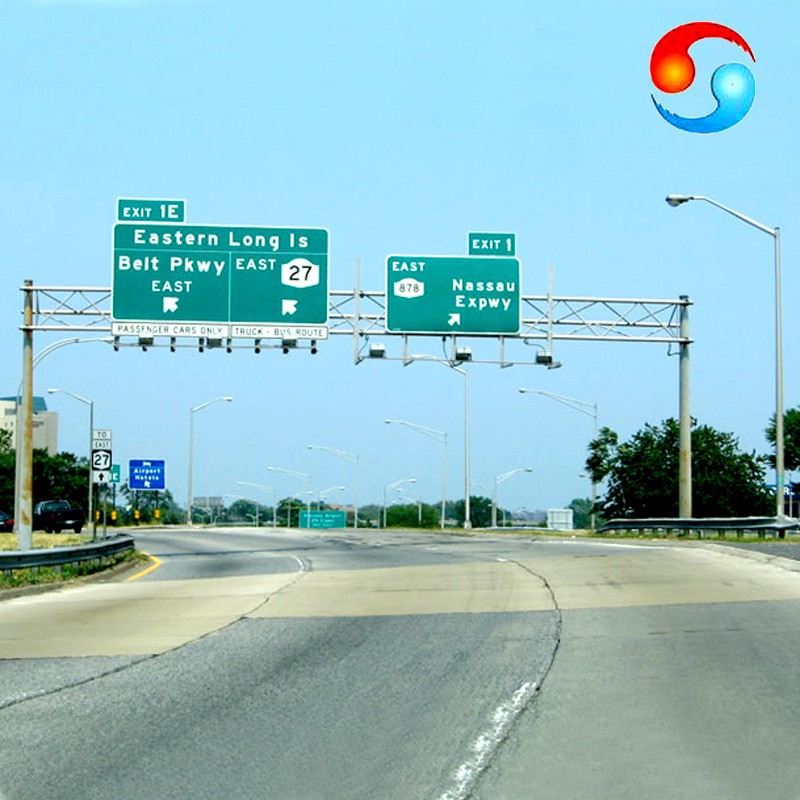

Highway Traffic sign and CCTV Camera management gantry structure




Traffic Facilities Hot Dip Galvanized Steel Structures Q235B Free Standing 1 Traffic Facilities Hot Dip Galvanized Steel Structures Q235B Free Standing 2

    Traffic sign or guideboard pole                                Signage,billboard, LED display pole



All the steel structures are customized and prefabricated according to customer's designs, specifications and drawings.

Factory plant transmission rail steel structures

We're also producing steel frames for factory plants and building structures.

Galvanized steel Articifial Palm Tree Landscaing and Communication Cell Tower
