Gantry Frame Q345 Galvanized Steel Structures For Traffic Signs

Place of Origin Guangzhou, China
Certification ISO9001
Model Number GIS-027
Minimum Order Quantity 1 set
Price USD2.18 per kilogram
Packaging Details plastic sheets
Delivery Time 20-25 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 1000 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Name Galvanized Steel Structure Material Steel Channel Beams And Plates Or Pipes
Grade Q235B, Q345 Or Specified Steel Structure Customized To Customer's Designs And Drawings
Dimensions Customized To Customer's Specifications And Drawings Surface Finish Hot Dip Galvanized Or Painting
Fabrication Prefabricated
High Light

Q345 Galvanized Steel Structures


ISO9001 Galvanized Steel Structures


Q345 galvanized steel structure

Leave a Message
Product Description

Gantry Frame Q345 Galvanized Steel Structures For Traffic Signs


Large Scale Galvanized Steel Traffic Structure And Gantry Frame

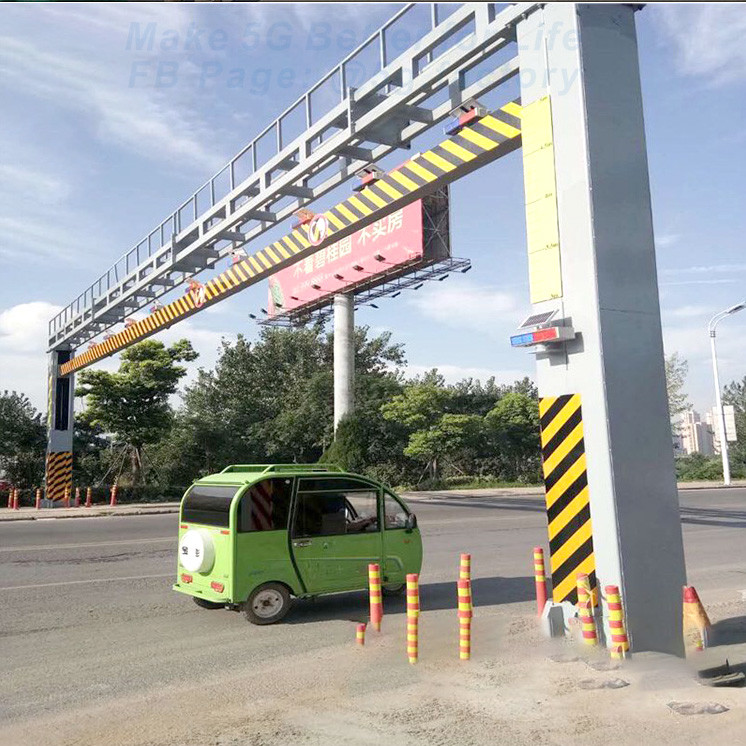

 galvanized steel gantry frame for mounting traffic signs, signa lights, CCTV cameras and LED screen

Galvanized Steel Structures is a good choice for strength, safety, long-term cost and durability. Bar Grating consists of a series of
bearing bars, welded (or otherwise joined) at various intervals to perpendicular cross bars to form a load-bearing panel. It is available in a wide selection of panel sizes; bar sizes, and material types.
Stair treads are the horizontal sections of stairs that serve as the step surface of each step.



Material Tubular steel pipes, angular steel plates, flat steel plate or solid steel bars and rods, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 2m to 120m, customized to requests
Design structural steel gantry frame
Structure free standing structure
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting flanges
Configuration Foundations, anchoring bolts, gantry sections, bolts and nuts
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications traffic signal control and monitor facilities, highway/roadway billboards,signs, LED display, traffic lights, CCTV cameras etc.

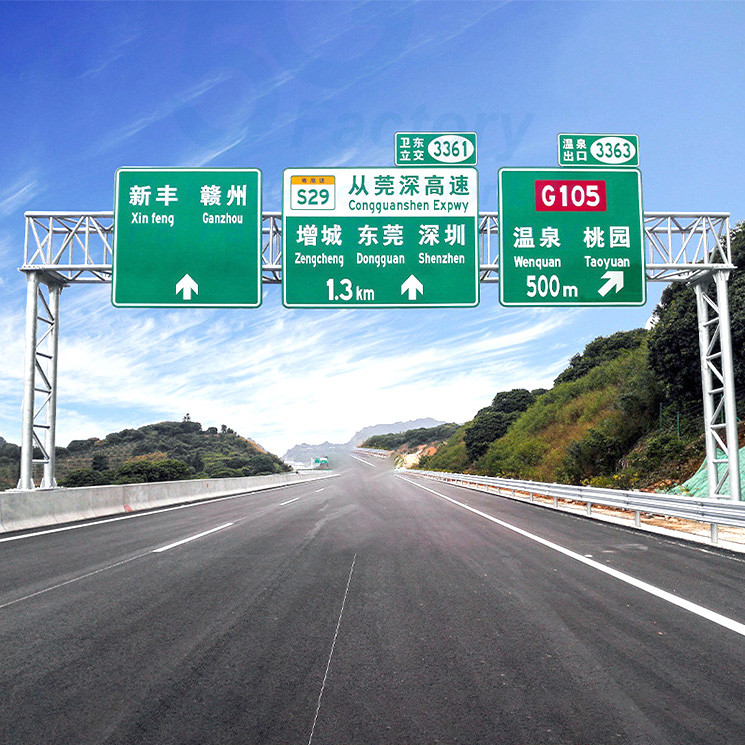

Galvanized Steel Highway Lattice Gantry Frames for traffic management facilities

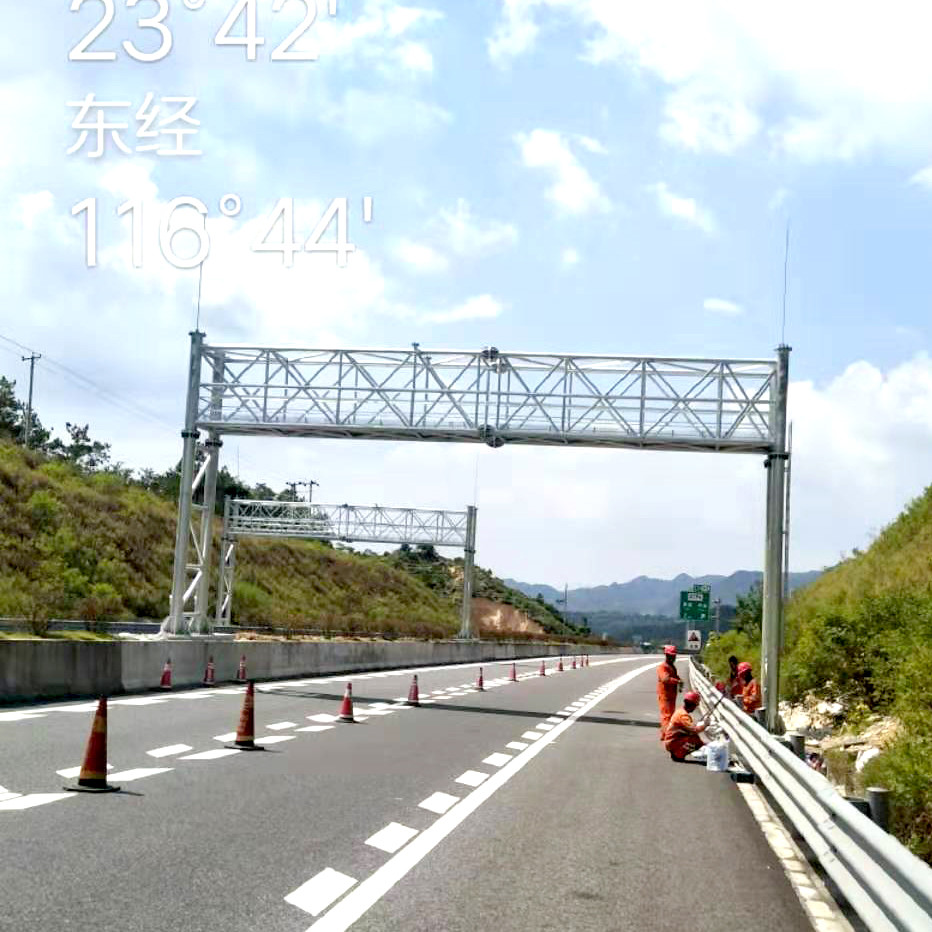

Highway Traffic sign and CCTV Camera management gantry structure




Gantry Frame Q345 Galvanized Steel Structures For Traffic Signs 0

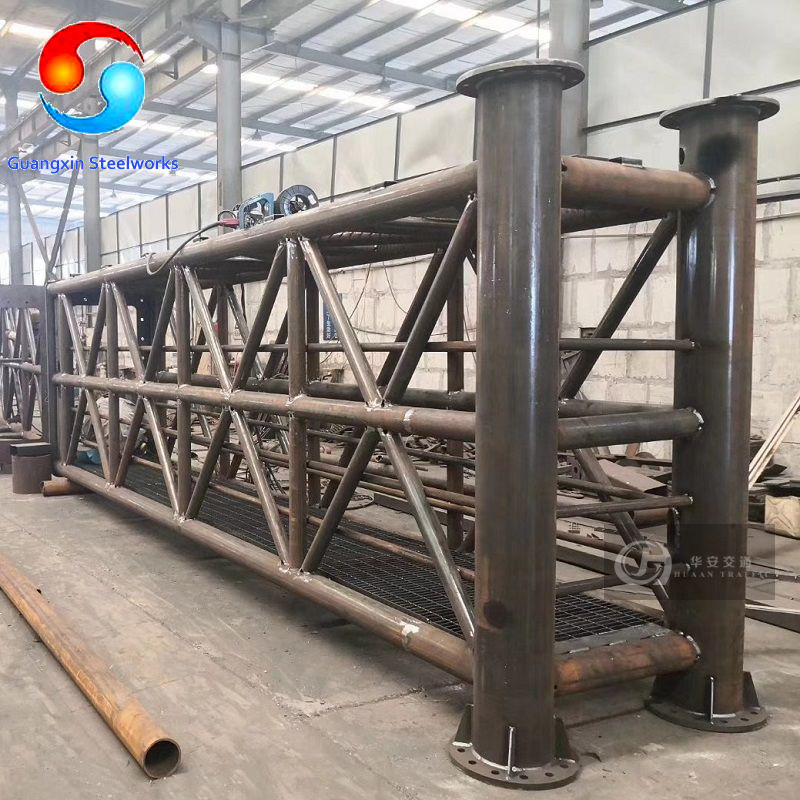

All the steel structures are customized and prefabricated according to customer's designs, specifications and drawings.

Factory plant transmission rail steel structures

Gantry Frame Q345 Galvanized Steel Structures For Traffic Signs 1

We're also producing steel frames for factory plants and building structures.
