Large Scale Q345 Galvanized Steel Frame For Traffic Facilities

  • Large Scale Q345 Galvanized Steel Frame For Traffic Facilities
Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number GIS-026
Minimum Order Quantity 1 set
Price USD2.18 per kilogram
Packaging Details plastic sheets
Delivery Time 20-25 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 1000 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Galvanized Steel Frame Material Steel Channel Beams And Plates Or Pipes
Grade Q235B, Q235B Or Specified Steel Structure Customized To Customer's Designs And Drawings
Surface Finish Hot Dip Galvanized Or Painting Fabrication Prefabricated
High Light

Q345 Galvanized Steel Frame

,

ISO9001 Galvanized Steel Frame

,

Q345 galvanised steel frame
Leave a Message
Product Description

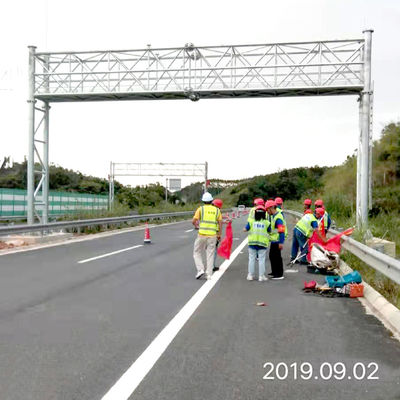

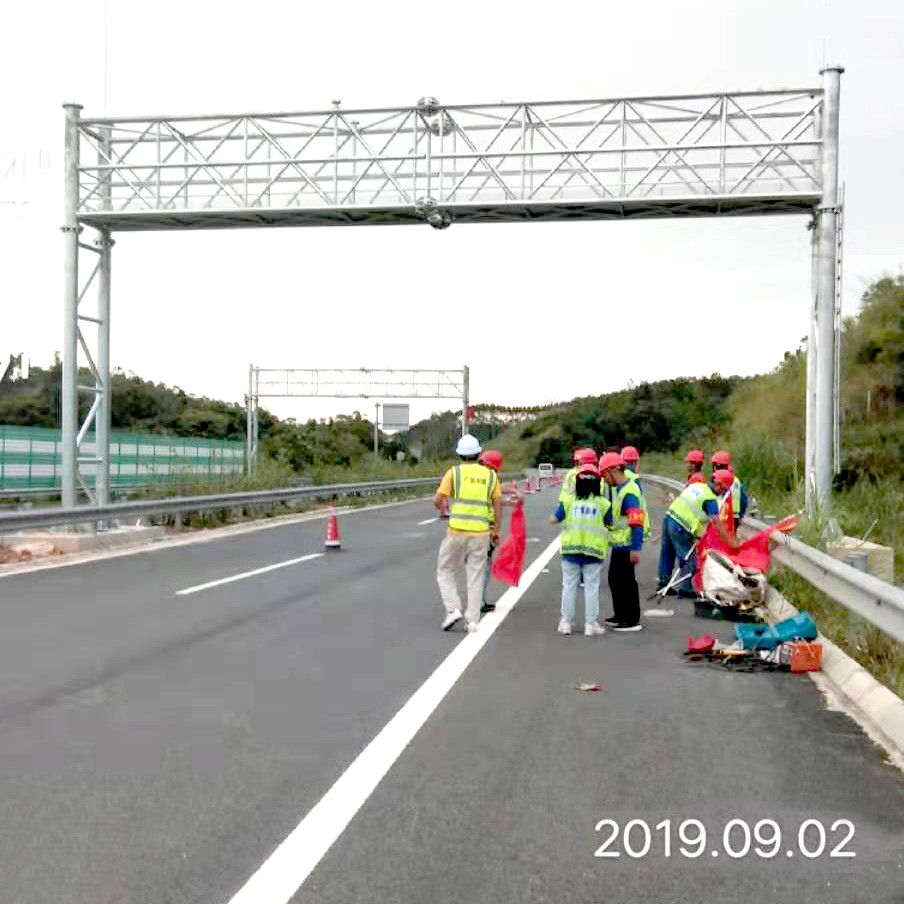

Large Scale Q345 Galvanized Steel Frame For Traffic Facilities



Large scale Galvanized Steel Structure and Gantry Frame for Traffic facilities



Advantage:
1. Customizable: single-sided, double-sided, three-sided or four-sided; landscape or portrait; parallel or V-shaped
d face; square, rectangular, round or oval
2. The structure is safe and firm: drawings approved by professional design institutions; wind resistance can reach more than 150KM/H
3. Quality control: follow the ISO standard quality management system
4. Inspection: professional inspection agency
5. Surface finish: hot-dip galvanizing does not corrode and rust; save maintenance costs; increase the service life of billboards



Specifications



Material Tubular steel pipes, angular steel plates, flat steel plate or solid steel bars and rods, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 2m to 120m, customized to requests
Design structural steel gantry frame
Structure free standing structure
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting flanges
Configuration Foundations, anchoring bolts, gantry sections, bolts and nuts
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications traffic signal control and monitor facilities, highway/roadway billboards,signs, LED display, traffic lights, CCTV cameras etc.





Large Scale Q345 Galvanized Steel Frame For Traffic Facilities 0





All the steel structures are customized and prefabricated according to customer's designs, specifications and drawings.



Large Scale Q345 Galvanized Steel Frame For Traffic Facilities 1

Factory plant transmission rail steel structures

Large Scale Q345 Galvanized Steel Frame For Traffic Facilities 2
