Highway Traffic Signs Galvanized Steel Beams Q345 low carbon
| Place of Origin | Guangzhou, China |
|---|---|
| Brand Name | GUANGXIN |
| Certification | ISO9001 |
| Model Number | GIS-007 |
| Minimum Order Quantity | 1 set |
| Price | USD2.18 per kilogram |
| Packaging Details | plastic sheets |
| Delivery Time | 20-25 days |
| Payment Terms | T/T, L/C, Western Union, MoneyGram |
| Supply Ability | 1000 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Galvanized Steel Beams | Material | Steel Channel Beams And Plates Or Pipes |
|---|---|---|---|
| Grade | Q235B, Q235B Or Specified Steel | Structure | Customized To Customer's Designs And Drawings |
| Dimensions | Customized To Customer's Specifications And Drawings | Surface Finish | Hot Dip Galvanized Or Painting |
| Fabrication | Prefabricated | ||
| High Light | Q345 Galvanized Steel Beams,Q235 Galvanized Steel Beams,Q345 Steel channel beams |
||
Product Description
Highway Traffic Signs Galvanized Steel Beams Q345 Low Carbon
Galvanized Steel Gantry Structure for Highway Traffic Signs and Monitor Facilities
Galvanized Steel Gantry Frame and Structures for mounting traffic lights, CCTV cameras, billboards, LED displays etc.
Customized Steel Structures for highway traffic gantry frame
Tubular Steel pole and gantry tower for mounting traffic signs, signal lights, monitor cameras and billboards or LED displays.
We're professional manufacturer of steel structures and frames with Class 3 Engineering Contractor certification and ISO9001 Quality management system certifications. We've been specializing in producing steel towers, poles and steel frames for more than 10 years since 2009. We can produce the communication towers and poles, light poles and towers, artificial tree camouflaged towers, traffic management gantry frames, billboard and LED display gantry frames and poles and other steel structures according to customer's designs, drawings, specifications and requirements.
Specifications
| Material | Tubular steel pipes, angular steel plates, flat steel plate or solid steel bars, bolts and nuts |
| Steel Type | Weldable low carbon structural steel |
| Steel Grade | GB Q235, Q345, BS 4360, ASTM A36 etc. |
| Yield Strength | Fy≥235MPa |
| Tensile Strength | Fu≥400MPa |
| Elongation | σ≥20% |
| Surface Finish | Hot dip galvanization |
| Galvanized layer | T≥65μm |
| Height | 2m to 120m, customized to requests |
| Design | structural steel gantry frame |
| Structure | free standing structure |
| Supply mode | CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down) |
| Fixing/Fastening | Bolts and nuts, connecting flanges |
| Configuration | Foundations, anchoring bolts, gantry sections, bolts and nuts |
| Wind Load | 0.35-1.0kN/sqm |
| Lifespan | 20-50 years |
| Warranty | 3 years |
| Applications | traffic signal control and monitor facilities, highway/roadway billboards,signs, LED display, traffic lights, CCTV cameras etc. |

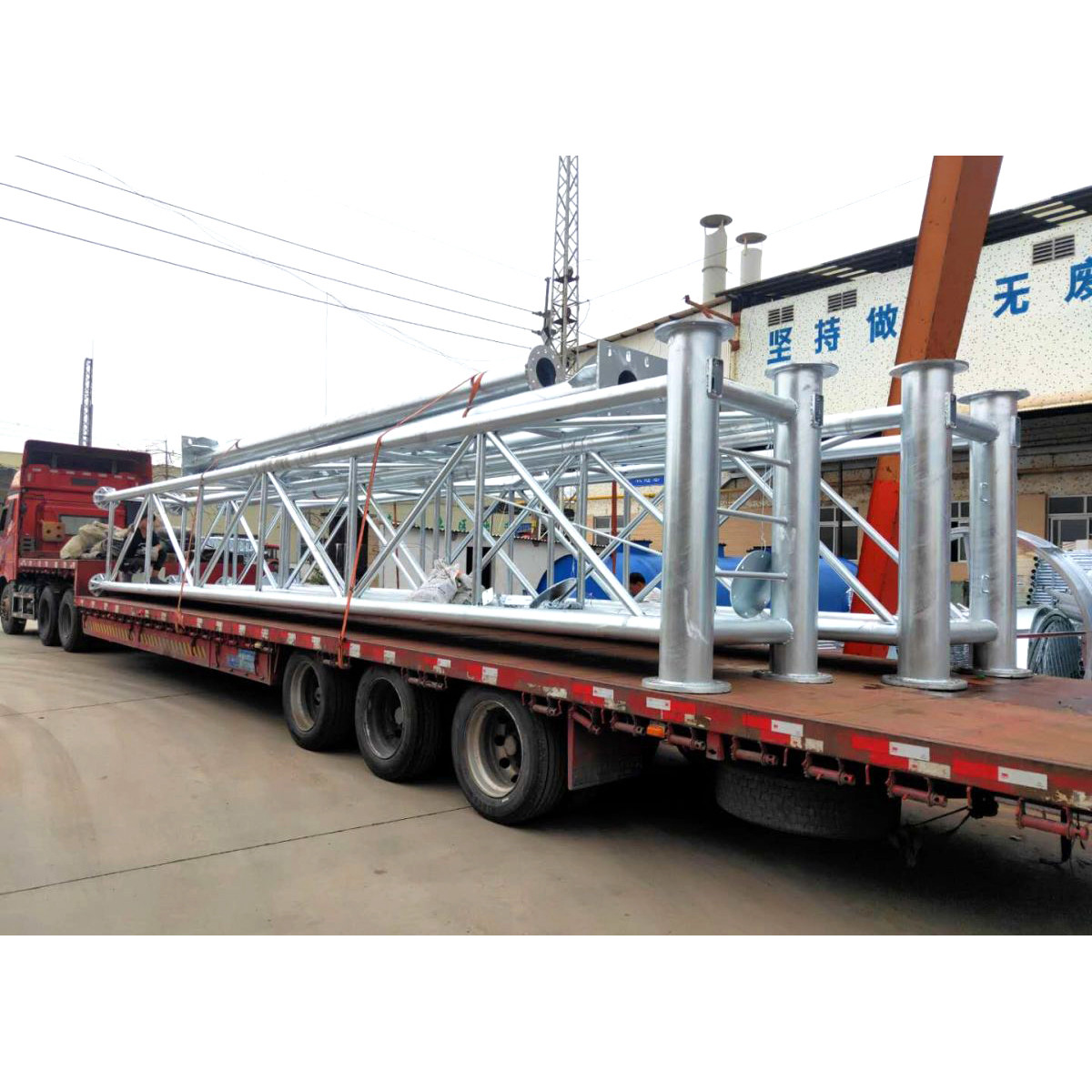

Galvanized steel Lattice Gantry for mounting highway traffic signs, signal lights, CCTV cameras and Display Screen
All the steel structures are customized and prefabricated according to customer's designs, specifications and drawings.
