Self Supporting Galvanized Electric Transmission Tower 30m Distribution

  • Self Supporting Galvanized Electric Transmission Tower 30m Distribution
Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number PTT-031
Minimum Order Quantity 1 set
Price USD998-1998 per set
Packaging Details wooden pallet and plastic bubble sheets
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Electric Transmission Tower Material Weldable Structural Angle Steel Plates Or Pipes
Surface Finish Hot Dip Galvanization Height 30m Or Customized Height
Wind Load 0.35-0.85kN/sqm Warranty 3 Years
Lead Time 20-30 Days Applications Power Transmission And Distribution Wires And Calbes Mounting
High Light

Q345 Electric Transmission Tower

,

30m Electric Transmission Tower

,

30m Q345 tubular steel tower
Leave a Message
Product Description

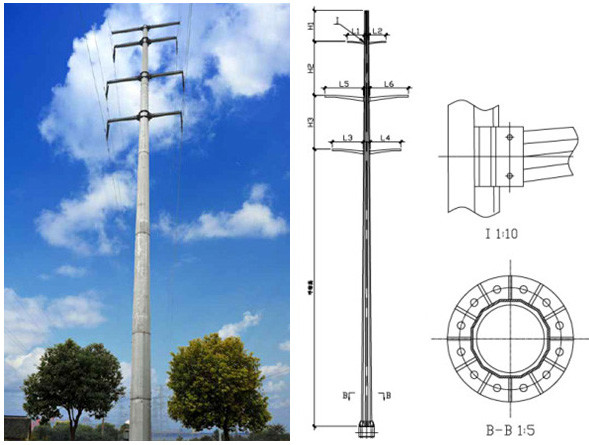

Self Supporting Galvanized Electric Transmission Tower 30m Distribution



Self-Supporting Galvanized Tubular Steel Power For Power Transmission And Distribution



High Mast Hot Dip Galvanized Tubular Steel Power Grid Transmission and Distribution Tower

30-70m high mast Angle Steel Power Transmission and Distribution Tower

25-50m High Mast Tubular Steel Pole for power transmission and distribution



So the most popular Electric Transmission Tower is made from tubular pipes and angular steel plates. The steel pipes are made for tower legs, angular steel plates are made for bracings (support members) and flate steel plates for connectors. The steel pipes are welded with flanges at each end for connection. All the parts of tower are prefabricated in CKD (completel knocked down) steel members ready for installation. When you install the tower, just fix the steel pipes to foundations by bolts and nuts and then connect the angular steel plate bracings to the pipes via welded connecting plates with bolts and nuts. In CKD way of fabrication, the cost is lower and shipping cost is also much lower because you can ship more materials in a container or truck.



The structure of Tubular Transmission Tower is generally composed of foundation anchoring bolts (cage frames), sections of tower body, 1 to 5 platforms, mountning brackets, lightning arrest or protection rod, ladder, earthing plates, anti-fall safety system (external cage structure) and fasteners (such as clamps, clips, bolts and nuts etc.). The design, structure and height of telecommunication towers can be customized according to requirements and drawings.





Specifications



Material Steel pipes, Angle steel plates, flat steel plates, bolts and nuts  Electric Transmission Tower
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure Multiple platforms and brackets for mounting power cables or wires, customized to requests.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.



SST: Self-supporting Steel Tower



Self-supporting steel tower is the most popular tower for communication or power transmission and distribution applications. It’s generally designed for 3 legs or 4 legs, composed of galvanized tubular steel pipes and angular steel plates by welding and fastening with bolts and nuts. With height of 35m to 100m, the steel lattice towers are widely used for mounting communication macrocell stations and power transmission or distribution wires or cables.



Self-supporting Galvanized Steel Power Transmission and Distribution Tower



Self Supporting Galvanized Electric Transmission Tower 30m Distribution 0

3 legged Tubular Steel Communication Antenna tower
