Q345 Galvanised Street Light Pole 35m Height Highway Lighting Pole

Place of Origin Guangzhou, China
Certification ISO9001
Model Number SLP-021
Minimum Order Quantity 10pcs
Price USD198-2038 per piece
Packaging Details Plastic Bubble sheets and pearl wool sheets
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 5000pce monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Highway Lighting Galvanised Street Light Pole Material Weldable Structural Carbon Steel
Grade Q235B, Q235B Or Specified Steel Available Height 3m To 45m
Shape Straight Round, Conical, Polygonal, Rectangular Etc. Wind Speed 50-260m/s
Surface Finish Hot Dip Galvanization And Powder Or PVDF Coating Color White, Silver, Grey Or Specified Colors
High Light

35m Galvanised Street Light Pole


Q345 Galvanised Street Light Pole


Q345 Highway Lighting Pole

Leave a Message
Product Description

Q345 Galvanised Street Light Pole 35m Height Highway Lighting Pole​


Galvanized Steel Area Street Light Pole For Highway Lighting



Winding steel plate

The raw material are made of high-quality Q235 steel plate,which can effectively guarantee the strength of each light pole.

the strong productivity and technical strength can meet the diverse needs of customers and can be customized for production


Led Street Light Pole Specifications


Descriptions Steel poles for mounting lights, CCTV camera, guideboards, billboards etc.
HS Code 7308900000
Material Low carbon weldable structural steel
Grade GB Q235, Q345, BS4360, ASTM A36 etc.
Yield Strength 235-355MPa
Height 5m to 35m or other specified height
Thickness 4mm to 15mm, depending on height of pole.
Pole Shape Conical/tapered, straight round/cylindrical, square or rectangular, polygonal etc.
Diameter or Dimensions Subject to height of pole and required mechanical properties.
Design Single, dual or multiple straight or curved arms and brackets
Surface Finish Hot dip galvanization plus powder or PVDF coating (optional)
Galvanization 65-100 Microns
Coating 35-80 Microns
Color Silver, grey, black, white, blue, yellow etc.
Applications Roadways, streets, highways, stadiums, public sqaures, airports, railway stations, communities, parking lots, gardens etc.


Our Products range:


All kinds of steel utilities roadway/highway/street/stadium/garden light poles

A variety of galvanized steel lattice towers for communication or power transmission or distribution

10m-60m high mast steel poles for lighting, landscaping, communication antenna and power transmission or distribution

Custom design Glavanized steel pole and gantry for traffic or advertising signage billboard or LED display

Building steel iron structures etc.



As a professional manufacturer of steel poles and towers, we’re producing all kinds of light poles for a vast range of applications such as street lighting poles, roadway and highway light poles, traffic signal, CCTV monitor and guideboard poles and gantries, signage poles and gantry frames, high mast lighting poles for public sqaures and stadiums etc. In addition, we can also create new designs of poles to meet your aesthetic and functional demands.


The popular steel light poles include tubular steel pole, solar street light pole, conical or tapered light pole, hexagonal or polygonal lighting pole, straight round street light pole and octagonal lighting pole. There are 2 ways of installation of the steel poles, one is directly buried and the other way is fixed to steel frame foundation with anchor bolts by base plate with bolts and nuts.



Q345 Galvanised Street Light Pole 35m Height Highway Lighting Pole 0 Q345 Galvanised Street Light Pole 35m Height Highway Lighting Pole 1

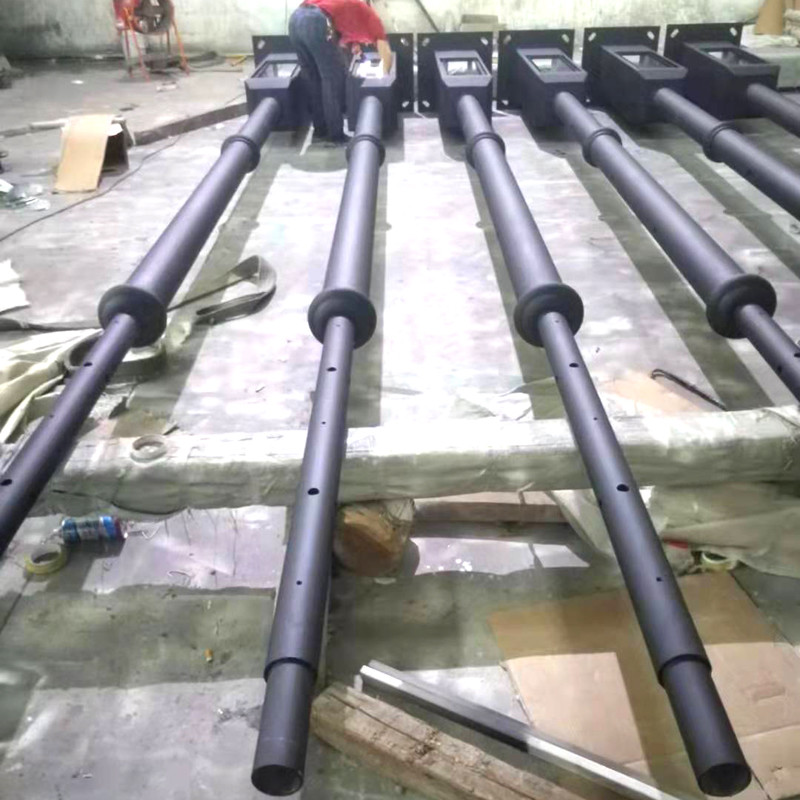

Conical roadway light pole Directly buried installation        Fixed by bolts and nuts with foundation


The steel light poles are designed with single, dual or multiple arms and brackets for mounting lamps, solar panels, CCTV cameras or other facilities as per requests. The designs of arms and brackets are also customized to requirements for different connectors of luminairs or other facilities. With custom special designs, the light poles are not only used for lighting, monitoring or traffic signal control but also for city landscape decorations.


Applicable Examples of Steel Poles

Q345 Galvanised Street Light Pole 35m Height Highway Lighting Pole 2

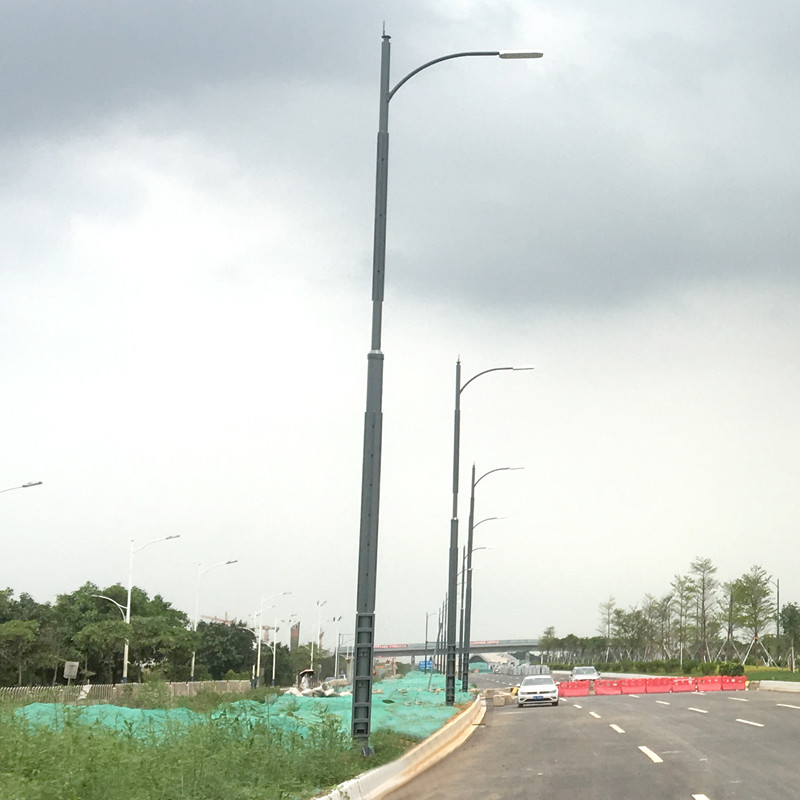

Street Lighting Pole

Q345 Galvanised Street Light Pole 35m Height Highway Lighting Pole 3

Traffic signal light pole and CCTV monitor camera pole
