3 LED Lamps Galvanised Street Light Pole BS4360 PVDF Coated

  • 3 LED Lamps Galvanised Street Light Pole BS4360 PVDF Coated
  • 3 LED Lamps Galvanised Street Light Pole BS4360 PVDF Coated
Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number STLP-003
Minimum Order Quantity 10pcs
Price USD198-2038 per piece
Packaging Details Plastic Bubble sheets and pearl wool sheets
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 5000pce monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Led Street Light Pole Material Weldable Structural Carbon Steel
Grade Q235B, Q235B Or Specified Steel Available Height 3m To 45m
Shape Straight Round, Conical, Polygonal, Rectangular Etc. Wind Speed 50-260m/s
Surface Finish Hot Dip Galvanization And Powder Or PVDF Coating Color White, Silver, Grey Or Specified Colors
Lifespan 20-50 Years Packing Plastic Bubble Sheets And Pearl Wool Sheets
High Light

BS4360 Galvanised Street Light Pole

,

13m Galvanised Street Light Pole

,

15 led street light pole
Leave a Message
Product Description

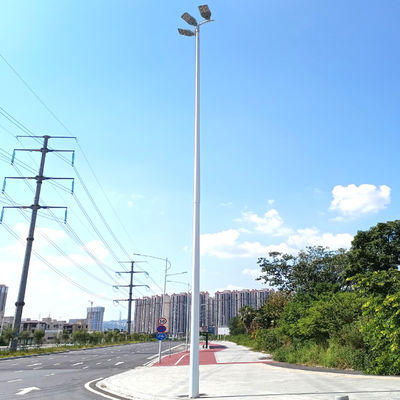

3 LED Lamps Galvanised Street Light Pole BS4360 PVDF Coated



15m Good Quality Galvanized Steel Roadway Light Pole for mounting 3 LED lamps





Color Powder or PVDF coated Highway or Street Light Pole with custom designs of main shaft and arms/mounting brackets

As a professional manufacturer of steel poles and towers, we’re producing all kinds of light poles for a vast range of applications such as street lighting poles, roadway and highway light poles, traffic signal, CCTV monitor and guideboard poles and gantries, signage poles and gantry frames, high mast lighting poles for public sqaures and stadiums etc. In addition, we can also create new designs of poles to meet your aesthetic and functional demands.



The popular steel light poles include tubular steel pole, solar street light pole, conical or tapered light pole, hexagonal or polygonal lighting pole, straight round street light pole and octagonal lighting pole. There are 2 ways of installation of the steel poles, one is directly buried and the other way is fixed to steel frame foundation with anchor bolts by base plate with bolts and nuts.


Specifications



Descriptions Steel poles for mounting lights, CCTV camera, guideboards, billboards etc.
HS Code 7308900000
Material Low carbon weldable structural steel
Grade GB Q235, Q345, BS4360, ASTM A36 etc.
Yield Strength 235-355MPa
Height 5m to 35m or other specified height
Thickness 4mm to 15mm, depending on height of pole.
Pole Shape Conical/tapered, straight round/cylindrical, square or rectangular, polygonal etc.
Diameter or Dimensions Subject to height of pole and required mechanical properties.
Design Single, dual or multiple straight or curved arms and brackets
Surface Finish Hot dip galvanization plus powder or PVDF coating (optional)
Galvanization 65-100 Microns
Coating 35-80 Microns
Color Silver, grey, black, white, blue, yellow etc.
Applications Roadways, streets, highways, stadiums, public sqaures, airports, railway stations, communities, parking lots, gardens etc.





There are various designs of the light poles to make special landscapes of the city. We can make the light poles according to your designs and drawings.

Material: Galvanized Steel pipes and plates
Steel Grade: Q235B, Q345B or specified grade
Surface Finish: Hot Dip Galvanizing and Powder or PVDF Coating
Color: Silver, Grey, White, Golden, Blue etc.



The steel light poles are designed with single, dual or multiple arms and brackets for mounting lamps, solar panels, CCTV cameras or other facilities as per requests. The designs of arms and brackets are also customized to requirements for different connectors of luminairs or other facilities. With custom special designs, the light poles are not only used for lighting, monitoring or traffic signal control but also for city landscape decorations.



Applicable Examples of Steel Poles

3 LED Lamps Galvanised Street Light Pole BS4360 PVDF Coated 0

Street Lighting Pole



3 LED Lamps Galvanised Street Light Pole BS4360 PVDF Coated 1

Smart City and Intelligent Traffic Signal and Lighting Pole Management System (all in 1 digital information solution)



3 LED Lamps Galvanised Street Light Pole BS4360 PVDF Coated 2

Traffic signal light pole and CCTV monitor camera pole
