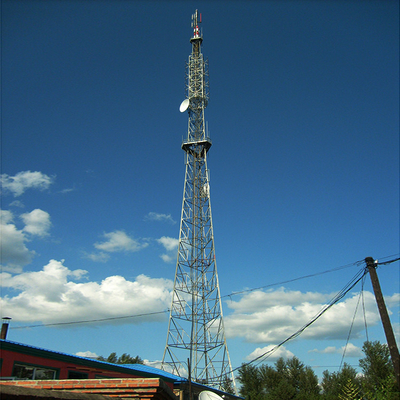

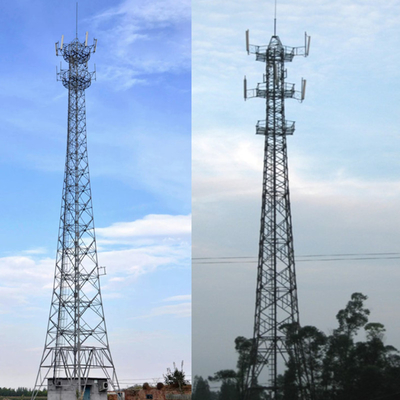

3 Or 4 Legs Lattice Guyed Mast Tower Easy And Fast Installation
Product Summary
Guyed mast lattice tower No. Description Detailed Specification and Major design Parameters 1 Design Code ANSI/TIA222G,H or European Standard and others 2 Design Loading 1. Antenna load area as per specified by Clients worldwide. 2. Wind speed as per requested by the clients. 3. Deflection & Twist ...
Basic Properties
Place of Origin:
CHINA
Brand Name:
HL
Certification:
AWS D1.1
Model Number:
HL-025
Trading Properties
Minimum Order Quantity:
1 set
Price:
USD 850-1080/Ton
Payment Terms:
L/C, T/T
Supply Ability:
95,000 ton per year
Product Description
Guyed mast lattice tower
| No. | Description | Detailed Specification and Major design Parameters |
| 1 | Design Code | ANSI/TIA222G,H or European Standard and others |
| 2 | Design Loading | 1. Antenna load area as per specified by Clients worldwide. 2. Wind speed as per requested by the clients. 3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients. |
| 4 | Structure Classification | II, III |
| 5 | Hot-dip galvanization | ISO 1461 2009, ASTM A123 |
| 6 | Steel Grade | 1. High strength low alloy structural steel: Q355 or equivalent with ASTM Gr50 or S355JR 3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR |
| 7 | Bolts and Nuts | Mainly ISO 898 grade 6.8 and 8.8 bolts |
| 8 | Foundation | 50KPa, 100KPa, 150KPa etc soil bearing capacity |
| 9 | Tower Type |
1. 3 or 4 Leg Self supported Angular Towers 9. Street lightning pole 10. Electric transmission line towers 11. Subustation gantry 12. All kinds of other steel structures |
| 10 | Warranty | 1. Tower structures: 15 years 2. Camouflaged towers a. Barks: 10 years b. Branches and leaves: 3 years |
| 11 | Return Period | 50 Years |
| 12 | Accessories | 1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint 2. Aviation Light: Double Light and Single Light & Solar Light 3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients. 4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients. 5. Fencing: Palisade fence and wire mesh fence with razor wires and gate. 6. Fall arrest system: GB and CE certificate fall arrest system. 7. Canopy and Generator Cage: as per specified by clients |
Product Details
Highlight:
Guyed mast lattice tower
,4 legs lattice guyed mast tower
,3 legs tower guyed mast
Material:
Steel
Height:
0-300m
Structrue Type:
3 Or 4 Legs Lattice
Certification:
SGS, CE, ISO
Warranty:
15 Years
Surface Treatment:
HDG Or Painting
Lightning Protection:
Included
Installation:
Easy And Fast
Lifetime:
Minimum 20 Years
Foundation Type:
Concrete Base Or Anchor Bolts
Platforms:
1-3
Maintenance:
Low Cost
Antenna Load:
As Per Customer`s Requirement
Painting Color:
As Per Customer's Requirement
Climbing Ladder:
External Or Internal
Wind Resistance:
Up To 340 Km/h
Foundation:
H Profile Or Channel Steel
Character:
Guy Wire As Anchoring
