30M CCTV Antenna Telecommunication Mobile Tower Up to 250 km/h

  • 30M CCTV Antenna Telecommunication Mobile Tower Up to 250 km/h
Place of Origin Guangzhou
Brand Name Guangxin
Model Number GX-5663G
Minimum Order Quantity 1set
Price USD1880-2100
Packaging Details Cotton sheets or cloth package by bundle
Delivery Time 20-30days
Payment Terms Western Union, L/C, T/T
Supply Ability 300ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification ISO9001:2008 SGS COC Product Name Telecommunication Mobile Tower
Steel Structure HDG Lattice Steel Tower Material EN10025: S355JR, S355J0,S355J2
Braces GB/T 700:Q235B Allowable Deflection 0.5 ~1.0 Degree @ Operational Speed
Tower Type Self Supporting Angular / Tubular Design Wind Speed 35/210kph
Design Of Pole Against Earthquake Of 8 Grade Connection Type Parts For Connection Or Installation Will Be Provided
Impact Strength KV (J) 27(20°C)---Q345B(S355JR) Method CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
Galvanization Standard Of Steel Sections ISO 1461 Or ASTM A123
High Light

CCTV Antenna Telecommunication Mobile Tower

,

30M Telecommunication Mobile Tower

,

HDG Lattice Steel Tower
Leave a Message
Product Description

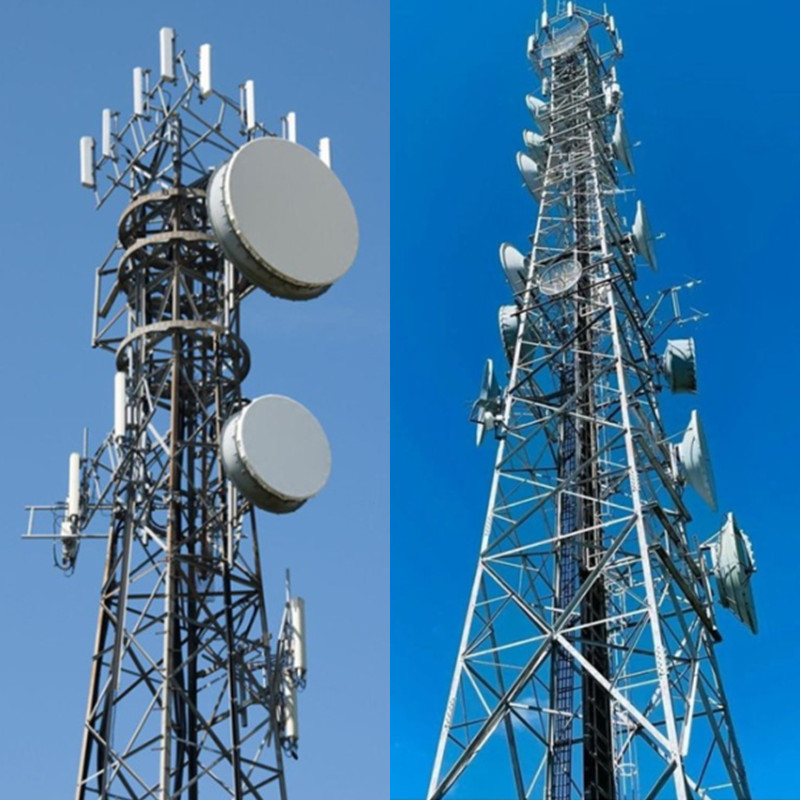

30M CCTV Antenna Telecommunication Mobile Tower Up to 250 km/h





Telecommunication mobile tower classification:



a) Classification by material: angle steel towers, steel pipe towers.



b) Classification by structure: four-posted angle steel towers, three-column steel tube towers, single-tube towers (single tube towers), and pull-line towers.



c) According to the support methods: self-standing towers, pull-line towers;



d) According to location: ground tower, roof tower;



e) The types of communication towers of our company: general communication towers, beautification communication towers, bionic tree

communication towers, and landscape communication towers.



Specification of Telecommunication Mobile Tower Accessories:



Material Tubular Steel, Angle steel plates, Flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.






Why Choose Us



1.You can save plenty of money. (Our products are high-quality, their survice life usually more than 50 years.)
2. You can save lots of time. (We try our best to serve customers and reply within 12 working hours.)
3. You don't have any worry. (We have our own producing and designing team, impeccable after-sales service.)
4. You are wise. (We can give you the most reasonable price without agent or intermediary.)



Customer Support Services

  • We re specialized in the production, design, installation and maintenance of beautification tower, bionic tree communications tower, anemometer tower, communication tower, telecommunication tower, single tube tower, etc.



  • We undertake the design, manufacturing and construction of all kinds of steel structure.



  • Our company has rich experience more than 20 years and has 10 senior engineers and five professional production lines.



  • Fast delivery time 20 days,high efficient supply ability 1000 tons monthly, so we are sure to deliver your goods strictly as you required and meet your order quantity to the fullest.



FAQ



1. Is the tower's structure unitary?
No, we can design and produce it as customer's request.


2. Manufacturer or trade company?
We are manufacturer and have own factory, and welcome to visit our factory.


3. Delivery time?
Usually, within 20 days. And we produce and ship product according to buyer’s request.


4. How long does the service life for steel tower?
We can assured more than 30 years’ service life.


5. For assembly, is it very complex and is there a assembly book or guidance?
We will provide assembly drawing with shipping the cargo.
