Low Carbon Mild Steel Solar Panel Support Structure Photovoltaic Power Farm Structure

Place of Origin CHINA
Brand Name GUANGXIN
Certification ISO9001
Model Number SOLAR-STEEL-06
Minimum Order Quantity 50 tons
Price USD100 to USD150 per ton
Packaging Details bundles
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 1000 tons monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Structural Low Carbon Mild Steel Surface Finish Hot Dip Galvanization
Design Customized To Drawings Dimensions Customized To Drawings
Application Solar Power Farms, Photovoltaic Power Plants
High Light

Mild Steel Solar Panel Support Structure

,

Low Carbon Solar Panel Support Structure

Leave a Message
Product Description

Solar Panel Galvanized Steel Structure and Photovoltaic Power Farm Structure



We're professional manufacturer of steel structures designed to support solar panels applicable to all types of applications such as photovoltaic systems in parking garages, solar farms, carports, canopies, charging stations, ground mounts, and roof mounts. Our projects range from highly architectural solar canopies to large institutional, commercial and utility scale solar installations.



As a renewable and sustainable engergy, solar power is more and more popular and applicable on the world, solar panel photovoltaic systems are very important to build a power station. In order to support the solar panels, a good steel structure is required. We're the right supplier for making such steel structures from China.



The solar panel photovoltaic support and mounting structures are genereally made of I-beams, C-type beams, CHS, SHS and RHS beams and other steel materials with customized drawings and designs.



Low Carbon Mild Steel Solar Panel Support Structure Photovoltaic Power Farm Structure 0



Technical Specifications of Galvanized Steel Materials for making solar panel support structures



Galvanized Steel structures
1. Material
Weldable Structural Low Carbon Steel Plates or Tubes
2. Grade Main structure Braces
GB/T1591:Q345B GB/T 700:Q235B
ASTM A572 Gr50 ASTM A36
EN10025: S355JR, S355J0,S355J2 EN10025: S235JR, S235J0,S235J2
3. Design Wind Speed Up to 250 km/h
4. Allowable deflection 0.5 ~1.0 degree @ operational speed
5. Tension strength 470~630 MPa 360~510 MPa
6. Yield strength 355 MPa 235 MPa
7. Elongation (%) 24 20
8. Impact strength KV (J) 27(20°C)---Q345B(S355JR) 27(20°C)---Q235B(S235JR)

Bolts & Nuts
9. Grade Grade 4.8, 6.8, 8.8
10. Standards for mechanical properties
10.1 Bolts ISO 898-1
10.2 Nuts ISO 898-2
10.3 Washers ISO 6507-1
11. Standards for Dimensions
11.1 Bolts DIN7990, DIN931, DIN933
11.2 Nuts ISO4032, ISO4034
11.3 Washers DIN7989, DIN127B, ISO7091
Welding
12. Method CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
13. Standard AWS D1.1
Galvanizing
14. Galvanization standard of steel sections ISO 1461 or ASTM A123
15. Galvanization standard of bolts and nuts ISO 1461 or ASTM A153



Applications



1, Rooftop steel structures of architectural solar heating systems

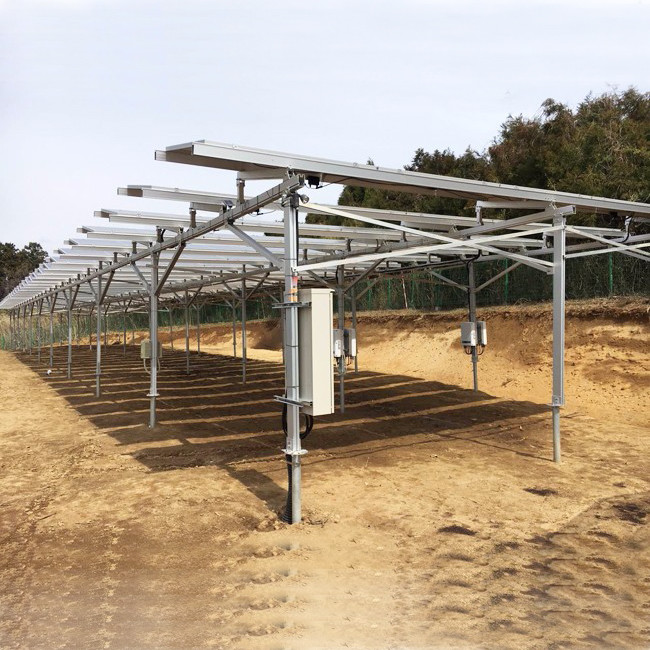

2, Photovoltaics power farm solar structures

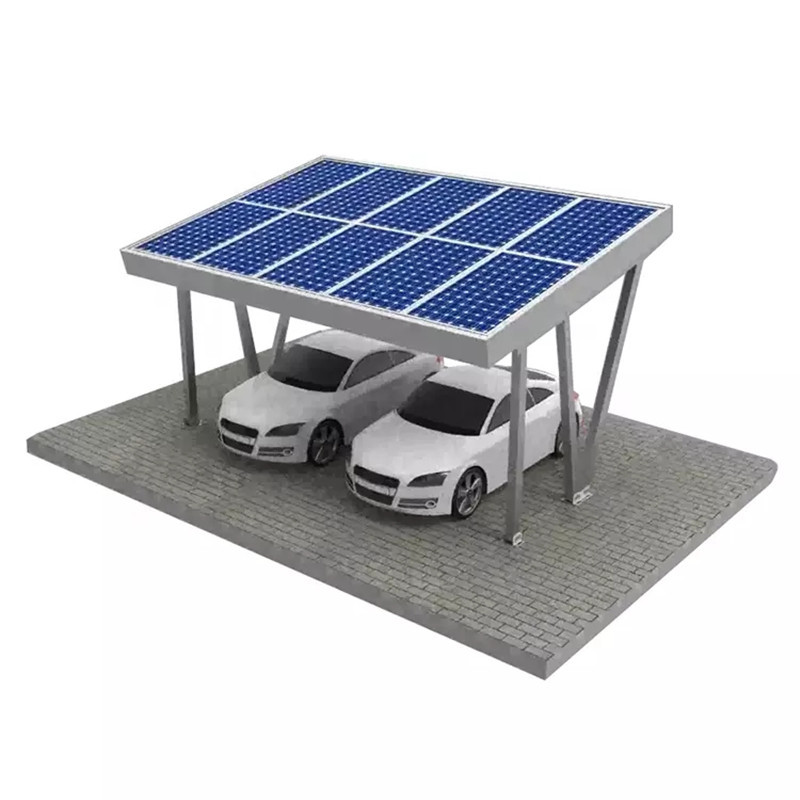

3, Outdoor parking and charging lots

4, Large public utility engergy solar panel support structures

5, Other steel structural applications.



Guangzhou Guangxin Communication Equipment Co., Ltd. is a  professional manufacturer of all kinds of steel structures including telecom towers, power transmission towers, wind turbine towers, solar panel structures, traffic gantry frames and other related products. We can fabricate these steel works according to customer's designs, drawings and requiements. We're providing OEM/ODM fabrication services with good quality and fast delivery.
