Conical 5M Commercial Light Poles Q235B Weldable Structural Steel

  • Conical 5M Commercial Light Poles Q235B Weldable Structural Steel
Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number GX-1327
Minimum Order Quantity 100pcs
Price USD40-80 per piece
Packaging Details air bubble sheet package
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 2000 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Decorative Street Light Poles Galvanization Standard ISO 1461 2009, ASTM A123
Surface Finish Hot Dip Galvanization Plus Powder Coating(optional) Color Blue Or White Or Red Or Grey
Welding Method CO2 Shielded Arc Welding & Submerged Arc Welding(SAW) Shape Octagonal/ Conical/Round
Applications Traffic Monitor, Public Security CCTV, Parking Lotsurveillance Etc. Payment 30% Deposit And 70% Before Shipment
Transportation By Sea To Clients Destination Port
High Light

5M Decorative Street Light Poles

,

Q235B Steel Poles For Mounting Lights

,

Structural Steel Commercial Light Poles
Leave a Message
Product Description

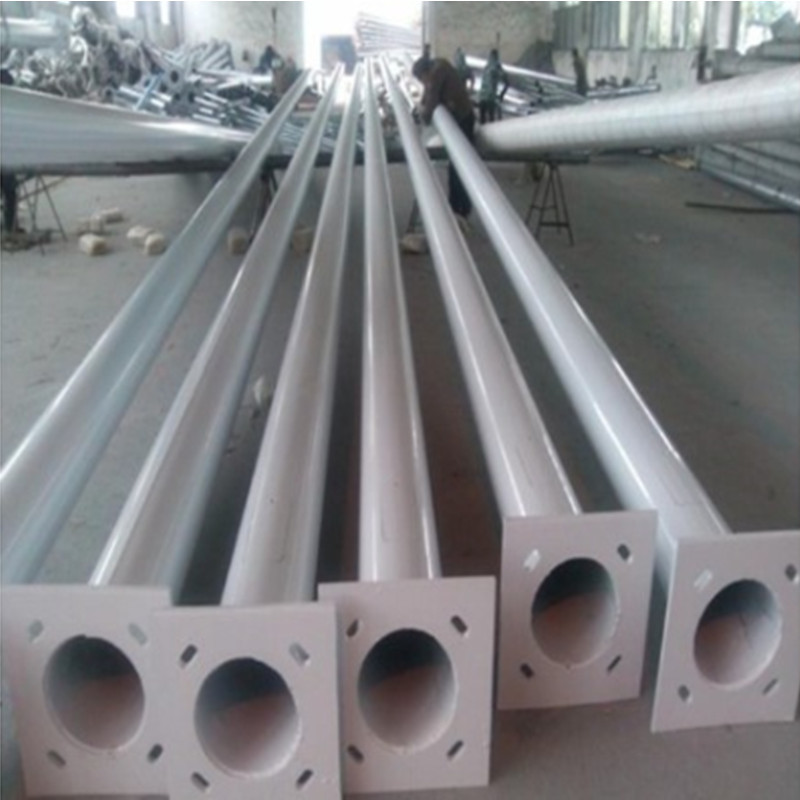

Conical 5M Commercial Light Poles Q235B Steel





Specification of Commercial Light Poles:

Descriptions Steel poles for mounting lights, CCTV camera, guideboards, billboards etc. Double Arm Street Light Pole
Material Low carbon weldable structural steel
Grade GB Q235, Q345, BS4360, ASTM A36 etc.
Yield Strength 235-355MPa
Height 5m to 12m or other specified height
Thickness 4mm to 15mm, depending on height of pole.
Pole Shape Conical/tapered, straight round/cylindrical, square or rectangular, polygonal etc.
Diameter or Dimensions Subject to height of pole and required mechanical properties.
Design Single, dual or multiple straight or curved arms and brackets
Surface Finish Hot dip galvanization plus powder or PVDF coating (optional)
Galvanization 65-100 Microns
Coating 35-80 Microns
Color Silver, grey, black, white, blue, yellow etc.
Applications Roadways, streets, highways, stadiums, public sqaures, airports, railway stations, communities, parking lots, gardens etc.

Feature of Commercial Light Poles:


1.Mast material: Q235
2.Anti-corrosion protection: hot dip galvanization/hot dip galvanization and powder coating

3.Brackets:Single or double brackets are in the shape and dimension as per customers requirement

4.Welding:Welding confirms with international welding standard of CWB

5.Mast assembly: no welding on site/slip joint

6.Base plate mounted:Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement

7.Ground mounted:The length buried underground as per customers requirement





FAQ



1. Is the Pole's structure unitary?
No, we can design and produce it as customer's request.


2. Manufacturer or trade company?
We are manufacturer and have own factory, and welcome to visit our factory.



3. How long does the service life for steel pole?
We can assured more than 20 years’ service life.


4. For assembly, is it very complex and is there a assembly book or guidance?
We will provide assembly drawing with shipping the cargo.



5. Which city are you lcated?

Our factory is located at Guang Zhou city in China.



6. Delivery time?
Usually, within 20 days. And we produce and ship product according to buyer’s request.
