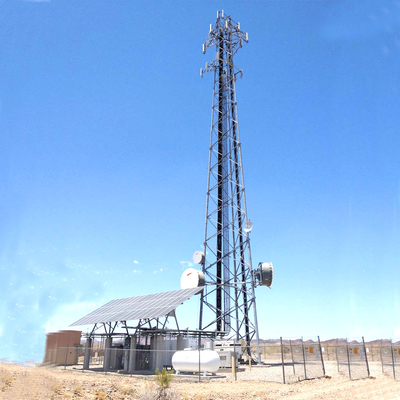

Q345B Telecom Wind Turbine Tower 4 Or 3 Legs 120m Height

Place of Origin China
Brand Name GUANGXIN
Certification ISO9001
Model Number SST-442
Minimum Order Quantity 1 set
Price USD5,000 to USD50,000 per set
Packaging Details pallet
Delivery Time 20-60 days subject to order quantity
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 100 sets monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Low Carbon Structural Mild Steel Steel Grade Q235B, Q345B, ASTM 572, A36 Etc.
Basic Surface Finish Hot Dip Galvanization Additional Surface Finish Color Powder Coating Or Painting
Yield Strength Not Less Than 235MPa Wind Load 0.35~1kN/m²
Wind Speed 50-360km Per Hour Design Lifespan 50 Years
Warranty 3 Years Delivery Time 20-60 Days, Depending On Order Quantity
Origin Guangzhou, China Loading Port Nansha, Guangzhou Or Shekou Shenzhen
High Light

Telecom Wind Turbine Tower

,

Q345B Wind Turbine Tower

,

3 Legs Wind Turbine Tower

Leave a Message
Product Description

Self-support Galvanized Steel Telecom or Wind Turbine Tower

4 or 3 Legs Self-support Galvanized Steel Lattice Mast or Tower

Self-supporting Galvanized Steel Telecommunication Tower

Greend Field Mounted Free Standing Steel Communications Lattice Mast

Custom Designed and Prefabricated CKD Delivered Heavy Duty Steel Mobile Phone GSM and 5G Antenna Tower

Chinese Leading Supplier of All kinds of galvanized steel Lattice masts, towers and mono poles



Guangzhou Guangxin Communication Equipment Co., Ltd. was founded in 2009, starting as an OEM and ODM manufactory for CHINA TOWER CORPERATION which is the largest design and supplier of communication towers and other applicable towers in China. After more than 10 years of fast growing and research, we have become one of leading manufacturers of all kinds of steel towers and poles in China.



Our Product Range



1, Galvanized steel Telecommunication lattice towers

2,  Wind turbine towers, lattice masts and poles

3, Power transmission and distribution line towers and poles

4, Artificial tree or fiberglass grille shroud camouflaged antenna towers

5, Street light poles, roadway and highway lighting columns or posts

6, High mast stadium and sports field lighting towers

7, Traffic signal light, surveillance CCTV camera and sign poles, cantilievers and gantry frames

8, Other steel structures

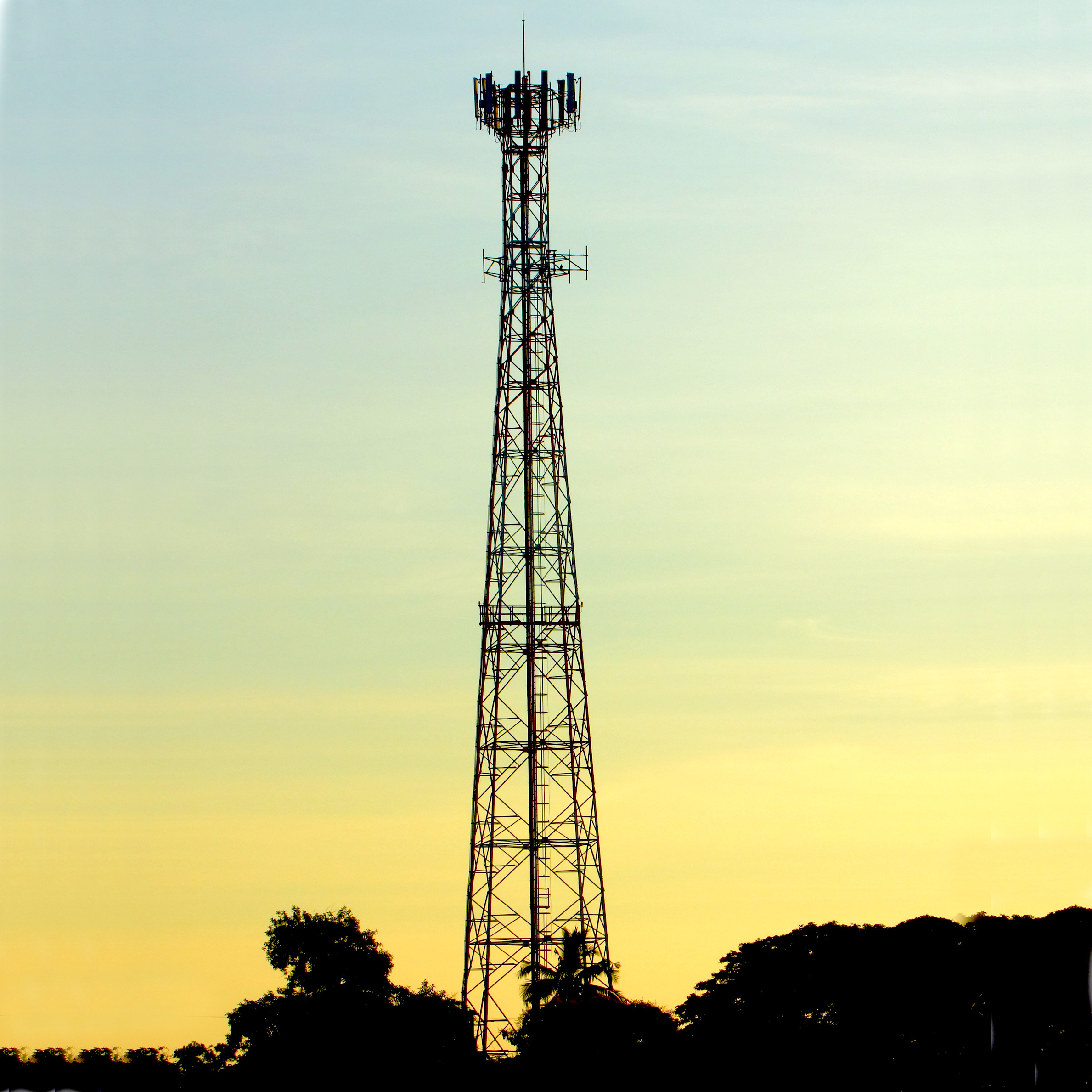

Q345B Telecom Wind Turbine Tower 4 Or 3 Legs 120m Height 0

Communication tower with 2 work platforms for mounting 12 antennas and RRU's





Category of Galvanized Steel Towers and Masts for communications:



1, Four legs lattice tower: made of angular steel plates or tubular steel tubes or pipes or both

2, Three legs lattice tower: made of angular steel plates or tubular steel tubes or pipes or both

3, Bipod and Tripod: steel tube as main post and angle plates as diagonal supports

4, Mono pole

5, Ground field towers

6, Rooftop towers

7, Artificial palm or pine tree monopole for camouflaged antenna  towers

8, Monopole towers with cylindrical fiberglass grille shroud or cover for camouflaged antenna towers.





Specifications



Product Name 3 or 4 legs self-supporting Galvanized Steel lattice mast and tower
Material Structural and weldable low carbon mild steel with hot dip galvanized finish
Place of Origin Guangzhou, China
Material grade and properties

Main structure: GB Q345B or ASTM A572 , Yield Strength ≥ 345 N/mm² (or MPa);

Horizontal and diagonal braces: Q235B or A36 , Yield Strength ≥ 235 N/mm².

Specified material is acceptable.

Material type steel tubes, angular plates, flat plates, rod etc.
Tower Type 3 or 4 legs, self-supporting and free standing, lattice tower or mast
Tower Height 15m to 120m, customized to design requirements
Wind Load 0.35-1 kN/m² (wind speed 50m/s to 100m/s)
Connection Bolts and nuts
Surface finish Hot Dip Galvanization (optional plus painting)
Zinc Coating thickness 45μm-110μm







Descriptions


1. Delivery condition: CKD (completely knocked down) components and parts which are prefabricated for ready installation.
2. Tower structure: steel framed concrete foundations, tower sections, rest platforms and work platforms, clambing ladder, anti-fall arrest, mounting brackets, lightning rod, earthing leads, cable tray etc.
3. Applications: radio communication, wireless communication, mobile telecommunication, TV, military watch, wind tubine, power transmission and distribution etc.

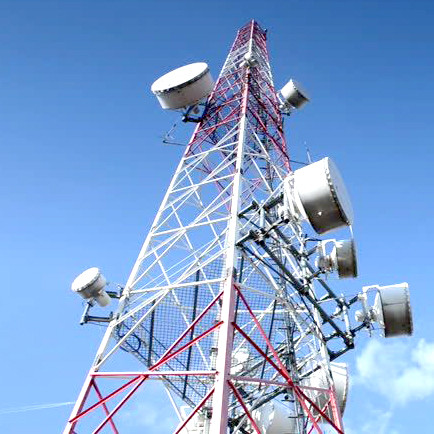

Q345B Telecom Wind Turbine Tower 4 Or 3 Legs 120m Height 1

                                              4-legs Galvanized Steel Wind Trubine Tower





Questions and Answers:



1, Can I customize the towers, poles or other steel structures?



Yes, we can fabricate the towers, poles, building structures and other related products according to your designs, drawings, specifications and requirements.



2, What's your payment terms?



T/T or irrevocable documentary L/C  at sight is accepted for us. The general payment arrangement is 30% advance before production and full payment before shipping by T/T, or L/C issued before production.



4, Can you guarantee the quality?



Yes. The design lifespan of our towers and poles is 50 years



5, Are you exporting to other countries and regions?



Yes, we have exported to many other countries and regions such as USA, Brazil, Chile, Saudi Arabia, Malaysia, Philippines, Macau and many more.



6, What is your delivery time?



20-60 days, depending on the order quantity.



7, How many is the MOQ?



1 set.



8, Where is your factory located?



Tanbu Town, Huadu District, Guangzhou City which is the 3rd largest city in China and the largest city in Southern China, near by Hongkong, Macau and Shenzhen.



Our Partners:



CHINA TOWER, CHINA MOBILE, CHINA TELECOM, CHINA UNION, HUAWEI, NIUSKY, DITO etc.



Manufacturing and service experience: more than 12 years



Certifications: ISO9001:2009, ISO14001, ISO45001, HI-TECH ENTERPRISE, ENGINEERING CONTRACTOR CLASS 3, AAA CREDIT etc.

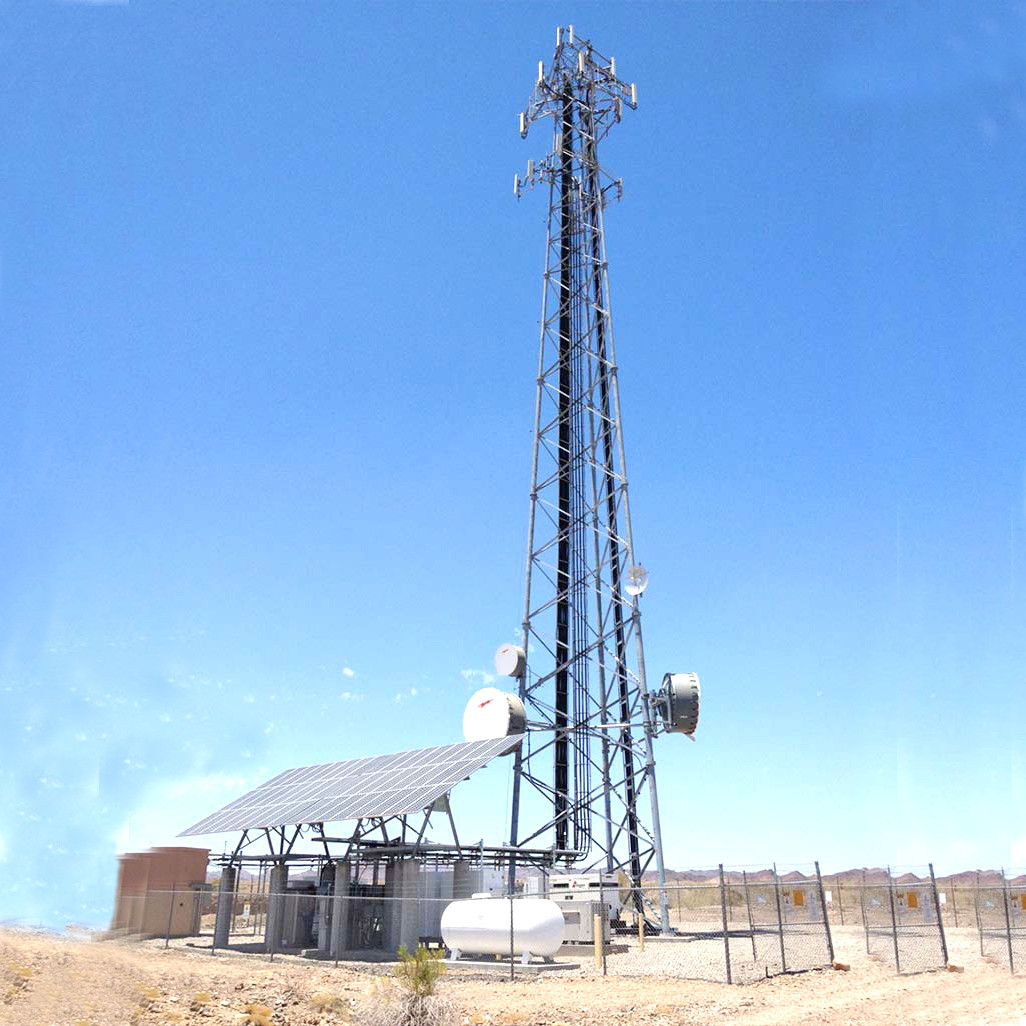

Q345B Telecom Wind Turbine Tower 4 Or 3 Legs 120m Height 2
