Radio Antennas 30 Meter Telecom Tower Connecting Plates Bolts Nuts

  • Radio Antennas 30 Meter Telecom Tower Connecting Plates Bolts Nuts
Place of Origin Guangzhou
Brand Name Guangxin
Model Number GX-5506G
Minimum Order Quantity 1set
Price USD1880-2100
Packaging Details Cotton sheets or cloth package by bundle
Delivery Time 20-30days
Payment Terms Western Union, L/C, T/T
Supply Ability 300ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification ISO9001:2008 SGS COC Surface Treatment Hot-dip Galvanization
Material Q235b Or Q345b Height 30-80M
Tension Strength (Mpa) 360~510 Design Wind Speed Up To 250 Km/h
Welding Method CO2 Shielded Arc Welding & Submerged Arc Welding(SAW) Design Loading As Per Requirement And Specification By Clients Worldwide.
Load Test/destructive Test We Can Arrange It By Government Authority If It Is Necessary And The Cost Of Such Kind Of Test Is Separately From The Tower Pricing. Tower Type Angular Towers, Tubular Towers, Guyed Mast, Monopole Tower
High Light

ISO9001 Certificated Telecom Steel Tower

,

30 Meter Radio Antenna Tower

,

Q345b Steel Radio Antenna Tower
Leave a Message
Product Description

Radio Antennas 30 Meter Tower Connecting Plates Bolts Nuts





Lattice tower is built and designed which connected from single profile frame steel (angle) become a stiff and strong frame shape. This frame tower is able to hold wind pressure, cable strengthening, geographic condition at the area of tower built. Communication tower consists of tower body, platform, lightning rod, ladder, antenna support and other steel components, and by hot galvanized anti-corrosion treatment, mainly for microwave, ultrashort wave, wireless network signal transmission and transmission.



Specification:



Material Tubular Steel, Angle steel plates, flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.

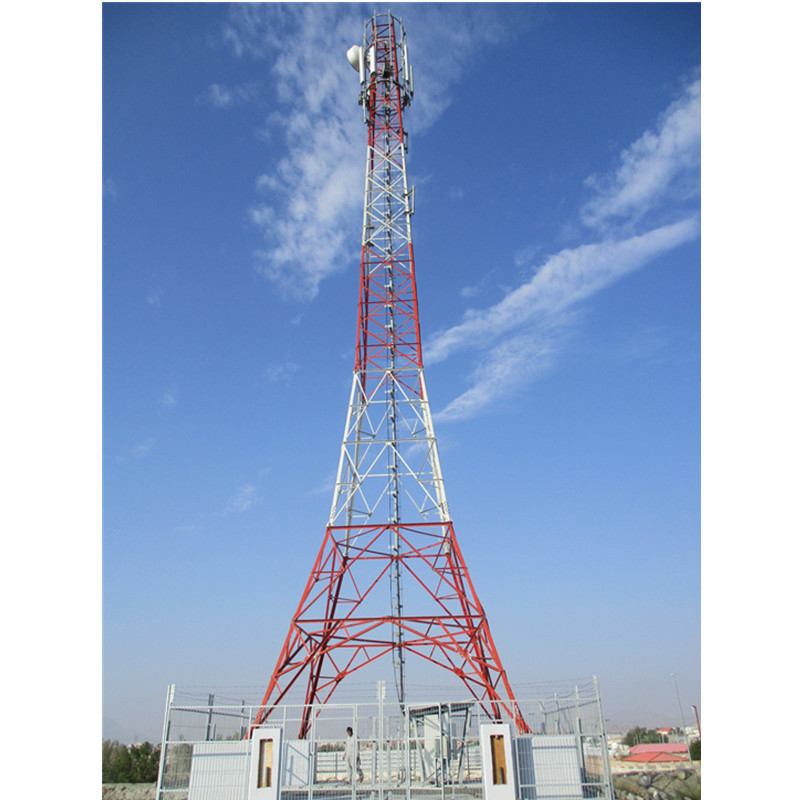

Radio Antennas 30 Meter Telecom Tower Connecting Plates Bolts Nuts 0



Name:Self Supporting Tower/ Angle steel tower
Material:Q235B/Q345B pipe/ angle steel
Height:20-100m
Type:3leg/4leg
Service Time:50 years

Self supporting tower usually is 3leg of 4leg tower, and its material is steel pipe or angle steel. As for the connection, tubular tower is connected by flange, and angle steel tower is connected by nuts and bolts.

Features:

1.Small coefficient of wind load, strong wind resistance.

2.Save land resource, convenient location.

3.Convenient transportation and installation.
