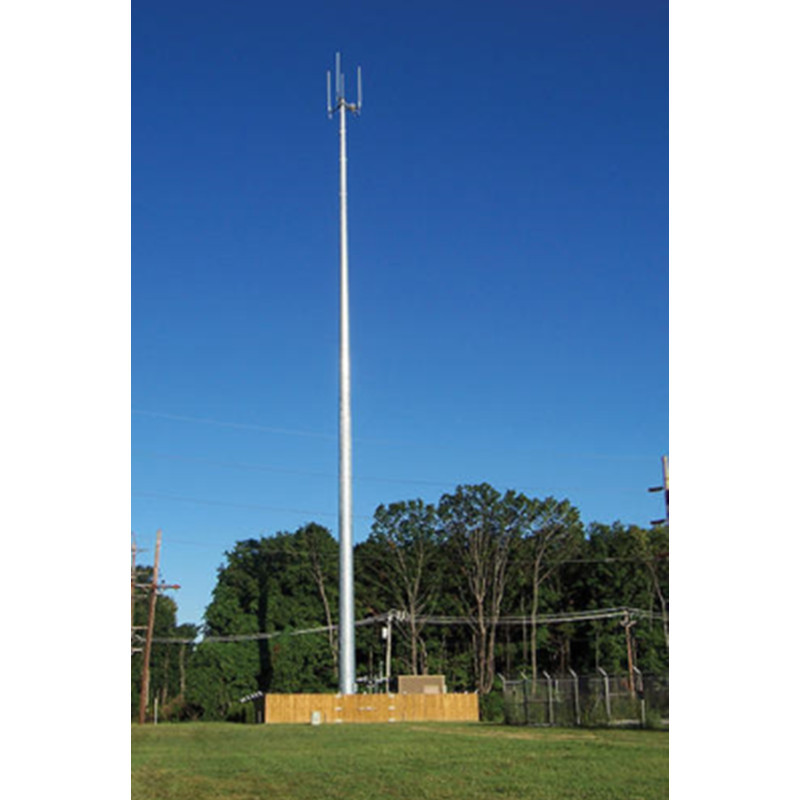

HDG Steel Monopole Single Tube Mono Pole Cellphone Towers ODM

  • HDG Steel Monopole Single Tube Mono Pole Cellphone Towers ODM
  • HDG Steel Monopole Single Tube Mono Pole Cellphone Towers ODM
Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number GX-1518
Minimum Order Quantity 1 set
Price USD1880-19990 per set
Packaging Details plastic bubble sheets
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 500 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name ODM HDG Steel Monopole Single Tube Mono Pole Cellphone Towers Material Certificate Q235B Or Q345B
Steel Structure Single Steel Pipe Height 20-60M
Life Period More Than 25 Years, It Is According To Installing Environment Design Loading As Per Requirement And Specification By Clients Worldwide.
Welding Method CO2 Shielded Arc Welding & Submerged Arc Welding(SAW) Packages Packing With Plastic Paper Or According To Client’s Requirement
Design Wind Speed Up To 250 Km/h Load Test/destructive Test We Can Arrange It By Government Authority If It Is Necessary And The Cost Of Such Kind Of Test Is Separately From The Tower Pricing.
High Light

ODM Single Tube Mono Pole

,

20m Single Steel Pipe Mono Pole
Leave a Message
Product Description

ODM HDG Steel Monopole Single Tube Mono Pole Cellphone Towers









Single tube tower- Monopole tower

Single tube tower,also called monopole tower, is a commonly used type. It belongs to the field of pipe tower technology, including tower body and working platform on top of the tower. At the bottom and on the working platform of the tower, there is a door opening respectively, antenna support is fixed on the fence of the platform.



Telecom monopole/Monopole tower/Steel Monopole



Connection Type: Flange connected and slip joint monopole



Material: Q235B, Q355B, Q420B



Height: up to 50m



Wind Speed: As per design



Design Standard: TIA/EIA-22-G



Certificates: AWS, CWB, ISO9001, ISO14001, OHSAS18001;



Finishing: Hot dip galvanizing(ISO1461 , ASTM123 ), painting, powder coating





Our Advantages
1. Strict quality control system and abundant technical reserves have created world-class products.
2. The factory has completed tens of thousands of project cases so far, so that we have a wealth of technical reserves;
3. Facilitating supports and low labor cost make the product price have great advantages in the world.
4. With a number of patented technologies and a mature drawing and drawing team, you can rest assured of your choice.
5. China Power Grid Certification Level 1 supplier, you can safely choose and cooperate;
6. We are not only manufacturers and suppliers, but also your partners and technical support.




Specification of Single Mono Pole Pipe:



Material Angle steel plates, flat steel plate, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.

Pole/Monopole

Monopole Tower is a kind of tower that consists of one stem or one pole anchored to the ground. According to its cross-section, Monopole Tower is divided in to two types :

  1. Cilcular-pole is a kind of monopole having a cross section/panel diameter similar from bottom to top.
  2. Tapered-pole is a kind of monopole having a varied cross-section diameter size that when the used diameter is more up will be smaller.



The height of Guyed Tower and Monopole are usually lower than the tower transmitter type of self-supporting tower and designed to derives the lighter load from the kind of transmitter tower self-supporting, so that these two kind of towers will not be able to derives heavy load as the antenna which have dimension and heavy large.
