Monopole Telecommunication Tower GSM Antenna Cell Phone Mobile Pole

Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number GX-1511
Minimum Order Quantity 1 set
Price USD1880-19990 per set
Packaging Details plastic bubble sheets
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 500 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Monopole Telecommunication Tower GSM Antenna Cell Phone Mobile Pole Steel Structure Single Pipe Tubular
Design Wind Speed Up To 250 Km/h Tension Strength (Mpa) 360~510
Grade Of Bolts And Nuts Grade 4.8, 6.8, 8.8 Maximum Production Capacity 50,000 TON Per Annum
Allowable Deflection 0.5 ~1.0 Degree @ Operational Speed Packages Packing With Plastic Paper Or According To Client’s Requirement
Life Period More Than 25 Years, It Is According To Installing Environment
High Light

Low Carbon Structural Steel Monopole Tower

,

Single Pipe Tubular Monopole Tower

,

ISO9001 Monopole Cell Phone Tower

Leave a Message
Product Description

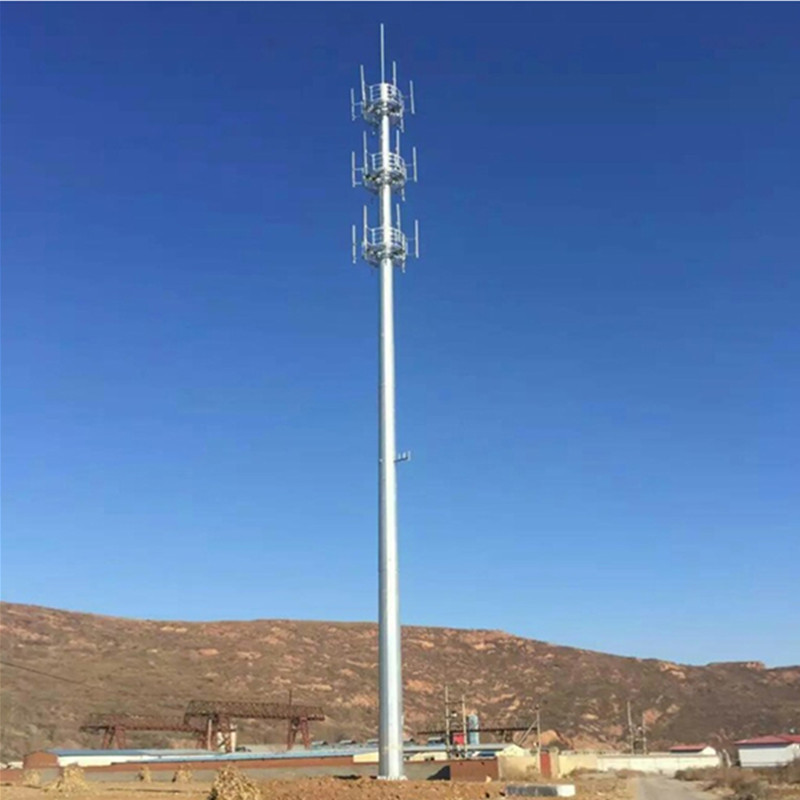

Monopole Telecommunication Tower GSM Antenna Cell Phone Mobile Pole



Specification:

Single tube tower,also called monopole tower, is a commonly used type. It belongs to the field of pipe tower technology, including tower body and working platform on top of the tower. At the bottom and on the working platform of the tower, there is a door opening respectively, antenna support is fixed on the fence of the platform.

Function:

1. Single tube towers are consisted of single tube and accessory, and main materials are generally made by steel plate bending.

2. The section of tower is circle or polygon, connected by inside flange, outside flange or plug-in.

3. The ladder and rest platform can be set inside the tower, and communication equipments can also be set there with high safety.

4. According to the customers' choice, the ladder can be placed inside or outside.

5. With advanced international design concept and calculation method, tower slope can be adjusted in accordance with geology and climate.

6. Convenient and safe to install, small area covering, and easy to select site.


Specificationi of Single Monopole Steel Pipe:

Material Angle steel plates, flat steel plate, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.



Monopole steel tubular tower

Single tube tower also called monopole tower, is a commonly used type, with beautiful appearance, covering an small area of 9 to 18 square meter, cost - effective , and is adopted by majority of the construction. Tower body adopt more reasonable section, which is connected through high strength bolt. It has the characteristics of easy installation and can adapt to a variety of complicated field site.



Communication tower consists of tower body, platform, lightning rod, ladder, antenna support and other steel components, and by hot galvanized anti-corrosion treatment, mainly for microwave, ultrashort wave, wireless network signal transmission and transmission.
