Galvanized Telecom Antenna Tower 4 Platforms With Mounting Brackets
Place of Origin | Guangzhou, China |
---|---|
Brand Name | GUANGXIN |
Certification | ISO9001 |
Model Number | GX-5208 |
Minimum Order Quantity | 1 set |
Price | USD1998-19998 per set |
Packaging Details | plastic bubble sheets |
Delivery Time | 20-30 days |
Payment Terms | T/T, L/C, Western Union, MoneyGram |
Supply Ability | 1000 sets per month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | High Quality Galvanized Telecom Tower Antenna Tower | Material | Weldable Structural Angle Steel Plates Or Pipes |
---|---|---|---|
Surface Finish | Hot Dip Galvanization And Power Coating | Height | 30m To 50m Or Customized Height |
Material Grade | GB Q235, Q345, Q355 Or Specified Grade | Yield Strength | 235~355MPa |
Galvanized Thickness | 65~85 Microns | Design | 1-4 Platforms With Mounting Brackets |
Wind Load | 0.36-1.0kN/sqm | ||
High Light | Galvanized Telecom Antenna Tower,4 Platforms Telecom Antenna Tower,Q355 Telecom Antenna Tower |

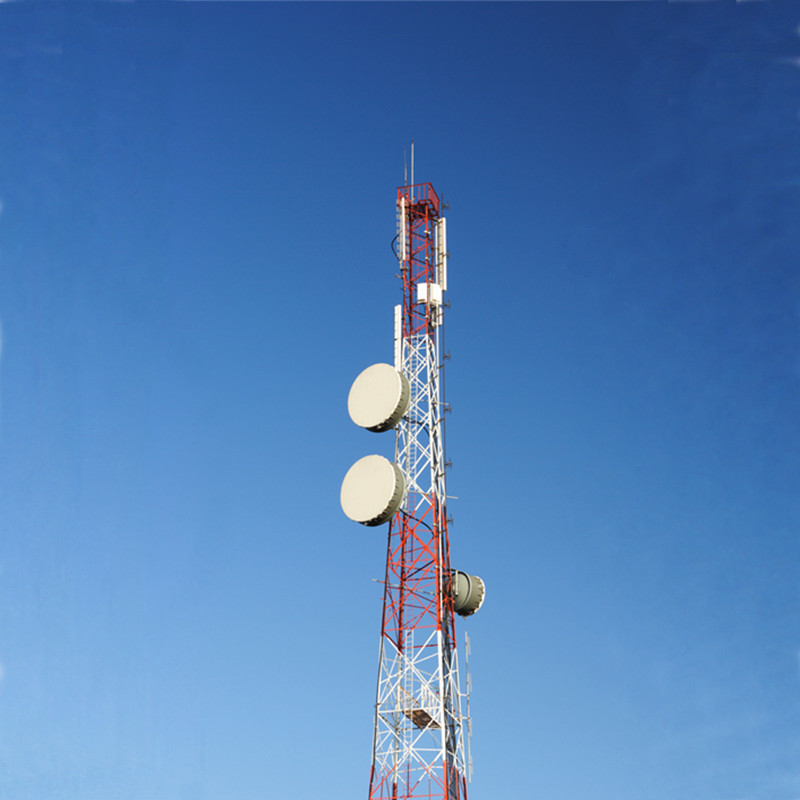

High Quality Galvanized Telecom Tower Antenna Tower
4 legged self-support steel lattice tower is generally made of angular steel plates and flat steel plates. The 4-leg lattice tower is generally divided into several sections and the sections are connected by flat connecting plates with bolts and nuts. Each tower section is made of angle steelt plates and flat plates. All the steel plates are prefabricated with cutout, holes and hot dip galvanization.
Application: telecom antenna WIFI microwave transmmision.
Specifications of 4 Legged Angular Steel Lattice Tower
Material | Angle steel plates, flat steel plate, bolts and nuts |
Steel Type | Weldable low carbon structural steel |
Steel Grade | GB Q235, Q345, BS 4360, ASTM A36 etc. |
Yield Strength | Fy≥235MPa |
Tensile Strength | Fu≥400MPa |
Elongation | σ≥20% |
Surface Finish | Hot dip galvanization |
Galvanized layer | T≥65μm |
Height | 20m to 100m, customized to requests |
Design | 4 legs self-supporting or free standing lattice tower |
Structure | 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices. |
Supply mode | CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down) |
Fixing/Fastening | Bolts and nuts, connecting plates |
Configuration | Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc. |
Wind Load | 0.35-1.0kN/sqm |
Lifespan | 20-50 years |
Warranty | 3 years |
Applications | GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations. |
