4 Legs Galvanized Steel Lattice 5G Tower 40m Free Standing
| Place of Origin | China |
|---|---|
| Brand Name | GUANGXIN |
| Certification | ISO9001 |
| Model Number | SST-440 |
| Minimum Order Quantity | 1 set |
| Price | USD5,000 to USD50,000 per set |
| Packaging Details | pallet |
| Delivery Time | 20-60 days subject to order quantity |
| Payment Terms | T/T, L/C, Western Union, MoneyGram |
| Supply Ability | 100 sets monthly |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Low Carbon Structural Steel Mild Steel | Steel Grade | Q235B, Q345B, ASTM 572, A36 Etc. |
|---|---|---|---|
| Basic Surface Finish | Hot Dip Galvanization | Additional Surface Finish | Color Powder Coating Or Painting |
| Yield Strength | Not Less Than 235MPa | Wind Load | 0.35~1kN/m² |
| Wind Speed | 50-360km Per Hour | Design Lifespan | 50 Years |
| Warranty | 3 Years | Delivery Time | 20-60 Days, Depending On Order Quantity |
| Origin | Guangzhou, China | Loading Port | Nansha, Guangzhou Or Shekou Shenzhen |
| High Light | Galvanized Steel Lattice 5G Tower,4 Legs Lattice 5G Tower,Free Standing 40m Lattice Steel Towers |
||
Product Description

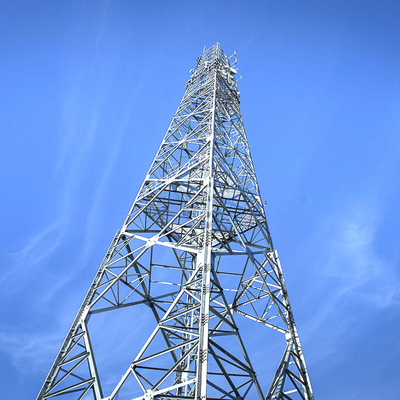

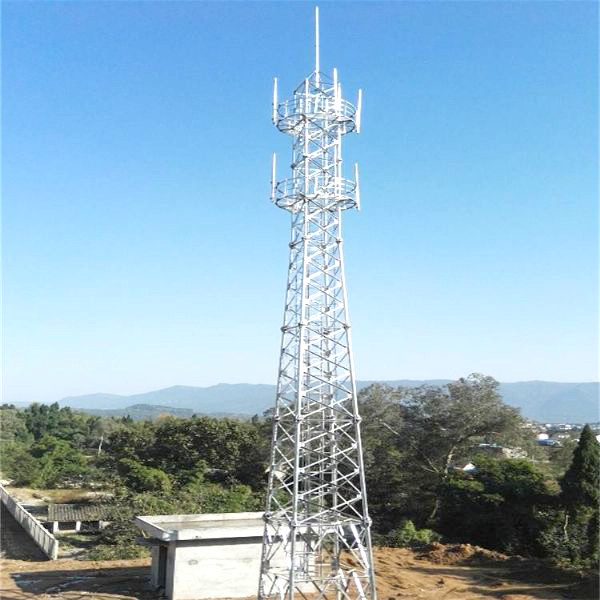

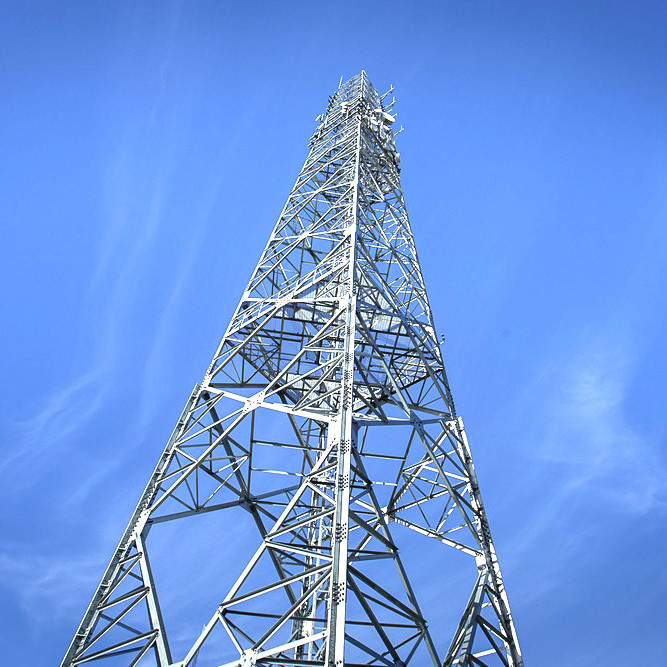

4-legs Galvanized Steel Free Standing Lattice 5G Tower 40m
40m Angular Steel 5G Mobile Phone Microcell or Macrocell Tower
Self-supporting Galvanized Steel Communication Tower
4-legged Ground Field Mounted Free Standing Telecom Steel Lattice Tower
Custom Designed and Prefabricated CKD Delivery Heavy Duty Steel Mobile GSM and 5G Antenna Tower
Chinese Supplier of All kinds of galvanized steel masts, lattice towers and mono poles
Guangzhou Guangxin Communication Equipment Co., Ltd. was founded in 2009, starting as an OEM and ODM manufactory for CHINA TOWER CORPERATION which is the largest design and supplier of communication towers and other applicable towers in China. After more than 10 years of fast growing and research, we have become one of leading manufacturers of all kinds of steel towers and poles in China.
Our Product Range
1, Telecommunication lattice towers
2, Galvanized steel masts and poles
3, Power transmission and distribution line towers and poles
4, Artificial tree camouflaged antenna towers
5, Street light poles, roadway and highway lighting columns or posts
6, Stadium and sports field lighting towers
7, Traffic signal light, surveillance CCTV camera and sign poles, cantilievers and gantry frames
8, Other steel structures
70m Heavy Duty Angle Steel Communication Antenna Tower with 3 work platforms
Category of Galvanized Steel Communication Towers and Masts
1, Four legs lattice tower: made of angular steel plates or tubular steel tubes or pipes or both
2, Thress legs lattice tower: made of angular steel plates or tubular steel tubes or pipes or both
3, Bipod and Tripod: steel tube as main post and angle plates as diagonal supports
4, Mono pole
5, Ground field towers
6, Rooftop towers
Specifications
| Product Name | self-supporting Galvanized Steel Mobile Communication lattice tower and mast |
| Material | Structural and weldable low carbon mild steel |
| Place of Origin | Guangzhou, China |
| Material grade and performance | GB Q345B/ASTM A572 for main structure (legs or tower bone), Yield Strength ≥ 345 N/mm² (or MPa), Q235B/A36 for horizontal and diagonal braces, Yield Strength ≥ 235 N/mm² |
| Specified material is acceptable. | |
| Tower Type | 4 legs, self-supporting and free standing, lattice tower |
| Tower Height | 15m to 150m, customized to design requirements |
| Wind Load | 0.35-1 kN/m² (wind speed 50m/s to 100m/s) |
| Connection | Anchor Bolts and nuts |
| Surface finish | Hot Dip Galvanization (optional plus painting) |
| Zinc Coating thickness | 65μm-110μm |
Descriptions
1. Delivery condition: CKD (completely knocked down) components and parts
2. Tower structure: steel framed concrete foundations, tower sections, rest platforms and work platforms, clambing ladder, mounting brackets, lightning rod, earthing leads, cable tray etc.
3. Applications: microcell and macrocell cell phone stations, 5G, GSM, RRU, CDMA mobile phone signal transimssion and Microwave, Radio antenna support etc.
Angle steel tower components and parts
Importance Notice:
1, Can I customize the towers, poles or other steel structures?
Yes, we can fabricate the towers, poles, building structures and other related products according to your designs, drawings, specifications and requirements.
2, What's your payment terms?
T/T or irrevocable documentary L/C at sight is accepted for us. The general payment arrangement is 30% down payment before production and full payment before shipping by T/T, or L/C issued before production.
4, Can you guarantee the quality?
Yes. The design lifespan of our towers and poles is 50 years
5, Are you exporting to other countries and regions?
Yes, we have exported to many other countries and regions such as USA, Brazil, Chile, Saudi Arabia, Malaysia, Philippines, Macau and many more.
6, What is your delivery time?
20-60 days, depending on the order quantity.
7, How many is the MOQ?
1 set.
8, Where is your factory located?
Tanbu Town, Huadu District, Guangzhou City which is the 3rd largest city in China and the largest city in Southern China, near by Hongkong, Macau and Shenzhen.
