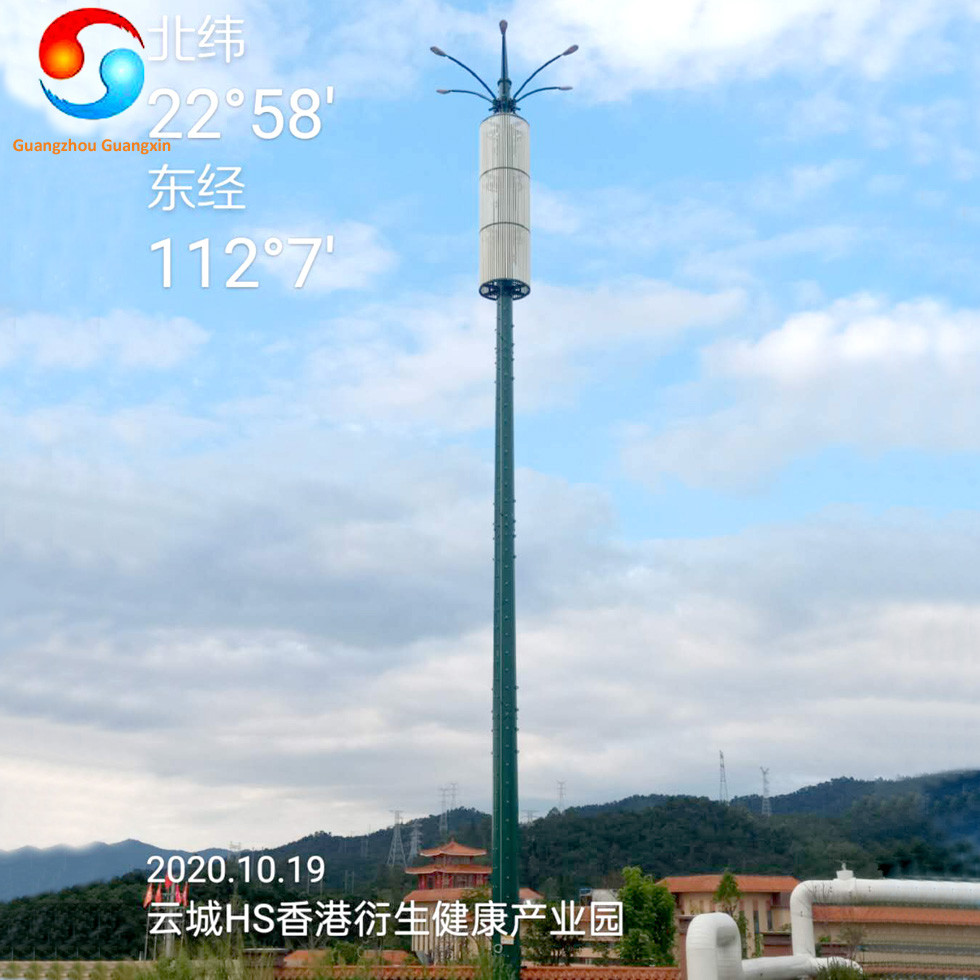

5G Telecom Antenna Guyed Pole Tower Powder PVDF Coating For Landscaping

Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number HLP-007
Minimum Order Quantity 10pcs
Price USD198-2038 per piece
Packaging Details Plastic Bubble sheets and pearl wool sheets
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 5000pcs monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Guyed Pole Tower Grade Q235B, Q345B Or Specified Steel
Available Height 4.5m To 50m Shape Straight Round, Conical, Polygonal, Rectangular Etc.
Wind Speed 50-260m/s Surface Finish Hot Dip Galvanization And Powder Or PVDF Coating
Color White, Silver, Grey Or Specified Colors Lifespan 20-50 Years
Packing Plastic Bubble Sheets And Pearl Wool Sheets
High Light

50m 5G Guyed Pole Tower

,

Q235 Guyed Pole Tower

,

Q235 50m Steel Light Pole

Leave a Message
Product Description

5G Telecom Antenna Guyed Pole Tower Powder PVDF Coating For Landscaping



Galvanized Steel Light Pole or Tower with 5G Telecom Antennas for Lighting and Communication





30m High Mast Galvanized Steel Light Tower with Communication Antennas in the Fiberglass Lattice Ornament for Large Field Lighting and 5G Signal Microcell Station as well as Landscaping

35m High Mast Steel Light Tower or Pole with Automatic Lifting System and 10-16 high power Lamps / Lights

Galvanized Steel Light Pole with Powder or PVDF Coating for Landscaping and Lighting

Street Light Pole for mounting Solar Panels, LED lights, Antennas and Landscaping Ornament

4.5m to 50m High Steel street Light Pole, Arear Light Pole, Uttility Light Pole, Roadway Light Pole, Highway Light Pole, Stadium Light Pole etc.

All-in-1 Smart Light Pole for Mounting Street Lights, LED display screen, CCTV Cameras, Alarm Intercom, 3G/4G/5G/WIFI Antennas etc.





Established in 2009, Guangzhou Guangxin Communication Equipment Co., Ltd. is a professional manufacturer of steel poles and towers, specializing in producing all kinds of light poles for a vast range of applications such as street lighting poles, roadway and highway light poles, traffic signal, CCTV monitor and guideboard poles and gantries, signage poles and gantry frames, high mast lighting poles for public sqaures and stadiums etc. In addition, we can also create new designs of poles to meet your aesthetic and functional demands.



The popular steel light poles include tubular steel pole, solar street light pole, conical or tapered light pole, hexagonal or polygonal lighting pole, straight round street light pole and octagonal lighting pole. There are 2 ways of installation of the steel poles, one is directly buried and the other way is fixed to steel frame foundation with anchor bolts by base plate with bolts and nuts.







5G Telecom Antenna Guyed Pole Tower Powder PVDF Coating For Landscaping 0

                                               Typical Structure of Street Light Pole


Specifications



Descriptions Galvanized Steel street / roadway / highway / stadium / Utility / area Light Pole
HS Code 7308900000
Material Low carbon weldable structural steel
Grade GB Q235, Q345, BS4360, ASTM A36 etc.
Yield Strength 235-355MPa
Height 5m to 35m or other specified height
Thickness 4mm to 15mm, depending on height of pole.
Pole Shape Conical/tapered, straight round/cylindrical, square or rectangular, polygonal etc.
Diameter or Dimensions Subject to height of pole and required mechanical properties.
Design Single, dual or multiple straight or curved arms and brackets
Surface Finish Hot dip galvanization plus powder or PVDF coating (optional)
Galvanization 65-100 Microns
Powder Coating 35-80 Microns
Color Silver, grey, black, white, blue, yellow etc.
Applications Roadways, streets, highways, stadiums, public sqaures, airports, railway stations, communities, parking lots, gardens etc.

5G Telecom Antenna Guyed Pole Tower Powder PVDF Coating For Landscaping 1 5G Telecom Antenna Guyed Pole Tower Powder PVDF Coating For Landscaping 2

Conical roadway light pole Directly buried installation        Fixed by bolts and nuts with foundation



The steel light poles are designed with single, dual or multiple arms and brackets for mounting lamps, solar panels, CCTV cameras or other facilities as per requests. The designs of arms and brackets are also customized to requirements for different connectors of luminairs or other facilities. With custom special designs, the light poles are not only used for lighting, monitoring or traffic signal control but also for city landscape decorations.



Applicable Examples of Steel Poles

5G Telecom Antenna Guyed Pole Tower Powder PVDF Coating For Landscaping 3

               25m Street Lighting Pole with automatic lifting system



5G Telecom Antenna Guyed Pole Tower Powder PVDF Coating For Landscaping 4

Smart City and Intelligent Traffic Signal and Lighting Pole Management System (all in 1 digital information solution)

High power LED lamp with light sensor control

Built-in loudspeaker and network system for APP online remote control

Weather and environment management system

Traffic signal control system

CCTV camera monitor system

LED screen for information and advertising display

Intercom alarm and alert communication system

High quality customized design steel light pole for support and mount.





5G Telecom Antenna Guyed Pole Tower Powder PVDF Coating For Landscaping 5

Traffic signal light pole and CCTV monitor camera pole



5G Telecom Antenna Guyed Pole Tower Powder PVDF Coating For Landscaping 6

Traffic guideboard pole and gantry



5G Telecom Antenna Guyed Pole Tower Powder PVDF Coating For Landscaping 7

Signage/Advertising Billboard or LED display pole or gantry



5G Telecom Antenna Guyed Pole Tower Powder PVDF Coating For Landscaping 8

High mast stadium light pole. Landscape Tower with Lighting and/or Communication Microcell Antenna



5G Telecom Antenna Guyed Pole Tower Powder PVDF Coating For Landscaping 9

Artificial Tree Camouflaged Communication Antenna Tower made from galvanized steel pipes and fiber plastic.
