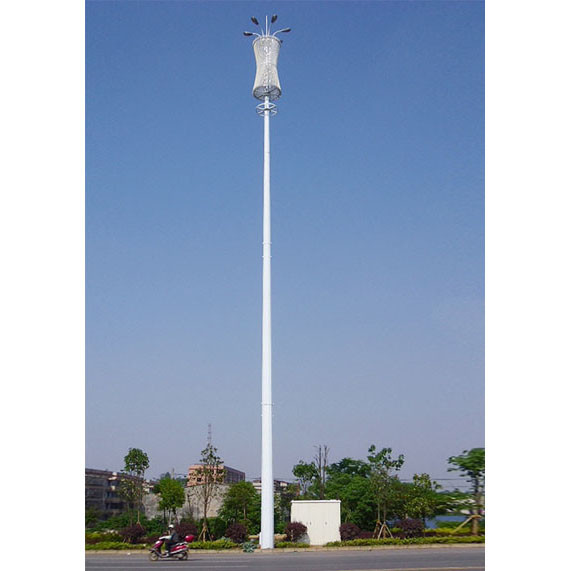

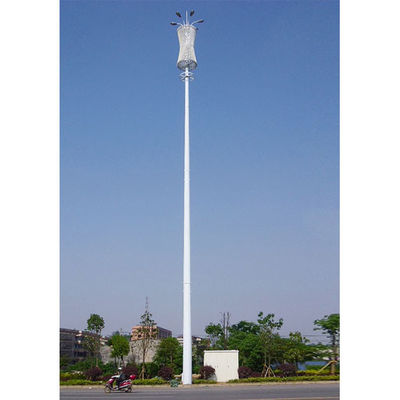

30m High Mast Multifunctional Steel Monopole Tower For Railway Stations

Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number HLP-002
Minimum Order Quantity 10pcs
Price USD198-2038 per piece
Packaging Details Plastic Bubble sheets and pearl wool sheets
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 5000pcs monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Delivery Time 20-30 Days Name Monopole Wind Turbine Tower
Material Weldable Structural Carbon Steel Grade Q235B, Q345B Or Specified Steel
Available Height 4.5m To 45m Shape Straight Round, Conical, Polygonal, Rectangular Etc.
Wind Speed 50-260m/s Surface Finish Hot Dip Galvanization And Powder Or PVDF Coating
Color White, Silver, Grey Or Specified Colors Lifespan 20-50 Years
Warranty 3 Years Packing Plastic Bubble Sheets And Pearl Wool Sheets
High Light

Q235B Steel Monopole Tower

,

ODM Steel Monopole Tower

,

Q235B Monopole Wind Turbine Tower

Leave a Message
Product Description

30m High Mast Multifunctional Steel Monopole Tower For Railway Stations



30m High Mast Multi-Functional Steel Light And Antenna Tower For Communication And Large Field Lighting



The steel light poles are designed with single, dual or multiple arms and brackets for mounting lamps, solar panels, CCTV cameras or other facilities as per requests. The designs of arms and brackets are also customized to requirements for different connectors of luminairs or other facilities. With custom special designs, the light poles are not only used for lighting, monitoring or traffic signal control but also for city landscape decorations.



The popular steel light poles include tubular steel pole, solar street light pole, conical or tapered light pole, hexagonal or polygonal lighting pole, straight round street light pole and octagonal lighting pole. There are 2 ways of installation of the steel poles, one is directly buried and the other way is fixed to steel frame foundation with anchor bolts by base plate with bolts and nuts.





Specifications



Descriptions Galvanized Steel street / roadway / highway / stadium / Utility / area Light Pole
HS Code 7308900000
Material Low carbon weldable structural steel
Grade GB Q235, Q345, BS4360, ASTM A36 etc.
Yield Strength 235-355MPa
Height 5m to 35m or other specified height
Thickness 4mm to 15mm, depending on height of pole.
Pole Shape Conical/tapered, straight round/cylindrical, square or rectangular, polygonal etc.
Diameter or Dimensions Subject to height of pole and required mechanical properties.
Design Single, dual or multiple straight or curved arms and brackets
Surface Finish Hot dip galvanization plus powder or PVDF coating (optional)
Galvanization 65-100 Microns
Powder Coating 35-80 Microns
Color Silver, grey, black, white, blue, yellow etc.
Applications Roadways, streets, highways, stadiums, public sqaures, airports, railway stations, communities, parking lots, gardens etc.



How long can you deliver?

15-35 days after confirming shop drawings, depending on order quantity.

 What’s your advantages comparing with other suppliers?

We have been specializing in this field for more than 10 years since 2009, we have professional engineers and designers, skilled workers, advanced production line equipped with CNC and laser cutting machines, welding machines, shaping machines, test instruments etc., we can produce the poles and towers or other steel frameworks according to customers’ designs, specifications, drawings, requirements. Our quality is very good but price is reasonable and competitive. We’re also providing excellent in-sales and after-sales services. We always provide good quality products and services beyond customers’ expectations.

Can I customize the towers, poles or frameworks?

Yes, we can fabricate the towers, poles, frameworks or other related products according to your drawings, specifications and requirements.

What’s your payment terms?

T/T or irrevocable documentary L/C is accepted for us. The general payment arrangement is 30% down payment before production and full payment before shipping by T/T, or L/C issued before production.

Applicable Examples of Steel Poles

Street Lighting Pole



30m High Mast Multifunctional Steel Monopole Tower For Railway Stations 0

Smart City and Intelligent Traffic Signal and Lighting Pole Management System (all in 1 digital information solution)

High power LED lamp with light sensor control

Built-in loudspeaker and network system for APP online remote control

Weather and environment management system

Traffic signal control system

CCTV camera monitor system

LED screen for information and advertising display

Intercom alarm and alert communication system

High quality customized design steel light pole for support and mount.





30m High Mast Multifunctional Steel Monopole Tower For Railway Stations 1

Traffic signal light pole and CCTV monitor camera pole



30m High Mast Multifunctional Steel Monopole Tower For Railway Stations 2

Traffic guideboard pole and gantry



30m High Mast Multifunctional Steel Monopole Tower For Railway Stations 3

Signage/Advertising Billboard or LED display pole or gantry



30m High Mast Multifunctional Steel Monopole Tower For Railway Stations 4

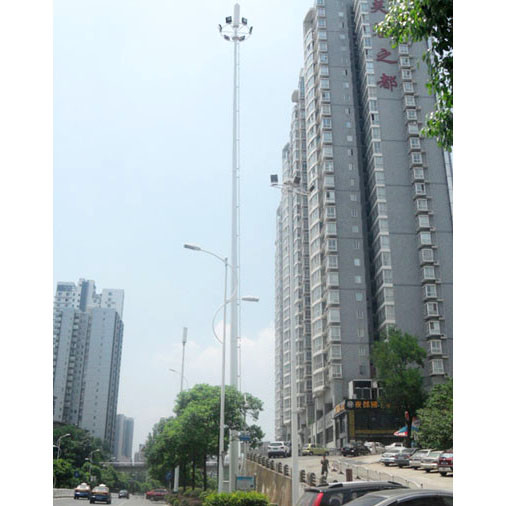

High mast stadium light pole. Landscape Tower with Lighting and/or Communication Microcell Antenna



30m High Mast Multifunctional Steel Monopole Tower For Railway Stations 5

Artificial Tree Camouflaged Communication Antenna Tower made from galvanized steel pipes and fiber plastic.
