5G Microcell Telecom 20m Roof Mount Antenna Tower Climbable ISO9001

  • 5G Microcell Telecom 20m Roof Mount Antenna Tower Climbable ISO9001
Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number RTT-026
Minimum Order Quantity 1 set
Price USD198-2038 per piece
Packaging Details wooden pallet and cartons
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 1000 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Roof Mount Antenna Tower Material Weldable Structural Steel Pipes And Plates
Surface Finish Hot Dip Galvanization Height 5m To 20m
Design Climbable Bipod Tower With Mounting Brackets Lifspan 20-50 Years
Warranty 3 Years Delivery Time 20-30 Days
Applications Communication Antenna Stations, TV Signal Transmission
High Light

20m Roof Mount Antenna Tower

,

ISO9001 Roof Mount Antenna Tower

,

5m 20m rooftop tower
Leave a Message
Product Description

5G Microcell Telecom 20m Roof Mount Antenna Tower Climbable ISO9001



Galvanized Steel Tripod Rooftop Mast 5G Microcell Telecom Antenna Tower



Self-supporting steel communication tower

4 legged angular lattice tower made up of galvanized steel flat plates and angle steel plates

FM radio transmission tower, GSM 3G, 4G, 5G communication microwave and antenna tower

high mast galvanized steel lattice tower for communication transmission stations

Custom designed and fabricated steel tower for worldwide communication applications.

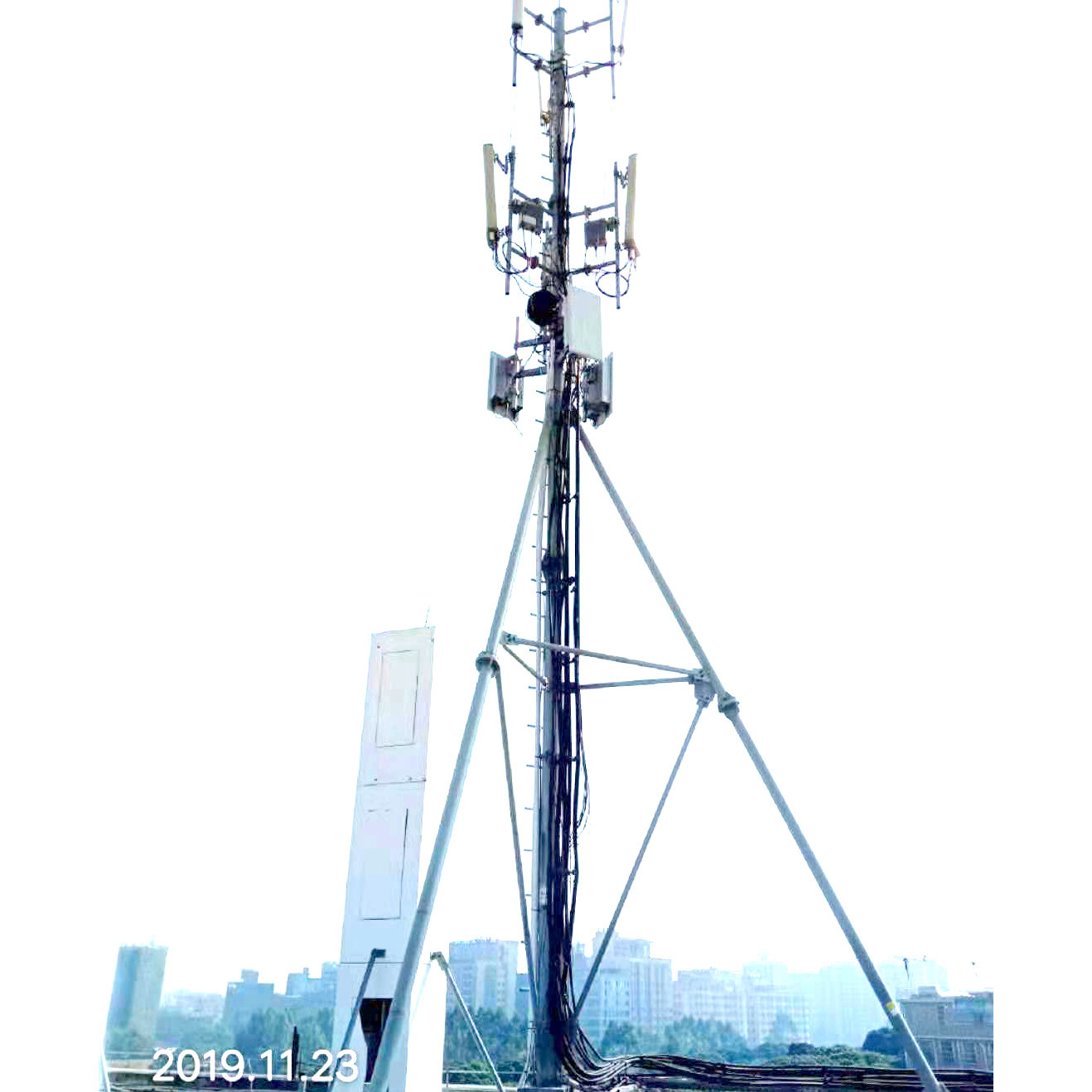

The rooftop steel tower is a small size tower for communication microcell station for enlarging the telecommunication signal coverage in the communities. It is typically designed as bipod or tripod tower mounted on the roof top, the height of rooftop towers is generally 5m to 20m. The rooftop tower is composed of a main pole which is made from tubular steel pipe and some angle steel or flat steel plates as braces, connected by flanges, flat plates, bolts and nuts. A foundation with anchoring bolts is also required for fixing the tower. Sometimes the rooftop tower is designed as wire guyed tower to make it with higher wind load.





Specifications



Material Steel pipe/tubes, Angle steel plates, flat steel plates, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 5m to 20m, customized to requests
Design 3 legs bipod, tripod self-supporting or free standing lattice tower
Structure 1 to 2 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-2 platforms (optional), mounting brackets, ladder or steps, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations, TV signal transmission.
