Q345 Galvanized Rooftop Antenna Tower Angle Steel Plates OEM

  • Q345 Galvanized Rooftop Antenna Tower Angle Steel Plates OEM
  • Q345 Galvanized Rooftop Antenna Tower Angle Steel Plates OEM
  • Q345 Galvanized Rooftop Antenna Tower Angle Steel Plates OEM
Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number RTT-024
Minimum Order Quantity 1 set
Price USD198-2038 per piece
Packaging Details wooden pallet and cartons
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 1000 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Rooftop Antenna Tower Surface Finish Hot Dip Galvanization
Height 5m To 20m Design Climbable Bipod Tower With Mounting Brackets
Lifspan 20-50 Years Warranty 3 Years
Delivery Time 20-30 Days Applications Communication Antenna Stations, TV Signal Transmission
High Light

Q345 Rooftop Antenna Tower

,

400MPa Rooftop Antenna Tower

,

Q345 rooftop antenna mast
Leave a Message
Product Description

Q345 Galvanized Rooftop Antenna Tower Angle Steel Plates OEM



5-20m Galvanized Steel Bipod Rooftop Mast Communication Antenna Tower

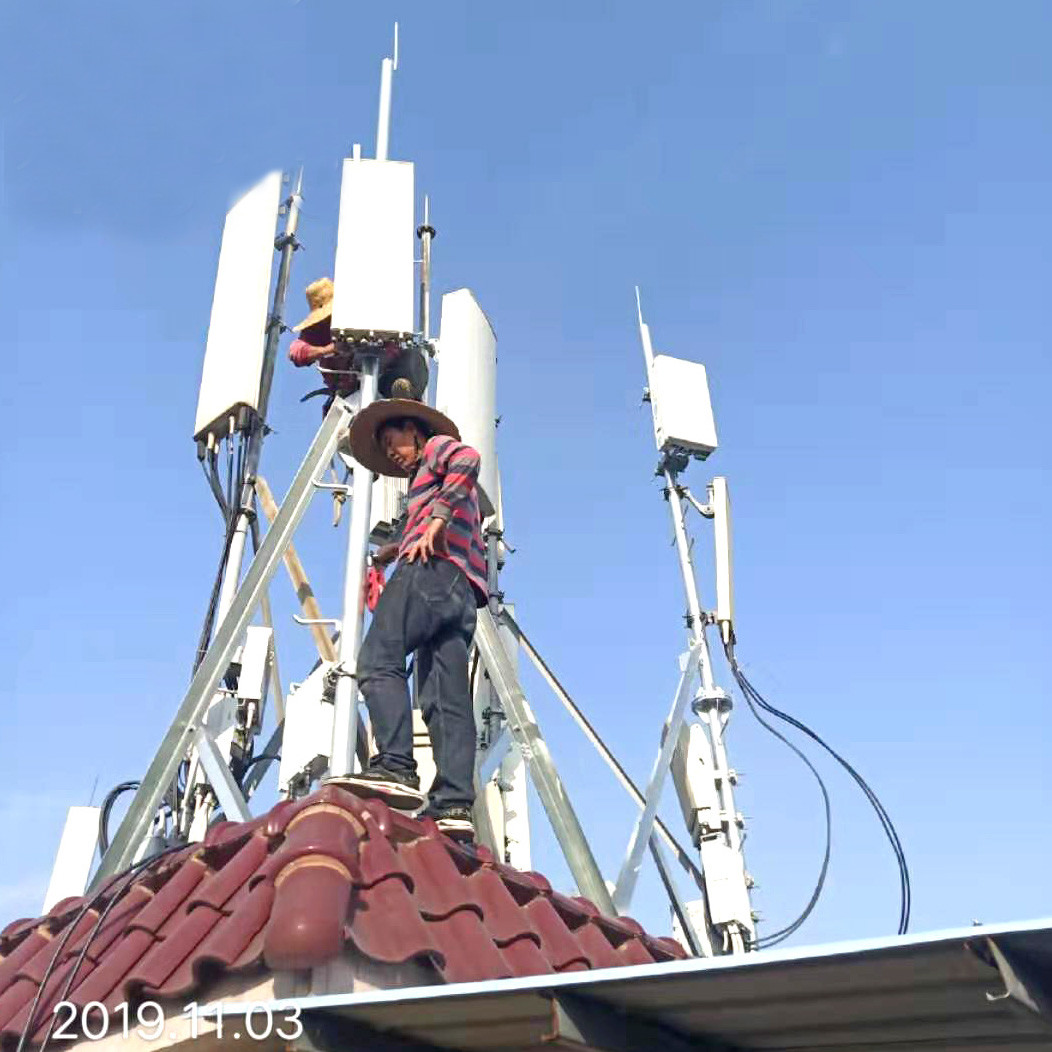

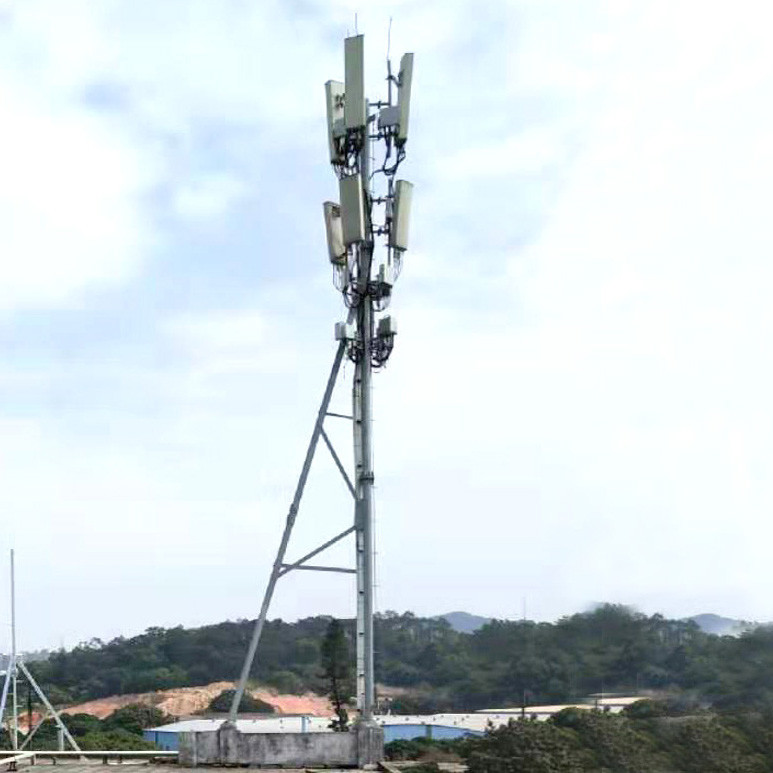

It is typically designed as bipod or tripod tower mounted on the roof top, the height of rooftop towers is generally 5m to 20m. The rooftop tower is composed of a main pole which is made from tubular steel pipe and some angle steel or flat steel plates as braces, connected by flanges, flat plates, bolts and nuts. A foundation with anchoring bolts is also required for fixing the tower. Sometimes the rooftop tower is designed as wire guyed tower to make it with higher wind load.



Specifications



Material Steel pipe/tubes, Angle steel plates, flat steel plates, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 5m to 20m, customized to requests
Design 3 legs bipod, tripod self-supporting or free standing lattice tower
Structure 1 to 2 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-2 platforms (optional), mounting brackets, ladder or steps, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations, TV signal transmission.



Rooftop Antenna Tower  is made from tubular pipes and angular steel plates. The steel pipes are made for tower legs, angular steel plates are made for bracings (support members) and flate steel plates for connectors. The steel pipes are welded with flanges at each end for connection. All the parts of tower are prefabricated in CKD (completel knocked down) steel members ready for installation. When you install the tower, just fix the steel pipes to foundations by bolts and nuts and then connect the angular steel plate bracings to the pipes via welded connecting plates with bolts and nuts. In CKD way of fabrication, the cost is lower and shipping cost is also much lower because you can ship more materials in a container or truck.
