Self Supporting Galvanized Transmission Lattice Tower 3 Legged For 5G Macrocell
| Place of Origin | Guangzhou, China |
|---|---|
| Brand Name | GUANGXIN |
| Certification | ISO9001 |
| Model Number | SST-003 |
| Minimum Order Quantity | 1 set |
| Price | USD1998-9998 per piece |
| Packaging Details | plastic bubble sheets and pearl wool sheets |
| Delivery Time | 20-30days |
| Payment Terms | T/T, L/C, Western Union, MoneyGram |
| Supply Ability | 200 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Transmission Lattice Tower | Material | Wledable Structural Carbon Steel Pipes And Plates |
|---|---|---|---|
| Design | Self-supporting Steel Lattice Tower | Plateforms | 1-3 Platforms With Mounting Brackets |
| Wind Speed | 30-60m/s | Applications | GSM, 2G, 3G, 4G, 5G Macrocell And Microcell Communication Stations |
| High Light | ODM Transmission Lattice Tower,5G Transmission Lattice Tower,ODM guyed cell tower |
||
Product Description
Self Supporting Galvanized Transmission Lattice Tower 3 Legged For 5G Macrocell

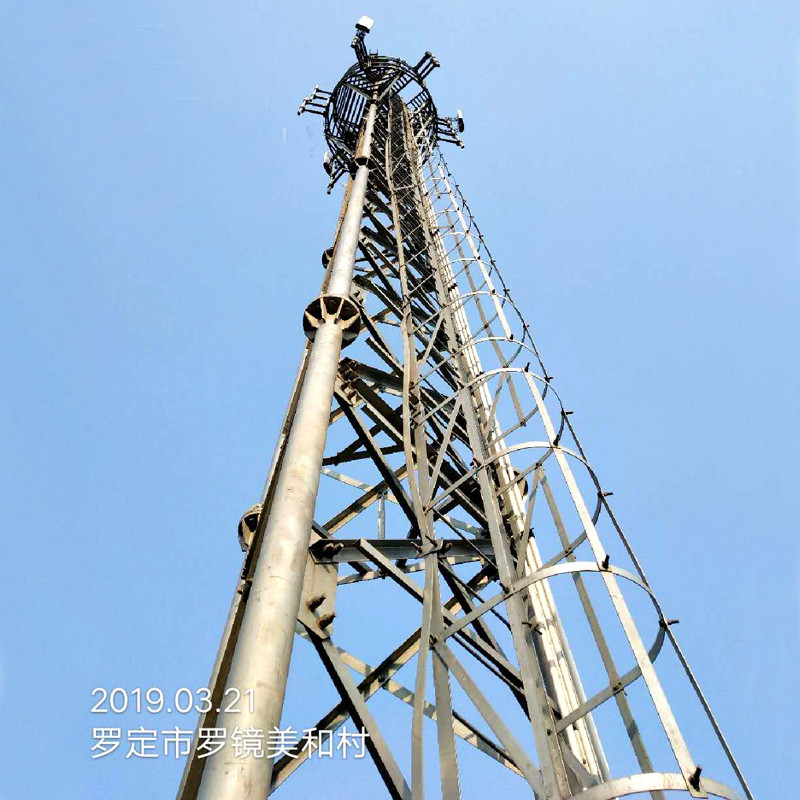

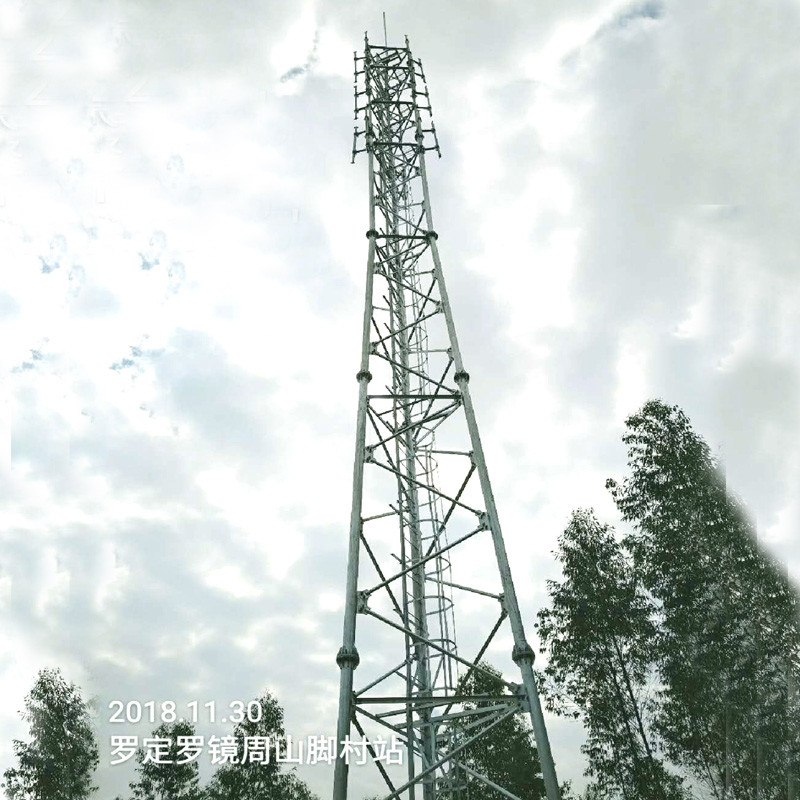

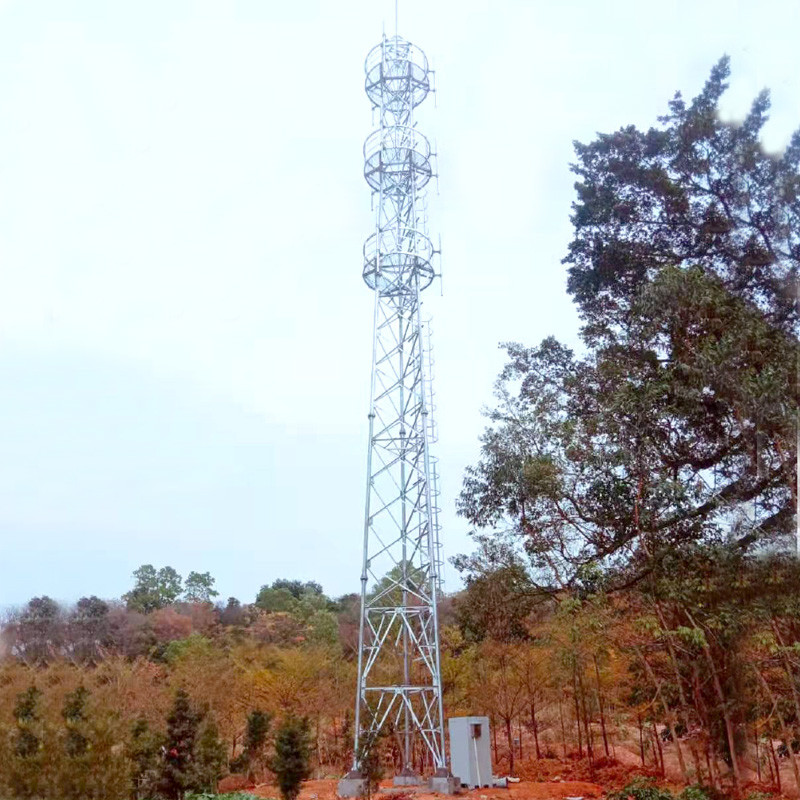

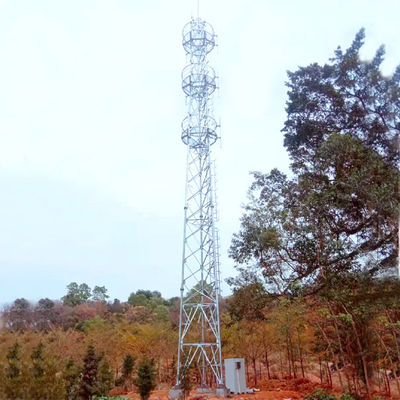

3 Legged Self-Supporting Galvanized Steel Lattice Tower For Communication 5G Station
The structure of 3 legged steel lattice communication tower is generally composed of foundation anchoring bolts (cage frames), sections of tower body, 1 to 5 platforms, mountning brackets, lightning arrest or protection rod, ladder, earthing plates, anti-fall safety system (external cage structure) and fasteners (such as clamps, clips, bolts and nuts etc.). The design, structure and height of telecommunication towers can be customized according to requirements and drawings.
Galvanized Transmission Lattice Tower is the most popular tower for communication or power transmission and distribution applications. It’s generally designed for 3 legs or 4 legs, composed of galvanized tubular steel pipes and angular steel plates by welding and fastening with bolts and nuts. With height of 35m to 100m, the steel lattice towers are widely used for mounting communication macrocell stations and power transmission or distribution wires or cables.
| Material | Tubular steel pipes, angular steel plates, flat steel plate or solid steel bars, bolts and nuts |
| Steel Type | Weldable low carbon structural steel |
| Steel Grade | GB Q235, Q345, BS 4360, ASTM A36 etc. |
| Yield Strength | Fy≥235MPa |
| Tensile Strength | Fu≥400MPa |
| Elongation | σ≥20% |
| Surface Finish | Hot dip galvanization |
| Galvanized layer | T≥65μm |
| Height | 20m to 100m, customized to requests |
| Design | 3 legs self-supporting or free standing lattice tower |
| Structure | 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices. |
| Supply mode | CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down) |
| Fixing/Fastening | Bolts and nuts, connecting flanges |
| Configuration | Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc. |
| Wind Load | 0.35-1.0kN/sqm |
| Lifespan | 20-50 years |
| Warranty | 3 years |
| Applications | GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations |
3 legged self-support steel lattice tower is generally made of tubular steel pipes as main structure (you can tell it as tower legs or body) and angular steel plates or pipes as sub-frame (horizontal and vertical bracings). The lattice tower is generally divided into several sections and the sections are connected by flange plates with bolts and nuts. Each tower section is made of tubular steel pipes and angular or flat steel plate, sometimes the tower is made of completely steel pipes or some bracings are made from solid steel bars.
