Outdoor Steel Q235 City Light Pole 5m Self Supporting Monople
| Place of Origin | Guangzhou, China |
|---|---|
| Brand Name | GUANGXIN |
| Certification | ISO9001 |
| Model Number | USL-001 |
| Minimum Order Quantity | 10pcs |
| Price | USD200-2000 per piece |
| Packaging Details | plastic bubble sheets |
| Delivery Time | 20-25 days |
| Payment Terms | T/T, L/C, Western Union, MoneyGram |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | City Light Pole | Material | Weldable Structural Galvanized Steel |
|---|---|---|---|
| Type | Self-supporting Monople | Height | 5m To 50m |
| Shape | Conical, Straight Round, Square, Polygonal Etc. | Surface Finish | Hot Dip Galvanized And Powder Or PVDF Coating |
| Color | Customized To Requests | Arms And Brackets | Single, Dual, Triple Or Multiple |
| High Light | Q235 City Light Pole,5m City Light Pole,Q235 outdoor light pole |
||
Product Description

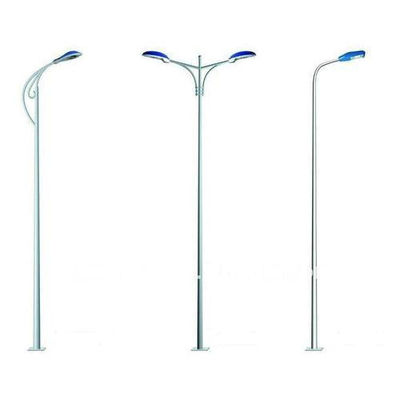

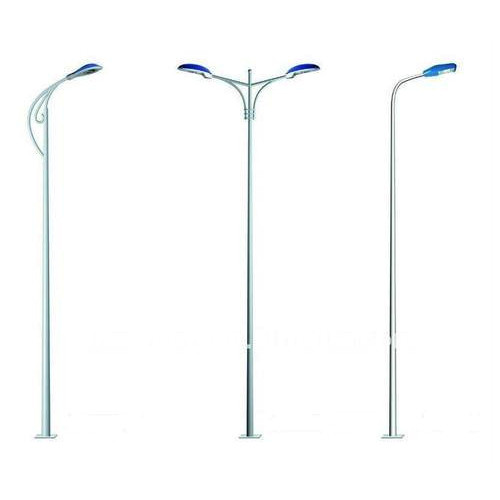

Outdoor Steel Q235 City Light Pole 5m Self Supporting Monople
Nice Design Utilities Street Light Pole For City Lighting
There are various designs of the light poles to make special landscapes of the city. We can make the light poles according to your designs and drawings.
As a professional manufacturer of steel poles and towers, we’re producing all kinds of light poles for a vast range of applications such as street lighting poles, roadway and highway light poles, traffic signal, CCTV monitor and guideboard poles and gantries, signage poles and gantry frames, high mast lighting poles for public sqaures and stadiums etc. In addition, we can also create new designs of poles to meet your aesthetic and functional demands.
Specifications
| Descriptions | Steel poles for mounting lights, CCTV camera, guideboards, billboards etc. |
| Material | Low carbon weldable structural steel |
| Grade | GB Q235, Q345, BS4360, ASTM A36 etc. |
| Yield Strength | 235-355MPa |
| Height | 5m to 35m or other specified height |
| Thickness | 4mm to 15mm, depending on height of pole. |
| Pole Shape | Conical/tapered, straight round/cylindrical, square or rectangular, polygonal etc. |
| Diameter or Dimensions | Subject to height of pole and required mechanical properties. |
| Design | Single, dual or multiple straight or curved arms and brackets |
| Surface Finish | Hot dip galvanization plus powder or PVDF coating (optional) |
| Galvanization | 65-100 Microns |
| Coating | 35-80 Microns |
| Color | Silver, grey, black, white, blue, yellow etc. |
| Applications | Roadways, streets, highways, stadiums, public sqaures, airports, railway stations, communities, parking lots, gardens etc. |

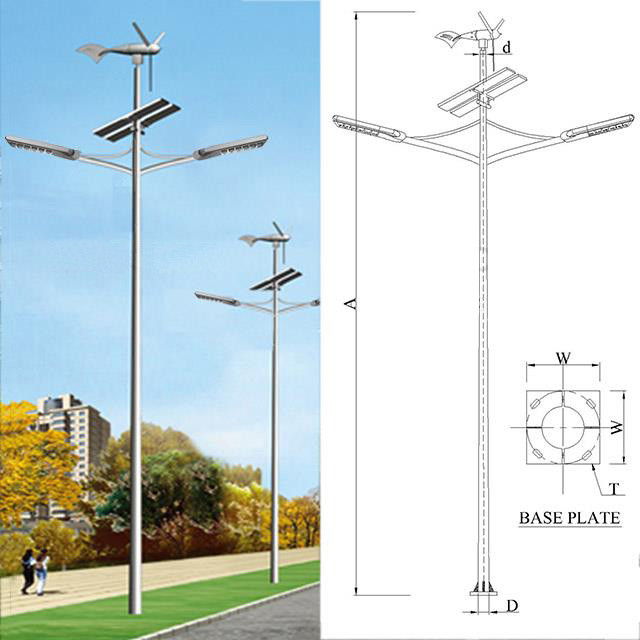

Typical installation way of steel poles, especially for the high mast lighting or communication poles
The steel light poles are designed with single, dual or multiple arms and brackets for mounting lamps, solar panels, CCTV cameras or other facilities as per requests. The designs of arms and brackets are also customized to requirements for different connectors of luminairs or other facilities. With custom special designs, the light poles are not only used for lighting, monitoring or traffic signal control but also for city landscape decorations.
Can I customize the towers, poles or frameworks?
Yes, we can fabricate the towers, poles, frameworks or other related products according to your drawings, specifications and requirements.
What’s your payment terms?
T/T or irrevocable documentary L/C is accepted for us. The general payment arrangement is 30% down payment before production and full payment before shipping by T/T, or L/C issued before production.
Can you guarantee the quality?
Yes.
Applicable Examples of Steel Poles

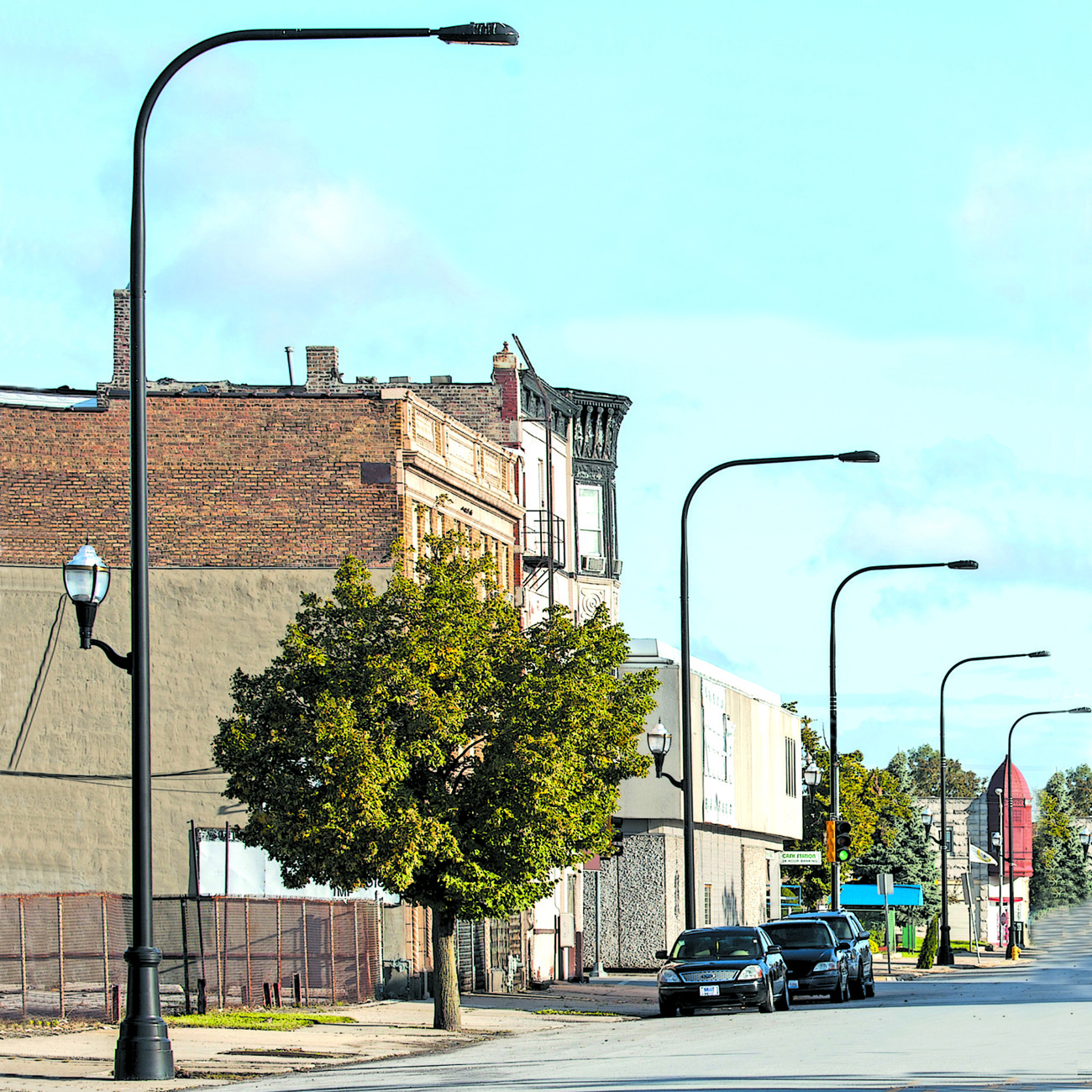

Street Lighting Pole
Roadway/highway lighting pole
Traffic signal light pole
Traffic CCTV monitor camera pole
Traffic guideboard pole
Billboard/Signage/Advertising Billboard or LED display pole or gantry
