Iso9001 Self Supporting Tripod Rooftop Cell Tower 15m Tv Transmitter Towers
| Place of Origin | Guangzhou, China |
|---|---|
| Brand Name | GUANGXIN |
| Certification | ISO9001 |
| Model Number | RTS-003 |
| Minimum Order Quantity | 1 set |
| Price | USD2000 per set |
| Packaging Details | wooden pallet and cartons |
| Delivery Time | 20-30 days |
| Payment Terms | T/T, L/C, Western Union, MoneyGram |
| Supply Ability | 800 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Rooftop Cell Tower，Tv Transmitter Towers | Height | 5m To 15m |
|---|---|---|---|
| Type | Self-supporting Communication Tower | Materials | Q235 Or Q345 Galvanized Steel Pipes And Angle Steel Plates |
| Brackets | 3-12 Brackets For Mounting Antennas, Microwaves, RRUs Etc. | Installation | Fixed By Anchor Bolts And Nuts |
| Application | Telecommunication Signal Transsision And Reception | ||
| High Light | Q235 Q345 Rooftop Cell Tower,15m Rooftop Cell Tower,Q235 Q345 Tv Transmitter Towers |
||
Product Description

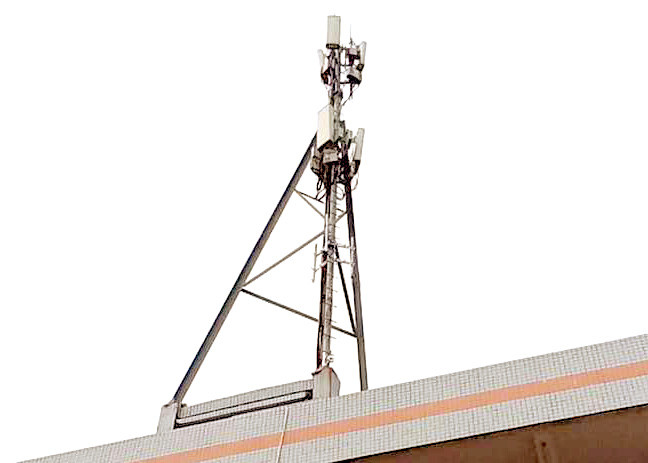

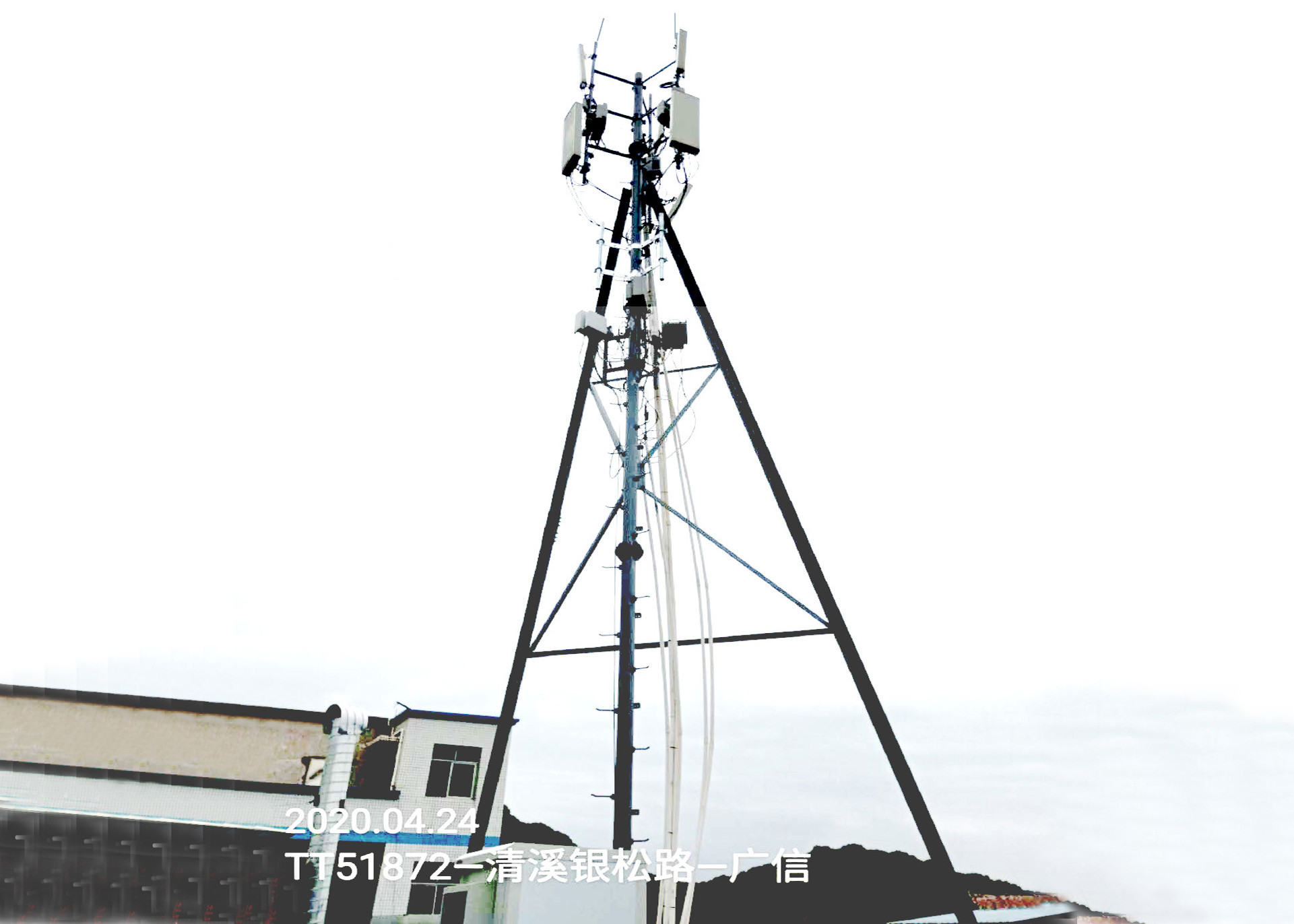

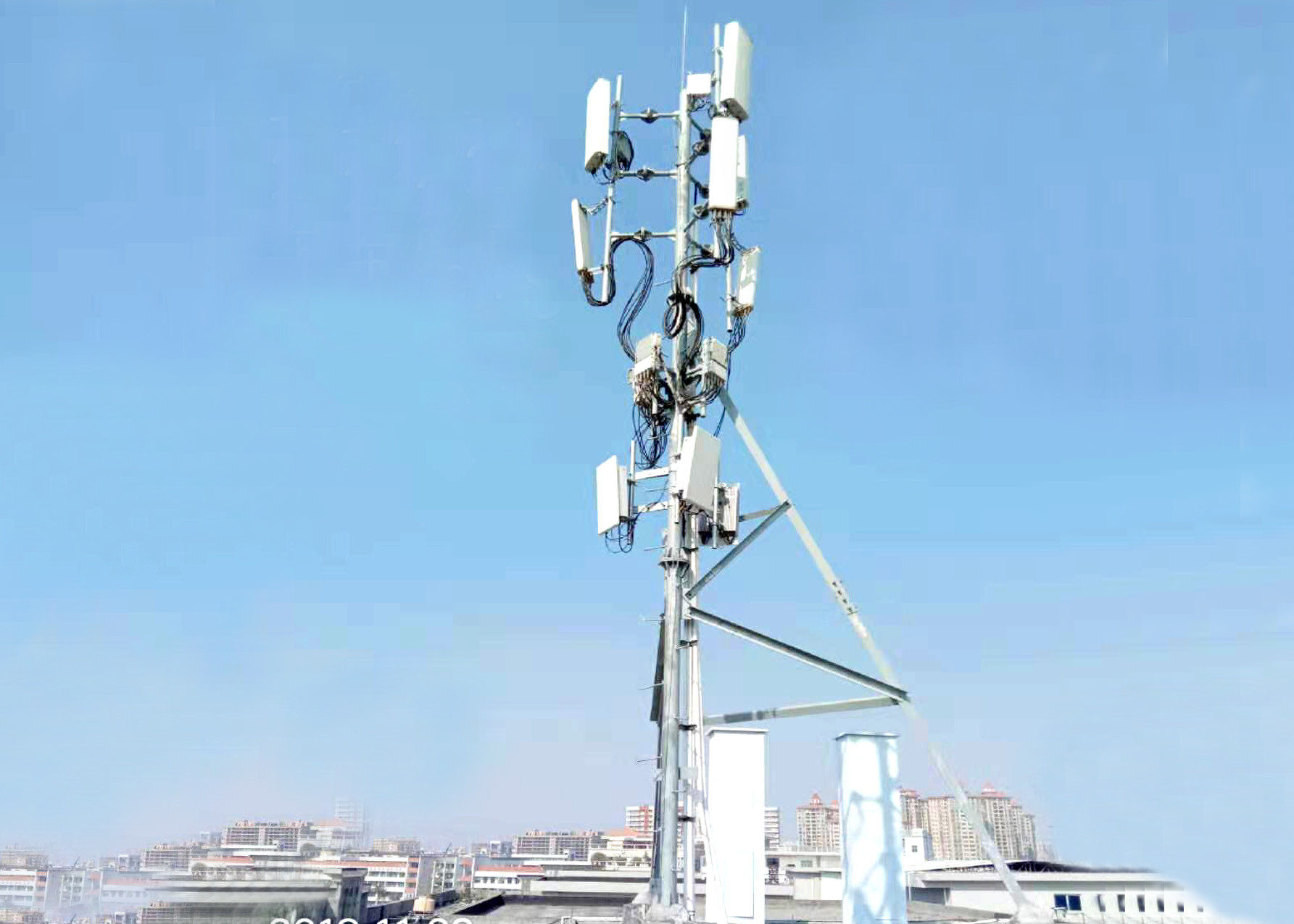

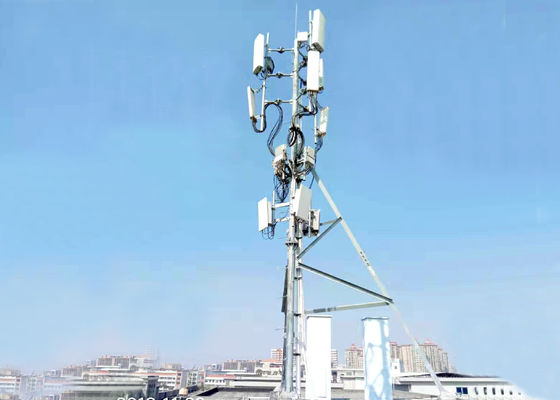

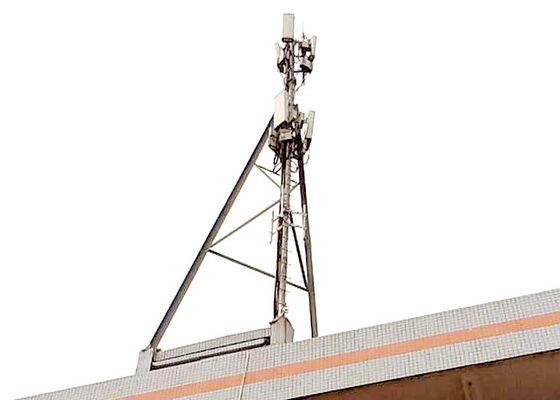

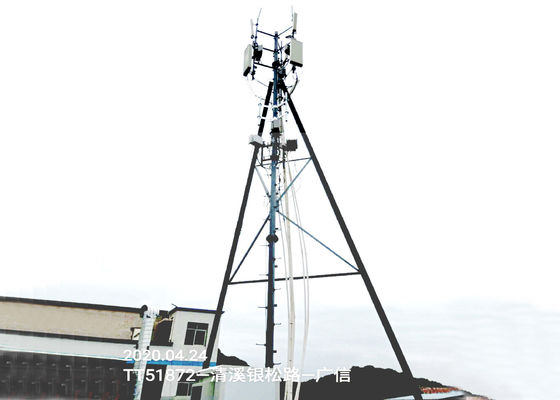

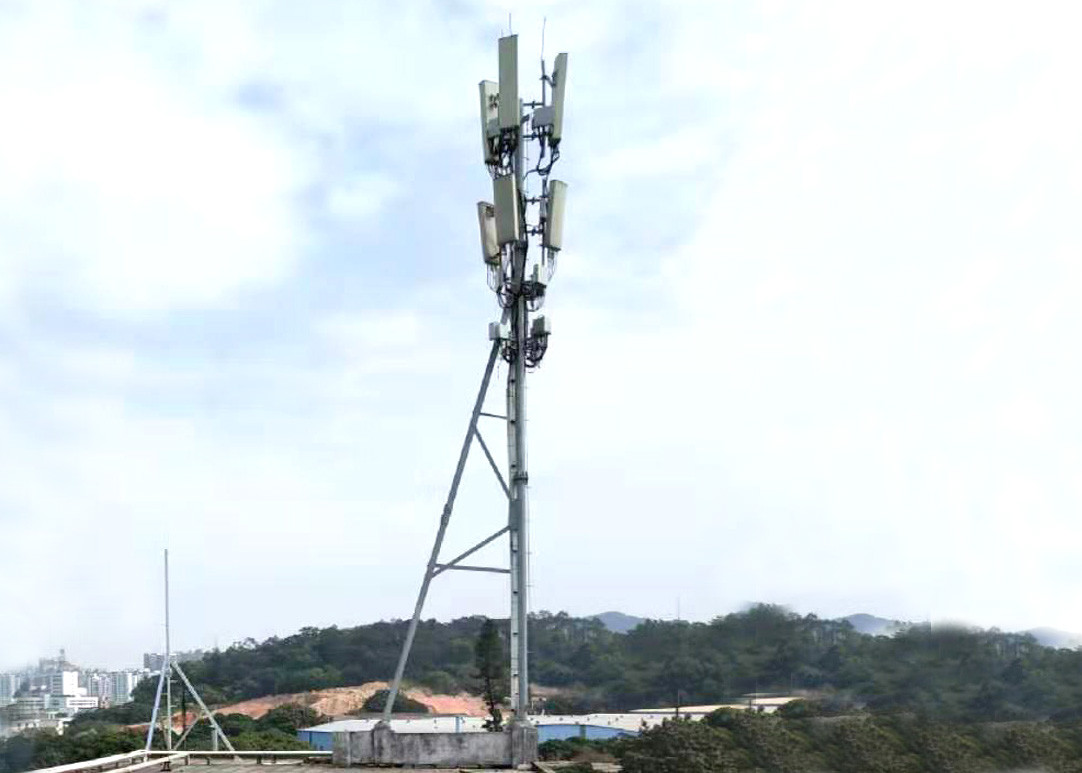

Self Supporting Tripod Rooftop Cell Tower 15m Tv Transmitter Towers
5-15m high Self-supporting Steel Rooftop Communication Antenna Tower with Custom Designs and Fabrication
Tv Transmitter Towers Descriptions
1, Material: galvanized steel pipes, angle steels, steel plates, bolts and nuts
2, Height: 5m to 15m or customized to requirements
3, Type: self-supporting tripod tower
4, Fixation: anchoring bolts
5, Applications: GSM, FM radio, 5G antennas, microwaves, RRUs etc.
| Material | Steel pipe/tubes, Angle steel plates, flat steel plates, bolts and nuts |
| Steel Type | Weldable low carbon structural steel |
| Steel Grade | GB Q235, Q345, BS 4360, ASTM A36 etc. |
| Yield Strength | Fy≥235MPa |
| Tensile Strength | Fu≥400MPa |
| Elongation | σ≥20% |
| Surface Finish | Hot dip galvanization |
| Galvanized layer | T≥65μm |
| Height | 5m to 20m, customized to requests |
| Design | 3 legs self-supporting or free standing lattice tower |
| Structure | 1 to 2 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices. |
| Supply mode | CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down) |
| Fixing/Fastening | Bolts and nuts, connecting plates |
| Configuration | Foundations/anchoring bolts, tower sections, 1-2 platforms (optional), mounting brackets, ladder or steps, anti-fall safety system, lightning rod, earthing plate etc. |
| Wind Load | 0.35-1.0kN/sqm |
| Lifespan | 20-50 years |
| Warranty | 3 years |
| Applications | GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations, TV signal transmission. |
Easy operation and installation rooftop communication tower
Climbable strong self-supporting steel tower
Not only 3-legs tripod tower design but also 4-legs lattice tower design
How long can you deliver?
15-35 days after confirming shop drawings, depending on order quantity.
What’s your advantages comparing with other suppliers?
We have been specializing in this field for more than 10 years since 2009, we have professional engineers and designers, skilled workers, advanced production line equipped with CNC and laser cutting machines, welding machines, shaping machines, test instruments etc., we can produce the poles and towers or other steel frameworks according to customers’ designs, specifications, drawings, requirements. Our quality is very good but price is reasonable and competitive. We’re also providing excellent in-sales and after-sales services. We always provide good quality products and services beyond customers’ expectations.
Can I customize the towers, poles or frameworks?
Yes, we can fabricate the towers, poles, frameworks or other related products according to your drawings, specifications and requirements.
What’s your payment terms?
T/T or irrevocable documentary L/C is accepted for us. The general payment arrangement is 30% down payment before production and full payment before shipping by T/T, or L/C issued before production.
