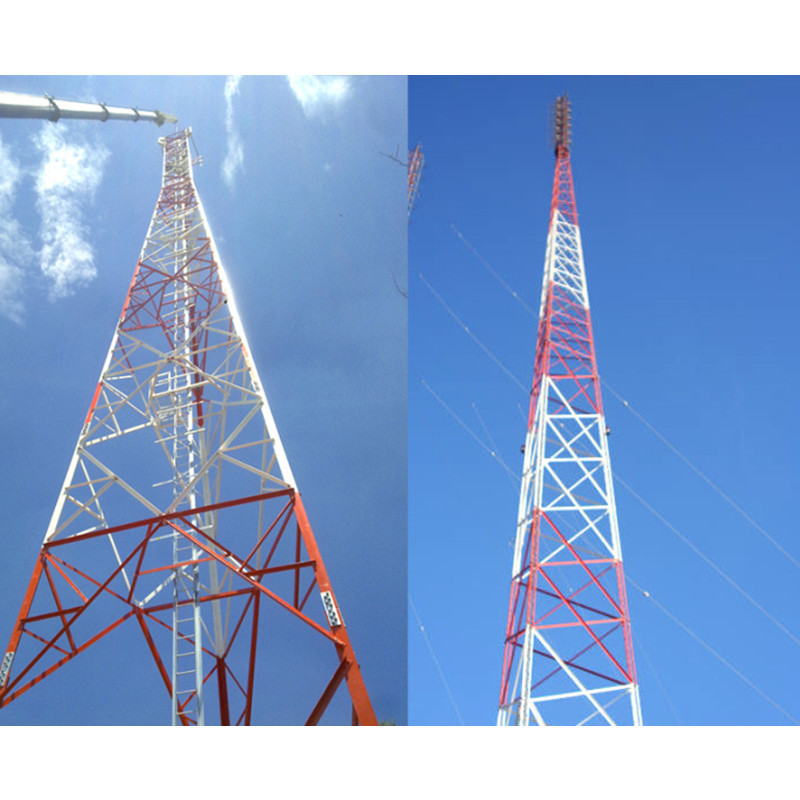

3 Legged Angular Lattice Tower Hot Deep Galvanization Radio Broadcasting
| Place of Origin | Guangzhou |
|---|---|
| Brand Name | Guangxin |
| Certification | ISO9001 |
| Model Number | GX-5678G |
| Minimum Order Quantity | 1set |
| Price | USD1880-2100 |
| Packaging Details | Cotton sheets or cloth package by bundle |
| Delivery Time | 20-30days |
| Payment Terms | Western Union, L/C, T/T |
| Supply Ability | 300ton/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 3 Legged Angular Lattice Tower | Impact Strength KV (J) | 27(20°C)---Q345B(S355JR) |
|---|---|---|---|
| Allowable Deflection | 0.5 ~1.0 Degree @ Operational Speed | Steel Structure | ASTM A572 Gr50 |
| Yield Strength | 355 MPa | Guarantee | 3-5 Years |
| Wind Pressure | 180-220kmph | Delivery Days | 15-25days |
| Lifespan | 50years | Connection Type | Parts For Connection Or Installation Will Be Provided |
| Design Of Pole | Against Earthquake Of 8 Grade | ||
| High Light | 3 Legged Angular Lattice Tower,Hot Deep Galvanization Angular Lattice Tower,Radio Broadcasting Angular Lattice Tower |
||
Product Description
3 Legged Angular Lattice Tower Hot Deep Galvanization Radio Broadcasting
Specification of 3 Legged Angular Tower Accessories:
| Material | Tubular Steel, Angle steel plates, Flat steel plate |
| Steel Type | Weldable low carbon structural steel |
| Steel Grade | GB Q235, Q345, BS 4360, ASTM A36 etc. |
| Yield Strength | Fy≥235MPa |
| Tensile Strength | Fu≥400MPa |
| Elongation | σ≥20% |
| Surface Finish | Hot dip galvanization |
| Galvanized layer | T≥65μm |
| Height | 20m to 100m, customized to requests |
| Design | 4 legs self-supporting or free standing lattice tower |
| Structure | 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices. |
| Supply mode | CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down) |
| Fixing/Fastening | Bolts and nuts, connecting plates |
| Configuration | Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc. |
| Wind Load | 0.35-1.0kN/sqm |
| Lifespan | 20-50 years |
| Warranty | 5 years |
| Applications | GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations. |
Features of 3 Legged Lattice Steel Tower:
1. Material: weldable structural low carbon steel angle plates, flat plates and pipes. Angle steel communication tower is the most common tower type and is generally applied to self-supporting tower. It is easy to install, economical and applicable. It should be the first choice for the construction of iron towers.
2. Tower legs: Chinese steel grade Q345B, which is equivalent to ASTM A572 GR50 or customized to customer's reuqests.
3. Other webs, braces and auxiliary steel: Chinese Q2138B, is equivalent to ASTM A36.
4. Plates: Chinese steel Q345B or Q235B. The steel Lattice tower is subject to wind force and it is prone to swing and horizontal twisting. The base station adopting microwave transmission is used with caution.
5. Bolts: Chinese grade 6.8 and 8.8 or equivalent grades.
6. Dimension and tolerance for angle are according to GB/T1591-1994, similar to EN 10056-1/2
7. Hot dip galvanization in accordance with GB/T 13912-2002, which is equivalent to ASTM A 123 or custom specifications.
8. The welding is done in accordance with AWS D1.1 or CWB standard. The sole management communication steel Lattice tower : The tube tower is a practical and novel iron tower. It has a beautiful exterior appearance, a small footprint, and a high cost performance. It is adopted by a large number of construction units. Disadvantage: The cost is higher than any of the following tower types because It is inconvenient for the tower feeders to lead and personnel to climb. Higher cost
