4 Legged Lattice Telecom Tower 45m Galvanized Steel Pylon Self Support Lattice Mast

Place of Origin CHINA
Certification ISO9001
Model Number SST-1001
Minimum Order Quantity 1 sets
Price USD1.28-1.78 per kilogram
Packaging Details bundles
Delivery Time 20-50 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 1000 tons monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Descriptions Self-support Galvanized Steel Lattice Communication Tower Material Structural Low Carbon Mild Steel
Grade Q235B, Q355B, ASTM A36, A572 Or Equivelant Surface Treatment Hot Dip Galvanization
Design 3 Legs Triangle Or 4 Legs Square Lattice Tower Delivery Condition Knocked Down Prefabricated Independent Parts
Configuration Foundations,Sections, Platforms, Ladder,mounts, Anti-fall Arrest Etc. Lifespan 50 Years
Warrnty 3 Years Delivery Time 20-50 Days, Depending On Quantity
Production Capacity 100-200 Towers Monthly
High Light

4 Legged Lattice Telecom Tower


Lattice Telecom Tower 45m

Leave a Message
Product Description

45m Galvanized Steel Pylon Self-support Lattice Mast 4-legged Lattice Telecom Tower


There are many different types of steel towers such as mono pole, 3-legged triangle lattice tower, 4-legged square lattice tower, all these towers are tapered pole or lattice tower, and straight guyed towers.


Pylon is generally called as power transmission or distribution tower which is used for support medium voltage, high voltage or ultra-high voltage cables, it is a very important infrastructure for the power supply transmission and distribution.


Sometimes we call steel tower or pole by steel mast, including self-support mono poles, lattice towers and guyed towers. According to the applications of the masts, we have communication or telecommunication tower, antenna tower, microwave tower, radio tower, TV tower, power transmission tower, wind turbine tower or other applicable steel tower.

4 Legged Lattice Telecom Tower 45m Galvanized Steel Pylon Self Support Lattice Mast 0

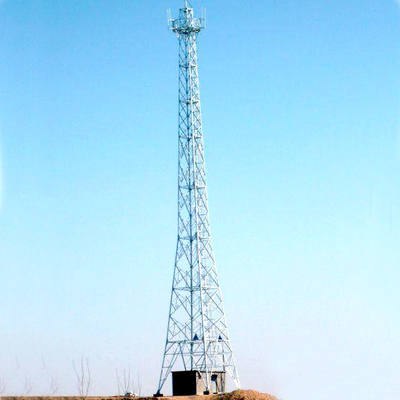

Typical Self-supporting Galvanized Steel Communication Tower

Our Product Range

1, Telecommunication lattice towers
2, Galvanized steel masts and mono poles
3, Power transmission and distribution line towers and poles
4, Artificial tree camouflaged antenna communication towers
5, Street light poles, roadway and highway lighting columns or posts
6, Stadium and sports field lighting towers

7, High mast light poles, smart street light poles.
8, Traffic signal light, surveillance CCTV camera and sign poles, cantilievers and gantry frames
9, Other steel structures


Specifications of Self-supporting Galvanized Steel Tower


Material Angle steel plates, flat steel plate, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure Lattice tower with crossarms and insulators for supporting cable/wires
Supply mode CKD(Complete Knocked Down), all parts are prefabricated for ready assembly
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), corssarms, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications low voltage, medium voltage and high voltage distribution and transmission


Manufacturing Procedures of Telecom Steel Towers

1, Design layout and drawing, set up specifications and sizes.
2, Buy row angle steel plates and flat steel plates as well as galvanized steel bolts, nuts, washers and springs.
3, Measure and cut out sizes and holes.
4, Weld necessary parts (for angle steel towers, the welded parts are footing plates, antenna mounts, lightning rod, ladder etc.)
5, Polish burrs and welding scars to make all members good surface.
6, Assemble tower sections according to drawings, make sure sizes and connecting parts are correct.
7, Pretreament: clean surface corrosion and oil with acid or other chemicals-->clean with water-->dip in cosolvents-->dry-->dip in hot zinc pool for galvanization-->cooling and curing-->clean-->dry
8, Check quality and start packing.

4 Legged Lattice Telecom Tower 45m Galvanized Steel Pylon Self Support Lattice Mast 1

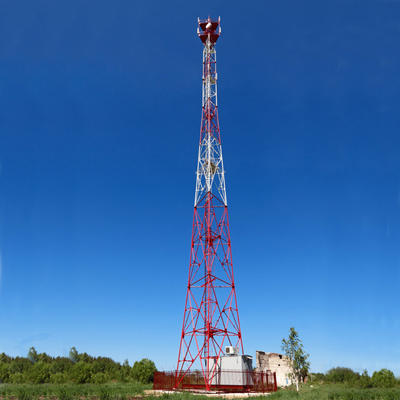

4 legs self-supporting lattice tower erection


Important Notice:


1, All towers are customized to project design specifications, wind speed or load, geological conditions, devices to by mounted on tower etc.

2, Tower design and specifications must be done as per required wind speed, site conditions, devices to be mounted on tower and payload.

3, We can design and specify the towers according to customer's requirements.

4, All towers are finished with hot dip galvanization to have excellent anti-corrosion and surface protection.

5, Sometimes the towers are required for straggered White and Red painting for easy identification or warning of aircrafts.

6, All the towers must be erected on steel framed concrete foundations.

7, Tower foundations are designed and specified according to the tower height, weight, payload, wind speed, terrain conditions etc.

8, The steel towers are not standard product but customized to design requirements.
