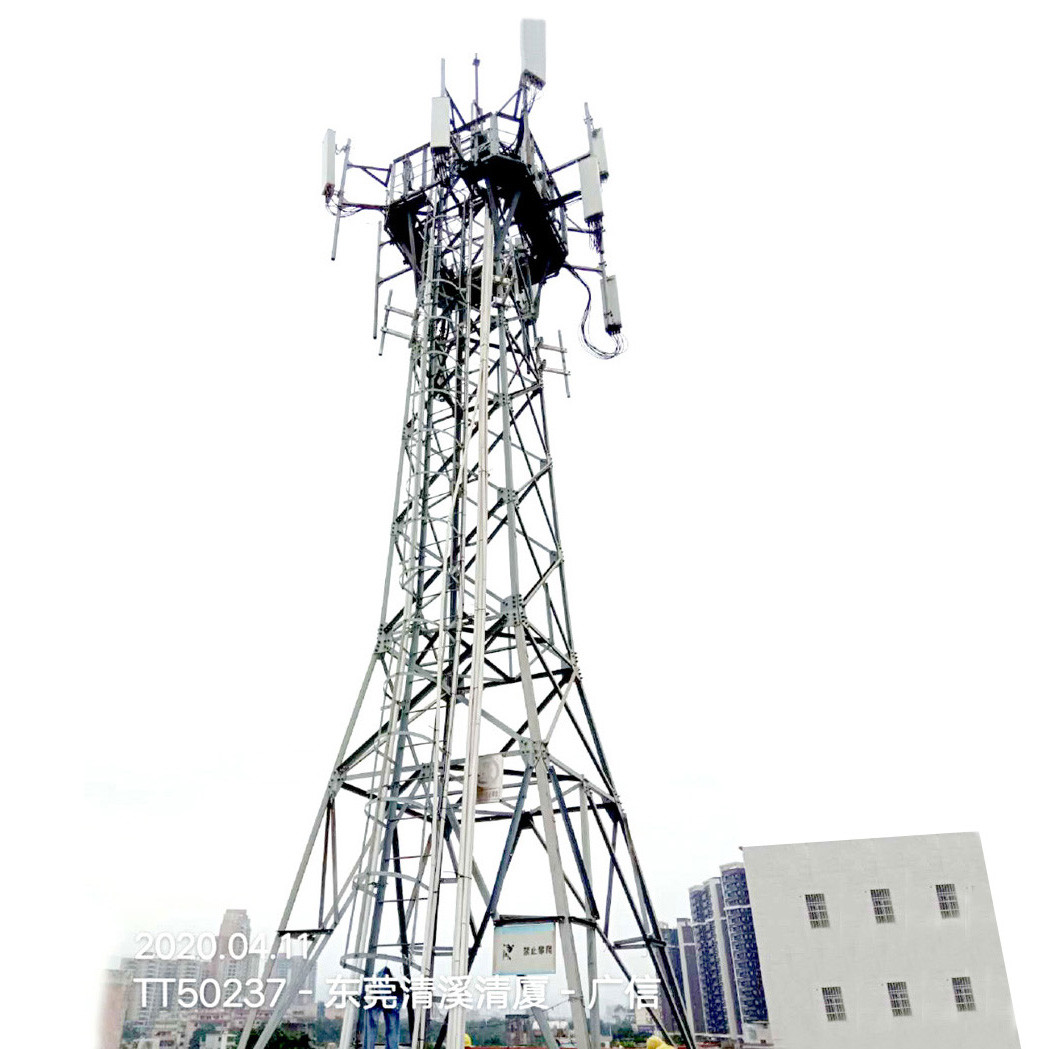

Galvanized Steel Lattice Cell Phone Tower Q235 65m Telecommunication Towers

  • Galvanized Steel Lattice Cell Phone Tower Q235 65m Telecommunication Towers
  • Galvanized Steel Lattice Cell Phone Tower Q235 65m Telecommunication Towers
  • Galvanized Steel Lattice Cell Phone Tower Q235 65m Telecommunication Towers
  • Galvanized Steel Lattice Cell Phone Tower Q235 65m Telecommunication Towers
Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number SST-041
Minimum Order Quantity 1 set
Price USD1998-19998 per set
Packaging Details plastic bubble sheets
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 500 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Lattice Cell Phone Tower Material Weldable Structural Angle Steel Plates
Surface Finish Hot Dip Galvanization Height 30m To 65m Or Customized Height
Material Grade GB Q235, Q345, Q355 Or Specified Grade Yield Strength 235~355MPa
Galvanized Thickness 65~85 Microns Design 1-5 Platforms With Mounting Brackets
Wind Load 0.36-1.0kN/sqm
High Light

Q235 Lattice Cell Phone Tower

,

65m Lattice Cell Phone Tower

,

65m Telecommunication Towers
Leave a Message
Product Description

Galvanized Steel Lattice Cell Phone Tower Q235 65m Telecommunication Towers

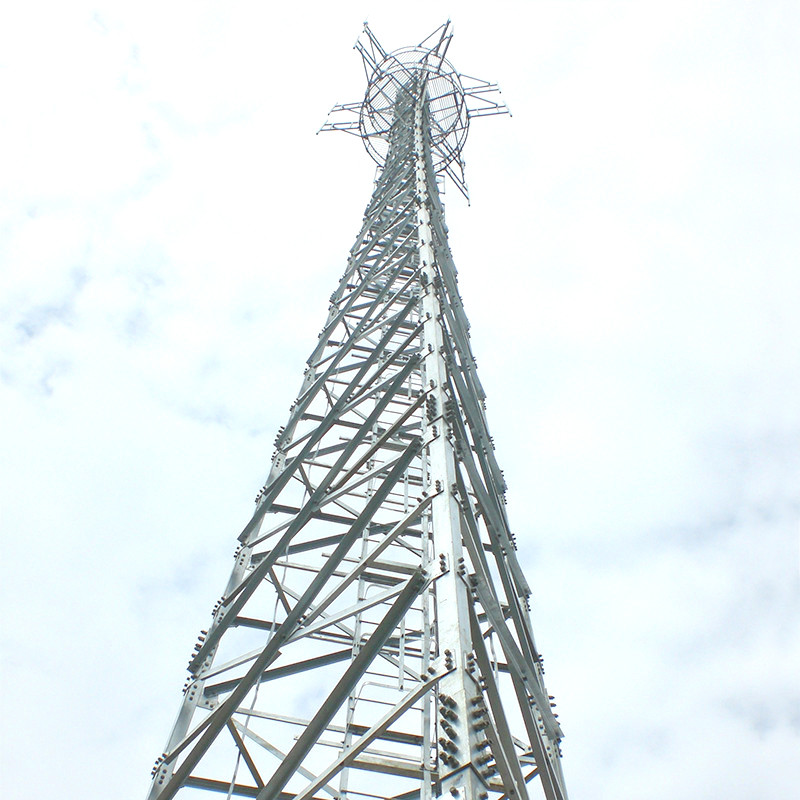

4 Legged Self-Supporting Galvanized Steel Communication Lattice Tower





Lattice Cell Phone Tower:



Self-supporting steel communication tower

4 legged angular lattice tower made up of galvanized steel flat plates and angle steel plates

FM radio transmission tower, GSM 3G, 4G, 5G communication microwave and antenna tower

25m to 80m high mast galvanized steel lattice tower for communication transmission stations

Custom designed and fabricated steel tower for worldwide communication applications.



Material Angle steel plates, flat steel plate, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.



Galvanized Steel Lattice Cell Phone Tower Q235 65m Telecommunication Towers 0

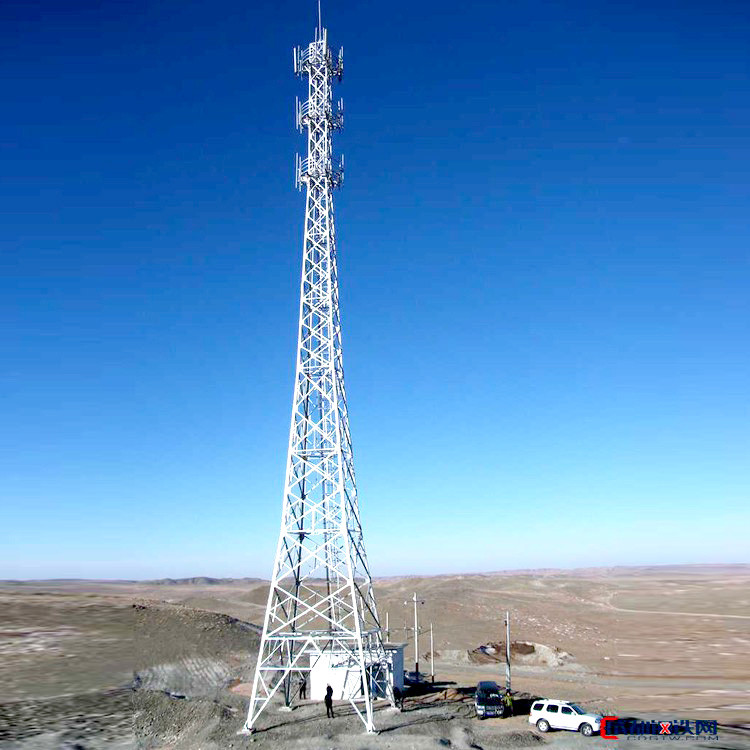

70m High Mast 4-leg Anglular Steel Mobile Communication Tower With 3 Platforms and Antenna Brackets





The structure of 4 legged steel lattice communication tower is generally composed of foundation anchoring bolts (cage frames), sections of tower body, 1 to 5 platforms, mountning brackets, lightning arrest/protection rod, ladder, earthing plates, anti-fall safety system (cage structure) and fasteners (such as clamps, clips, bolts and nuts etc.). The design, structure and height of telecommunication towers can be customized according to requirements and drawings.



Galvanized Steel Lattice Cell Phone Tower Q235 65m Telecommunication Towers 1

Rooftop Steel Tower



The rooftop steel tower is a small size tower for communication microcell station for enlarging the telecommunication signal coverage in the communities. It is typically designed as bipod or tripod tower mounted on the roof top, the height of rooftop towers is generally 5m to 15m. The rooftop tower is composed of a main pole which is made from tubular steel pipe and some angle steel or flat steel plates as bracings, connected by flanges, bolts and nuts. A foundation with anchoring bolts is also required for fixing the tower. Sometimes the rooftop tower is designed as wire guyed tower to make it with higher wind load.
