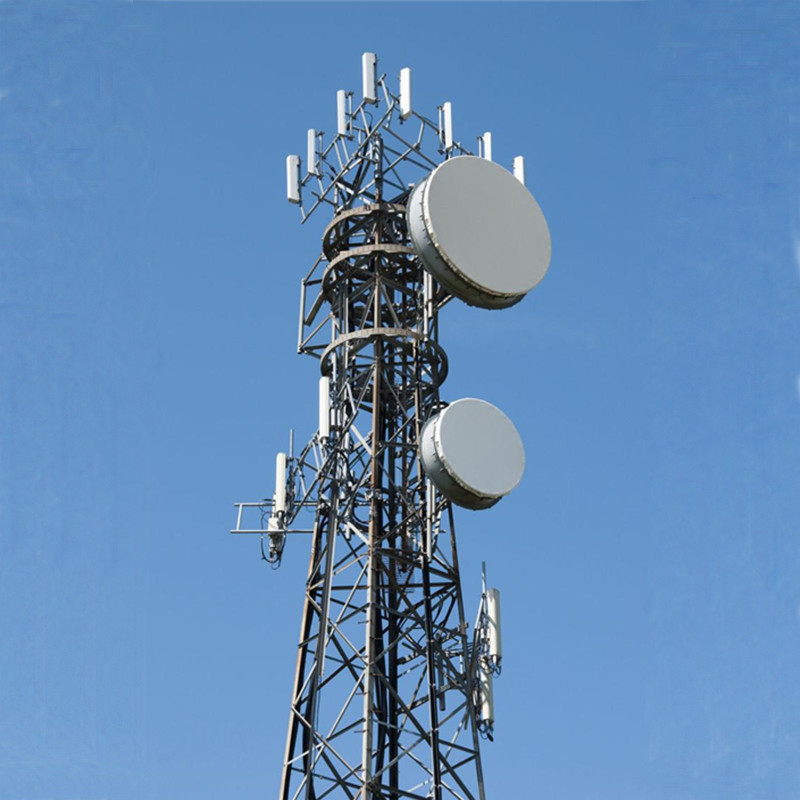

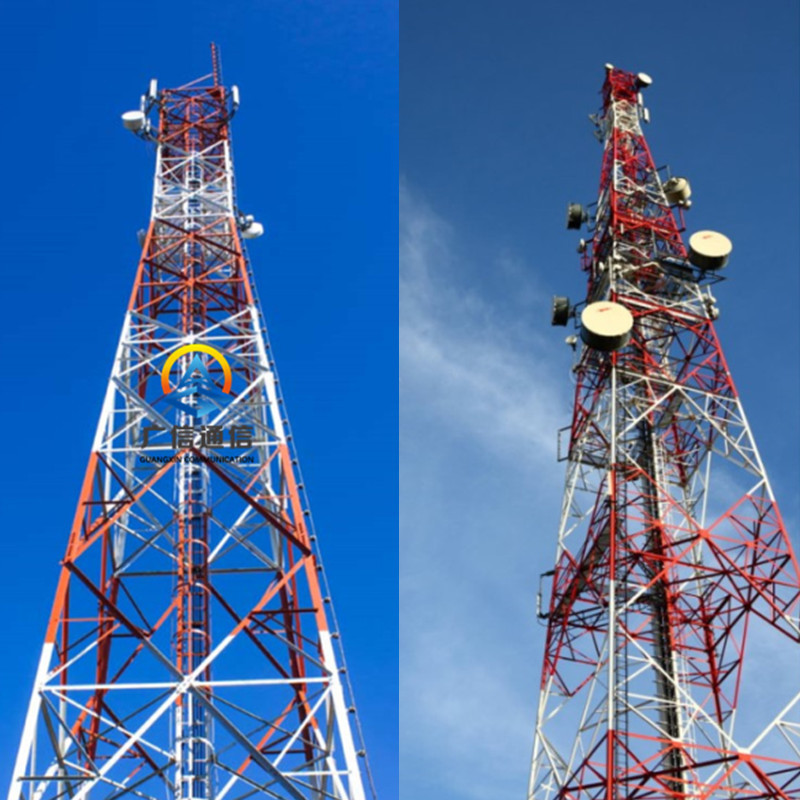

BS 4360 30m 5G Cell Phone Tower Telecommunication Microwave Antenna

  • BS 4360 30m 5G Cell Phone Tower Telecommunication Microwave Antenna
  • BS 4360 30m 5G Cell Phone Tower Telecommunication Microwave Antenna
Place of Origin Guangzhou
Brand Name Guangxin
Model Number GX-5670G
Minimum Order Quantity 1set
Price USD1880-2100
Packaging Details Cotton sheets or cloth package by bundle
Delivery Time 20-30days
Payment Terms Western Union, L/C, T/T
Supply Ability 300ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification ISO9001:2008 SGS COC Product Name 30m 5G Cell Phone Tower Telecommunication Microwave Antenna
Steel Structure HDG Lattice Steel Tower Allowable Deflection 0.5 ~1.0 Degree @ Operational Speed
Galvanization Standard Of Steel Sections ISO 1461 Or ASTM A123 Design Loading As Per Requirement And Specification By Clients Worldwide
Impact Strength KV (J) 27(20°C)---Q345B(S355JR) Bolts And Nuts Mainly ISO 898 Grade 6.8 And 8.8 Bolts
Design Of Pole Against Earthquake Of 8 Grade Grade Of Bolts And Nuts Grade 4.8, 6.8, 8.8
Maximum Production Capacity 20,000 TON Per Annum
High Light

Microwave Antenna 5G Cell Phone Tower

,

BS 4360 Cell Phone Tower
Leave a Message
Product Description

30m 5G Cell Phone Tower Telecommunication Microwave Antenna







Specification of 5G Cell Phone Tower Accessories:



Material Tubular Steel, Angle steel plates, Flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.






Tower Accessories:



1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint which include Primer, International Orange/Red and Ivory White


2. Aviation Light: 48V/220V Double Light and Single Light & Solar Light


3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients.


4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients.


5. ACDB as per specified by clients


6. Fencing: Palisade fence and wire mesh fence with razor wires and gate.


7. Fall arrest system: GB and CE certificate fall arrest system.


8. Optical Fiber Cable: as per specified by client


9. Generator: as per specified by client


10. Canopy and Generator Cage: as per specified by clients



What is the Antenna lattice tower?



5G Cell Phone Antenna Tower is a kind of signal transmission tower, also called signal transmission tower or signal tower, main function support signal, support for signal transmission antenna, used for mobile, Unicom, telecommunication, traffic satellite positioning system (GPS) and other communications departments.
