Galvanized Steel Lattice Steel Towers Masts ASTM 572 Color Powder Coating
| Place of Origin | China |
|---|---|
| Brand Name | GUANGXIN |
| Certification | ISO9001 |
| Model Number | SST-442 |
| Minimum Order Quantity | 1 set |
| Price | USD5,000 to USD50,000 per set |
| Packaging Details | pallet |
| Delivery Time | 20-60 days subject to order quantity |
| Payment Terms | T/T, L/C, Western Union, MoneyGram |
| Supply Ability | 100 sets monthly |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Low Carbon Structural Mild Steel | Steel Grade | Q235B, Q345B, ASTM 572, A36 Etc. |
|---|---|---|---|
| Basic Surface Finish | Hot Dip Galvanization | Additional Surface Finish | Color Powder Coating Or Painting |
| Yield Strength | Not Less Than 235MPa | Wind Load | 0.35~1kN/m² |
| Wind Speed | 50-360km Per Hour | Design Lifespan | 50 Years |
| Warranty | 3 Years | Delivery Time | 20-60 Days, Depending On Order Quantity |
| Origin | Guangzhou, China | Loading Port | Nansha, Guangzhou Or Shekou Shenzhen |
| High Light | Galvanized Steel Lattice Steel Towers,ASTM 572 Lattice Steel Towers,Lattice Steel Towers Color Powder Coating |
||
Product Description
Galvanized Steel Lattice Masts and Communication Towers
Self-support Galvanized Steel lattice masts and communications towers
4 or 3 Legs Self-support Galvanized Steel Lattice Mast or Tower
Self-supporting Galvanized Steel Telecommunication Tower
Comuunications tower, wind turbine tower, power transmission tower, pylon, mast, lattice tower
Custom Designed and Prefabricated CKD Delivered towers and masts
Chinese Leading Supplier of All kinds of galvanized steel Lattice masts, towers and mono poles
Guangzhou Guangxin Communication Equipment Co., Ltd. was founded in 2009, starting as an OEM and ODM manufactory for CHINA TOWER CORPERATION which is the largest design and supplier of communication towers and other applicable towers in China. After more than 10 years of fast growing and research, we have become one of leading manufacturers of all kinds of steel towers and poles in China.
Our Product Range
1, Galvanized steel Telecommunication lattice towers
2, Wind turbine towers, lattice masts and poles
3, Power transmission and distribution line towers and poles, pylons.
4, Artificial tree or fiberglass grille shroud camouflaged antenna towers
5, Street light poles, roadway and highway lighting towers, columns or posts
6, High mast stadium and sports field lighting poles
7, Traffic signal light, surveillance CCTV camera and sign poles, cantilevers and gantry frames
8, Other steel structures

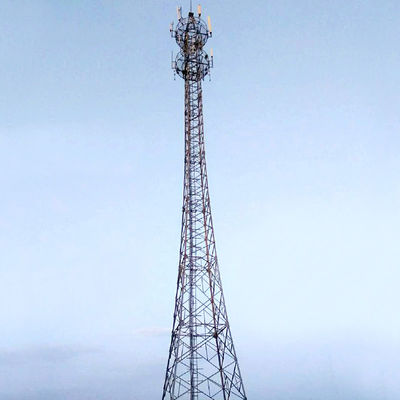

Communication tower with 2 work platforms for mounting 12 antennas and RRU's
Category of Galvanized Steel Towers and Masts:
1, Four legs lattice tower: made of angular steel plates or tubular steel pipes or both
2, Three legs lattice tower: made of angular steel plates or tubular steel pipes or both
3, Bipod and Tripod: steel tube as main pole and angle plates as diagonal supports
4, Mono pole
5, Green field mounted towers
6, Rooftop mounted towers.
7, Artificial palm or pine tree monopole for camouflaged antenna towers
8, Monopole towers with cylindrical fiberglass grille shroud or cover for camouflaged antenna towers.
Technical Specifications
| Product Name | 3 or 4 legs self-supporting Galvanized Steel lattice mast and tower |
| Material | Structural and weldable low carbon mild steel with hot dip galvanized finish |
| Place of Origin | Guangzhou, China |
| Material grade and properties |
Main structure: GB Q345B or ASTM A572 , Yield Strength ≥ 345 N/mm² (or MPa); Horizontal and diagonal braces: Q235B or A36 , Yield Strength ≥ 235 N/mm². Specified material is acceptable. |
| Material type | steel tubes or pipes, angular plates, flat plates, steel rods or steel bars etc. |
| Tower Type | 3 or 4 legs, self-supporting and free standing, lattice tower or mast |
| Tower Height | 15m to 120m, customized to design requirements |
| Wind Load | 0.35-1 kN/m² (wind speed 50m/s to 100m/s) |
| Connection | Bolts and nuts |
| Surface finish | Hot Dip Galvanization (optional plus painting) |
| Zinc Coating thickness | 45μm-110μm |
| Design | ||
| 1. Design Code | TIA/EIA-222-G/F | |
| Structural Steel Applied | ||
| 2. Steel Grade | Mild Steel | High Strength Steel |
| GB/T 700: Q235B, Q235C,Q235D | GB/T1591:Q345B, Q345C,Q3455D | |
| ASTM A36 | ASTM A572 Gr50 | |
| EN10025: S235JR, S235J0,S235J2 | EN10025: S355JR, S355J0,S355J2 | |
| 3. Design Wind Speed | Up to 250 km/h as per design requirements | |
| 4. Allowable deflection | 0.5 ~1.0 degree @ operational speed | |
| 5. Tension strength (Mpa) | 360~510 | 470~630 |
| 6. Yield strength (t≤16mm) (Mpa) | 235 | 355 |
| 7. Elongation (%) | 20 | 24 |
| 8. Impact strength KV (J) | 27(20°C)---Q235B(S235JR) | 27(20°C)---Q345B(S355JR) |
| 27(0°C)---Q235C(S235J0) | 27(0°C)---Q345C(S355J0) | |
| 27(-20°C)---Q235D(S235J2) | 27(-20°C)---Q345D(S355J2) | |
| Bolts & Nuts | ||
| 9. Grade | Grade 4.8, 6.8, 8.8 | |
| 10. Standards for mechanical properties | ||
| 10.1 Bolts | ISO 898-1 | |
| 10.2 Nuts | ISO 898-2 | |
| 10.3 Washers | ISO 6507-1 | |
| 11. Standards for Dimensions | ||
| 11.1 Bolts | DIN7990, DIN931, DIN933 | |
| 11.2 Nuts | ISO4032, ISO4034 | |
| 11.3 Washers | DIN7989, DIN127B, ISO7091 | |
| Welding | ||
| 12. Method | CO2 Shielded Arc Welding & Submerged Arc Welding(SAW) | |
| 13. Standard | AWS D1.1 | |
| Marking | ||
| 14. Method of marking of the members | Hydraulic Press Stamping | |
| Galvanizing | ||
| 15. Galvanization standard of steel sections | ISO 1461 or ASTM A123 | |
| 16. Galvanization standard of bolts and nuts | ISO 1461 or ASTM A153 | |
| Test | ||
| 17. Factory test | Tensile test,Elements analysis, Sharpy test(impact test), Cold Bending, Preece test,Hammer test |
|
| Capacity | ||
| 18. Maximum Production Capacity | 50,000 TON per annum | |
Descriptions
1. Delivery condition: CKD (completely knocked down) components and parts which are prefabricated for ready installation.
2. Tower structure: steel framed concrete foundations, tower sections, rest platforms and work platforms, clambing ladder, anti-fall arrest, mounting brackets, lightning rod, earthing leads, cable tray etc.
3. Applications: radio communication, wireless communication, mobile telecommunication, TV, military watch, wind tubine, power transmission and distribution etc.

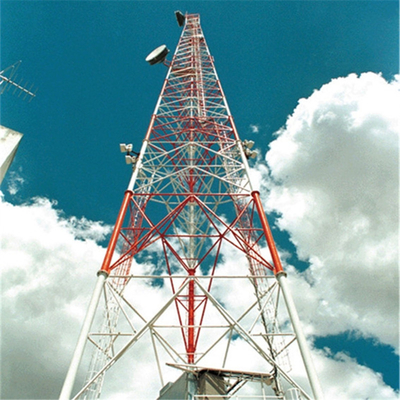

4-legs Galvanized Steel Microwave Radio Tower
Questions and Answers:
1, Can I customize the towers, poles or other steel structures?
Yes, we can fabricate the towers, poles, building structures and other related products according to your designs, drawings, specifications and requirements.
2, What's your payment terms?
T/T or irrevocable documentary L/C at sight is accepted for us. The general payment arrangement is 30% advance before production and full payment before shipping by T/T, or L/C issued before production.
4, Can you guarantee the quality?
Yes. The design lifespan of our towers and poles is 50 years
5, Are you exporting to other countries and regions?
Yes, we have exported to many other countries and regions such as USA, Brazil, Chile, Saudi Arabia, Malaysia, Philippines, Macau and many more.
6, What is your delivery time?
20-60 days, depending on the order quantity.
7, How many is the MOQ?
1 set.
8, Where is your factory located?
Tanbu Town, Huadu District, Guangzhou City which is the 3rd largest city in China and the largest city in Southern China, near by Hongkong, Macau and Shenzhen.
Our Partners:
CHINA TOWER, CHINA MOBILE, CHINA TELECOM, CHINA UNION, HUAWEI, NIUSKY, DITO etc.
Manufacturing and service experience: more than 12 years
Certifications: ISO9001:2009, ISO14001, ISO45001, HI-TECH ENTERPRISE, ENGINEERING CONTRACTOR CLASS 3, AAA CREDIT etc.
