Commercial Outdoor Lighting Poles Fixtures Hot Dip Galvanization

Place of Origin Guangzhou, China
Certification ISO9001
Model Number GX-1325
Minimum Order Quantity 100pcs
Price USD40-80 per piece
Packaging Details air bubble sheet package
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 2000 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Name Commercial Outdoor Lighting Poles Exterior Outdoor Light Pole Fixtures Feature Weldable Structural Carbon Steel Plates Or Pipes
Surface Finish Hot Dip Galvanization Plus Powder Coating(optional) Galvanization Standard ISO 1461 2009, ASTM A123
Welding Method CO2 Shielded Arc Welding & Submerged Arc Welding(SAW) Pole Shape Conical, Tapered, Octangular, Polygonal, Round Etc.
Arms 1 Arms Or 2 Arms Or ODM Transportation By Sea To Clients Destination Port
Packages Packing With Plastic Paper Or According To Client’s Requirement Production Process Raw Material Test-cutting-bending-welding-dimension Verify-flange Welding-hole Drilling-sample Assemble-surface Clean-galvanization Or Power Coating /painting-recalibration-packages
High Light

Commercial Outdoor Lighting Poles


Hot Dip Galvanization Outdoor Lighting Poles


ASTM A123 Exterior Lighting Poles

Leave a Message
Product Description

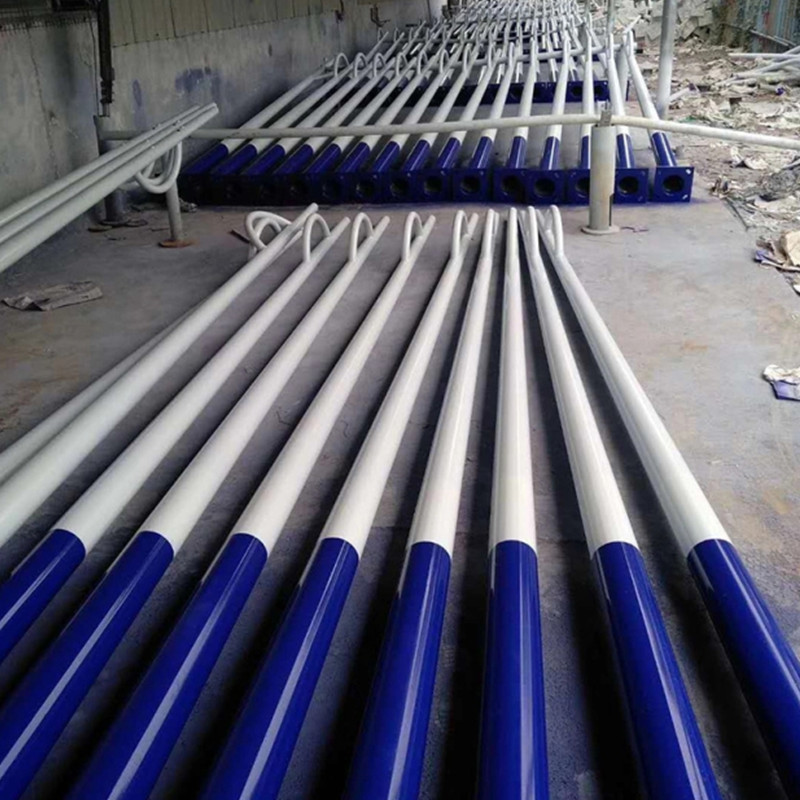

Commercial Outdoor Lighting Poles Exterior Outdoor Light Pole Fixtures





Descriptions Steel poles for mounting lights, CCTV camera, guideboards, billboards etc. Double Arm Street Light Pole
Material Low carbon weldable structural steel
Grade GB Q235, Q345, BS4360, ASTM A36 etc.
Yield Strength 235-355MPa
Height 5m to 12m or other specified height
Thickness 4mm to 15mm, depending on height of pole.
Pole Shape Conical/tapered, straight round/cylindrical, square or rectangular, polygonal etc.
Diameter or Dimensions Subject to height of pole and required mechanical properties.
Design Single, dual or multiple straight or curved arms and brackets
Surface Finish Hot dip galvanization plus powder or PVDF coating (optional)
Galvanization 65-100 Microns
Coating 35-80 Microns
Color Silver, grey, black, white, blue, yellow etc.
Applications Roadways, streets, highways, stadiums, public sqaures, airports, railway stations, communities, parking lots, gardens etc.


Single arm Street Light Pole Hot-DIP Galvanized Aluminum Steel LED Solar Street Lights Pole design

Application: The shape design of this outdoor LED light pole use of sleek metal structures and sharp lines, combine usefully with modern style environments,it’s an ideal choice to lighten entrances, walkways,street, plaza,square and commercial areas
Anchor Bolts: Fabricated from galvanized steel Q235B ,Bolts are provided with four foundation bolts which have an "L" bend on lower end and one flat washers.The top of bolts have an square locating plate.
Finish: The standard finish for the aluminum alloy light pole includes satin brush clear anodized and powder coated.Additional finish options are available according to customers"request. Please consult suppliers for special finishing .
Advantages: The density of aluminum is 2.7g/cm3, it is 1/3 of the steel, so the aluminum is much lighter than steel. • Easily machining(Drill, Cut, Mill Punch, Bend, Weld, etc). • Stable Chemical performance, recycle, aluminum is a green metal which is friendly to the environment. • Excellent corrosion resistance. • Excellent performance on surface finishing. • The melting temperature of aluminum is lower than steel and low cost for recycling to all of the world’s energy-saving emission reduction.



Q1. Can I have a sample order for String lights?

A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

A: Sample needs 10 working days, mass production time needs about 30days ,which base on the order quantity.

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2 years warranty to our products.
