Self Supporting Steel Lattice Telecom Antenna Tower 1.0kN/sqm Wind Load

Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number GX-5209
Minimum Order Quantity 1 set
Price USD1998-19998 per set
Packaging Details plastic bubble sheets
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 1000 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Self Supporting Steel Lattice Telecom Antenna Tower Material Weldable Structural Angle Steel Plates Or Pipes
Surface Finish Hot Dip Galvanization And Power Coating Height 30m To 50m Or Customized Height
Material Grade GB Q235, Q345, Q355 Or Specified Grade Yield Strength 235~355MPa
Galvanized Thickness 65~85 Microns Design 1-4 Platforms With Mounting Brackets
Wind Load 0.36-1.0kN/sqm
High Light

Self Supporting Lattice Antenna Tower

,

Hot Dip Galvanization Lattice Steel Towers

,

4 Legged Steel Lattice Tower

Leave a Message
Product Description

Self Supporting Steel Lattice Telecom Antenna Tower



Telecommunication steel tower is the most popular tower for communication or power transmission and distribution applications. It’s generally designed for 3 legs or 4 legs, composed of galvanized tubular steel pipes and angular steel plates by welding and fastening with bolts and nuts. With height of 35m to 100m, the steel lattice towers are widely used for mounting communication macrocell stations and power transmission or distribution wires or cables.



4 legged self-support steel lattice tower is generally made of angular steel plates and flat steel plates. The 4-leg lattice tower is generally divided into several sections and the sections are connected by flat connecting plates with bolts and nuts. Each tower section is made of angle steelt plates and flat plates. All the steel plates are prefabricated with cutout, holes and hot dip galvanization.



Application: telecom signal transmmision.



Specifications of 4 Legged Angular Steel Lattice Tower



Material Angle steel plates, flat steel plate, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.



Self Supporting Steel Lattice Telecom Antenna Tower 1.0kN/sqm Wind Load 0

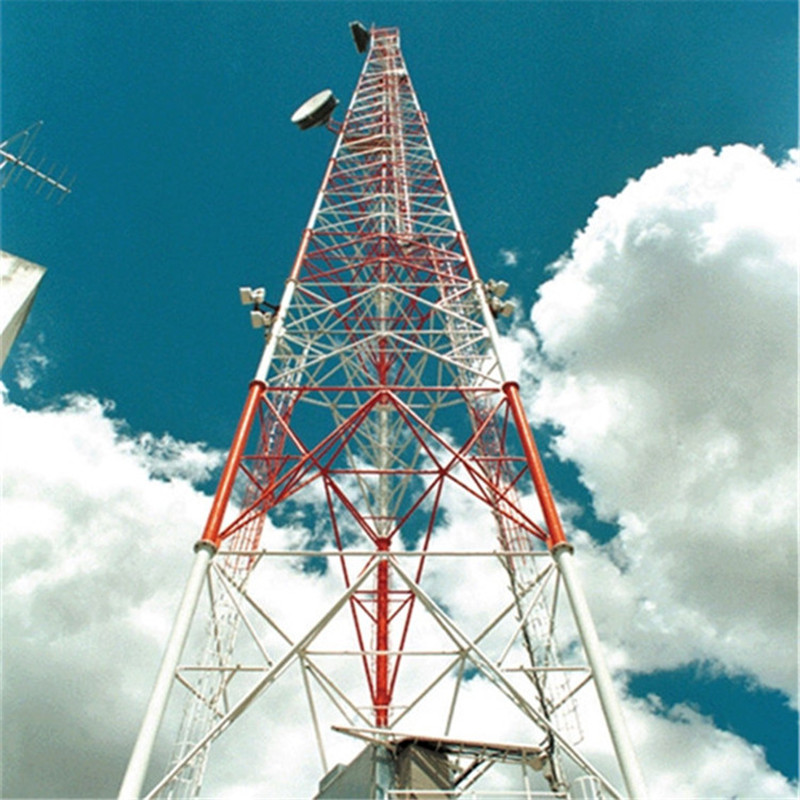

70m High Mast 4-leg Anglular Steel Mobile Communication Tower With 3 Platforms and Antenna Brackets





The structure of 4 legged steel lattice communication tower is generally composed of foundation anchoring bolts (cage frames), sections of tower body, 1 to 5 platforms, mountning brackets, lightning arrest/protection rod, ladder, earthing plates, anti-fall safety system (cage structure) and fasteners (such as clamps, clips, bolts and nuts etc.). The design, structure and height of telecommunication towers can be customized according to requirements and drawings.
