100 Feet Mobile Telecom Lattice Steel Towers Yield Strength 235MPa
Place of Origin | China |
---|---|
Brand Name | GUANGXIN |
Certification | ISO9001 |
Model Number | SST-4100 |
Minimum Order Quantity | 1 set |
Price | USD5,000 to USD50,000 per set |
Packaging Details | pallet |
Delivery Time | 20-60 days subject to order quantity |
Payment Terms | T/T, L/C, Western Union, MoneyGram |
Supply Ability | 100 sets monthly |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | Low Carbon Structural Mild Steel | Steel Grade | Q235B, Q345B, ASTM 572, A36 Etc. |
---|---|---|---|
Basic Surface Finish | Hot Dip Galvanization | Additional Surface Finish | Color Powder Coating Or Painting |
Yield Strength | Not Less Than 235MPa | Wind Load | 0.35~1kN/m² |
Wind Speed | 50-360km Per Hour | Design Lifespan | 50 Years |
Warranty | 3 Years | Delivery Time | 20-60 Days, Depending On Order Quantity |
Origin | Guangzhou, China | Loading Port | Nansha, Guangzhou Or Shekou Shenzhen |
High Light | Telecom Lattice Steel Towers,100 Feet Lattice Steel Towers,235MPa Lattice Steel Towers |

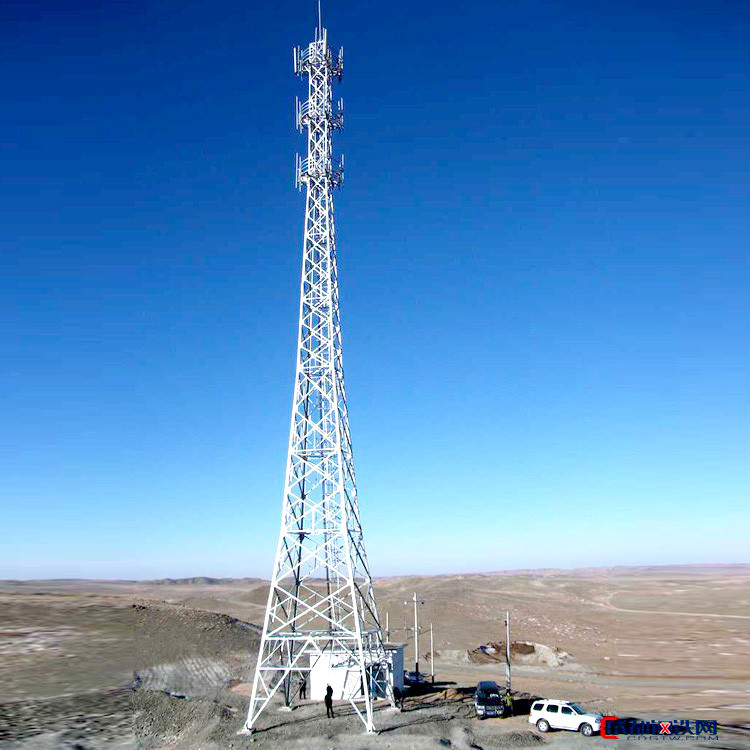

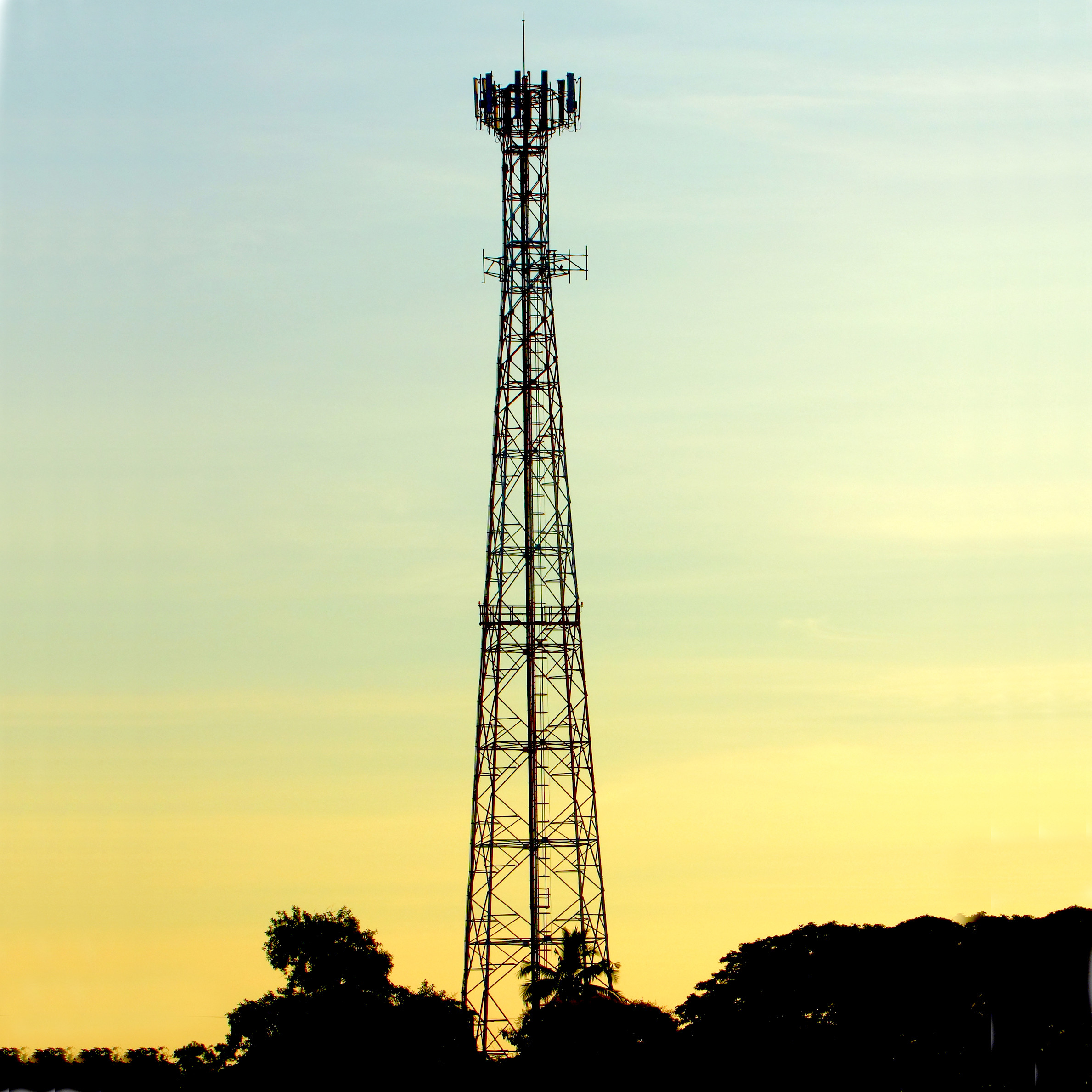

100 Feet Ground Field Mounted Steel Mobile Telecom Lattice Tower
42m Customized and Prefabricated Microwave Radio and Communication Tower
Self-supporting Galvanized Steel Telecommunication Tower
4-legged Ground Field Mounted Free Standing Telecom Steel Lattice Tower
Custom Designed and Prefabricated CKD Delivered Heavy Duty Steel Mobile GSM and 5G Antenna Tower
About Us
A Chinese Leading Supplier of All kinds of galvanized steel masts, lattice towers and mono poles
Guangzhou Guangxin Communication Equipment Co., Ltd. was founded in 2009, starting as an OEM and ODM manufactory for CHINA TOWER CORPERATION which is the largest design and supplier of communication towers and other applicable towers in China. After more than 10 years of fast growing and research, we have become one of leading manufacturers of all kinds of steel towers and poles in China.
With more than 10 years of experience in manufacturing and services, skilled workers and advanced equipment, we're professional OEM and ODM factory of telecom towers and masts, power transmission and distribution towers and poles, street light poles, smart lighting poles, roadway and highway lighting posts, sports and stadium lighting towers, traffic signal lights, CCTV surveillance cameras, direction signs poles, cantilevers and gantry frames and other steel structures.
Our Product Range
1, Telecommunication lattice towers
2, Galvanized steel masts and poles
3, Power transmission and distribution line towers and poles
4, Artificial tree camouflaged antenna towers
5, Street light poles, roadway and highway lighting columns or posts
6, Stadium and sports field lighting towers
7, Traffic signal light, surveillance CCTV camera and sign poles, cantilievers and gantry frames
8, Other steel structures
35m Steel Tower for 5G microcell Signal Transmission Station
Category of Galvanized Steel Communication Towers and Masts
1, Four legs lattice tower: made of angular steel plates or tubular steel tubes or pipes or both
2, Thress legs lattice tower: made of angular steel plates or tubular steel tubes or pipes or both
3, Bipod and Tripod: steel tube as main post and angle plates as diagonal supports
4, Mono pole
5, Ground field towers
6, Rooftop towers
Description & Specifications
Product Name | Galvanized Angle Steel Telecommunication Tower, self-supporting lattice tower and mast |
Material | Structural and weldable mild steel (low carbon steel) |
Material grade and properties | GB Q345B or ASTM A572 for main structure , Yield Strength ≥ 345 MPa GB Q235B or ASTMA36 for horizontal and diagonal braces, Yield Strength ≥ 235MPa Specified material is acceptable. |
Surface Finish | Hot dip galvanized |
Zinc Coating Thickness | 65μm-110μm |
Additional Surface Finish | White and Red Powder coating or painting (optional) |
Tower type | 4 legs, self-supporting and free standing, lattice tower |
Tower Height | 15m to 150m, customized to design requirements |
Wind Load | 0.35-1 kN/m² |
Wind Speed | 10-80m/s |
Connection/Assembly | Anchor Bolts and nuts |
Structure | Steel framed concrete foundations & pedestals, tower sections, work and rest platforms, lightning rod, clambing ladder, cable tray or ladder, mounting brackets, earthing leads etc. |
Applications | microcell and macrocell mobile communication stations, 5G, GSM, RRU, CDMA mobile phone signal transimssion and Microwave, Radio antenna support etc. wind turbines, solar panels, power transmission and distribution etc. |
Design Lifespan | 50 years |
Warranty | 3 years |
Delivery Time | 20-60 days, depending on order quantity |
MOQ | 1 set |
Delivery Condition/Mode | CKD (completely knocked down) components and parts |
Prefabricated Angle steel tower components and parts
Important Notice:
1, Can I customize the towers, poles or other steel structures?
Yes, we can fabricate the towers, poles, building structures and other related products according to your designs, drawings, specifications and requirements.
2, What's your payment terms?
T/T or irrevocable documentary L/C at sight is accepted for us. The general payment arrangement is 30% down payment before production and full payment before shipping by T/T, or L/C issued before production.
4, Can you guarantee the quality?
Yes. The design lifespan of our towers and poles is 50 years
5, Are you exporting to other countries and regions?
Yes, we have exported to many other countries and regions such as USA, Brazil, Chile, Saudi Arabia, Malaysia, Philippines, Macau and many more.
6, What is your delivery time?
20-60 days, depending on the order quantity.
7, How many is the MOQ?
1 set.
8, Where is your factory located?
Tanbu Town, Huadu District, Guangzhou City which is the 3rd largest city in China and the largest city in Southern China, near by Hongkong, Macau and Shenzhen.
